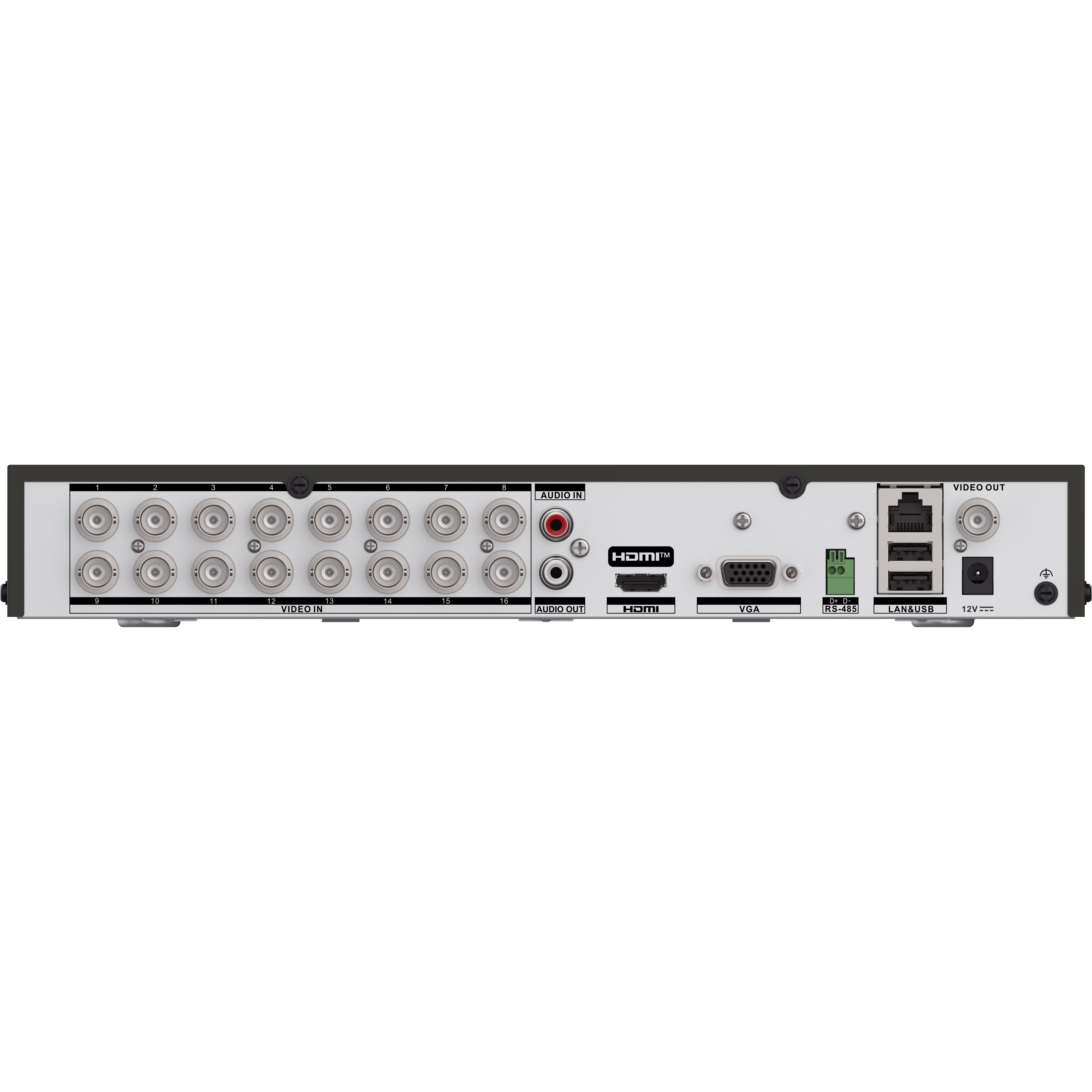

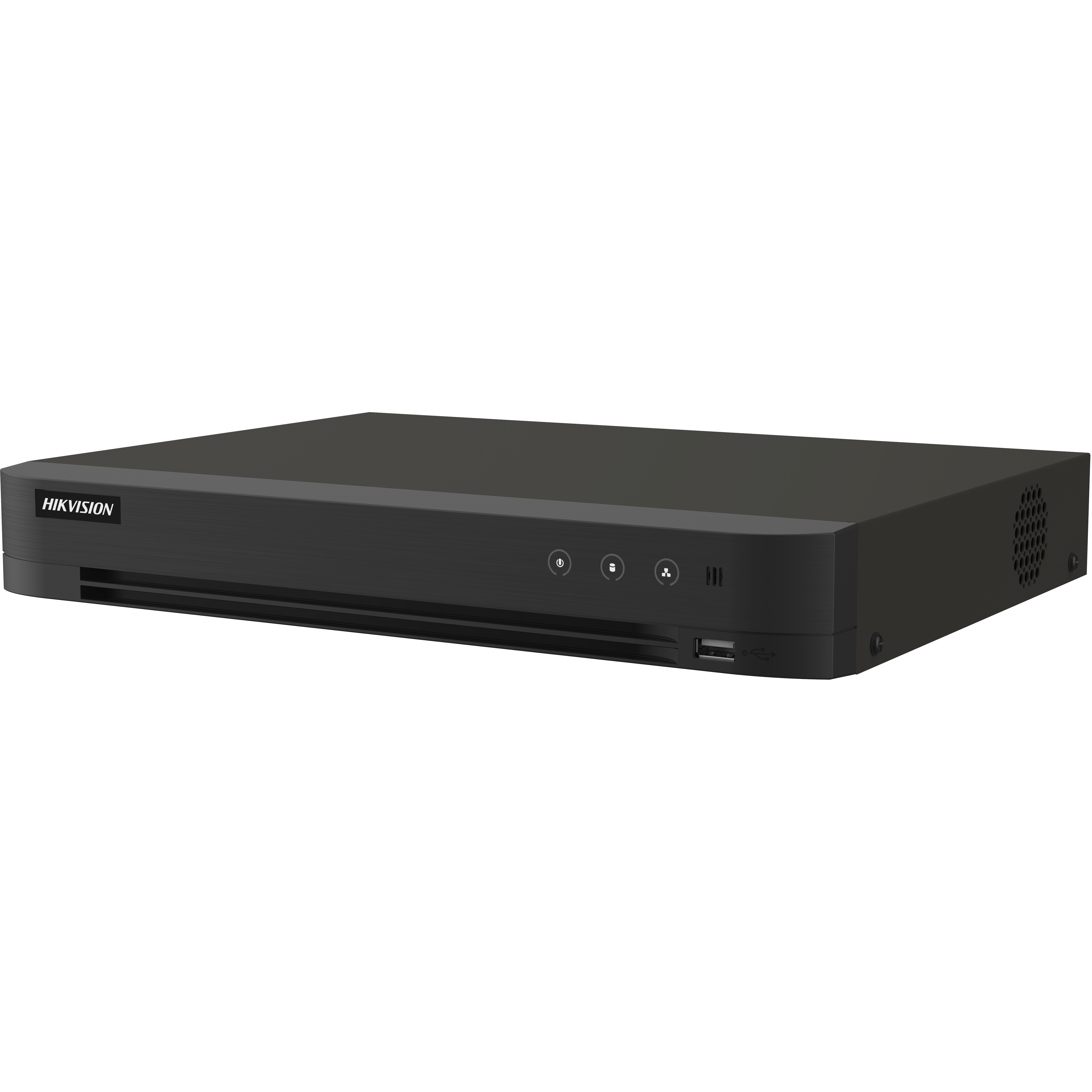

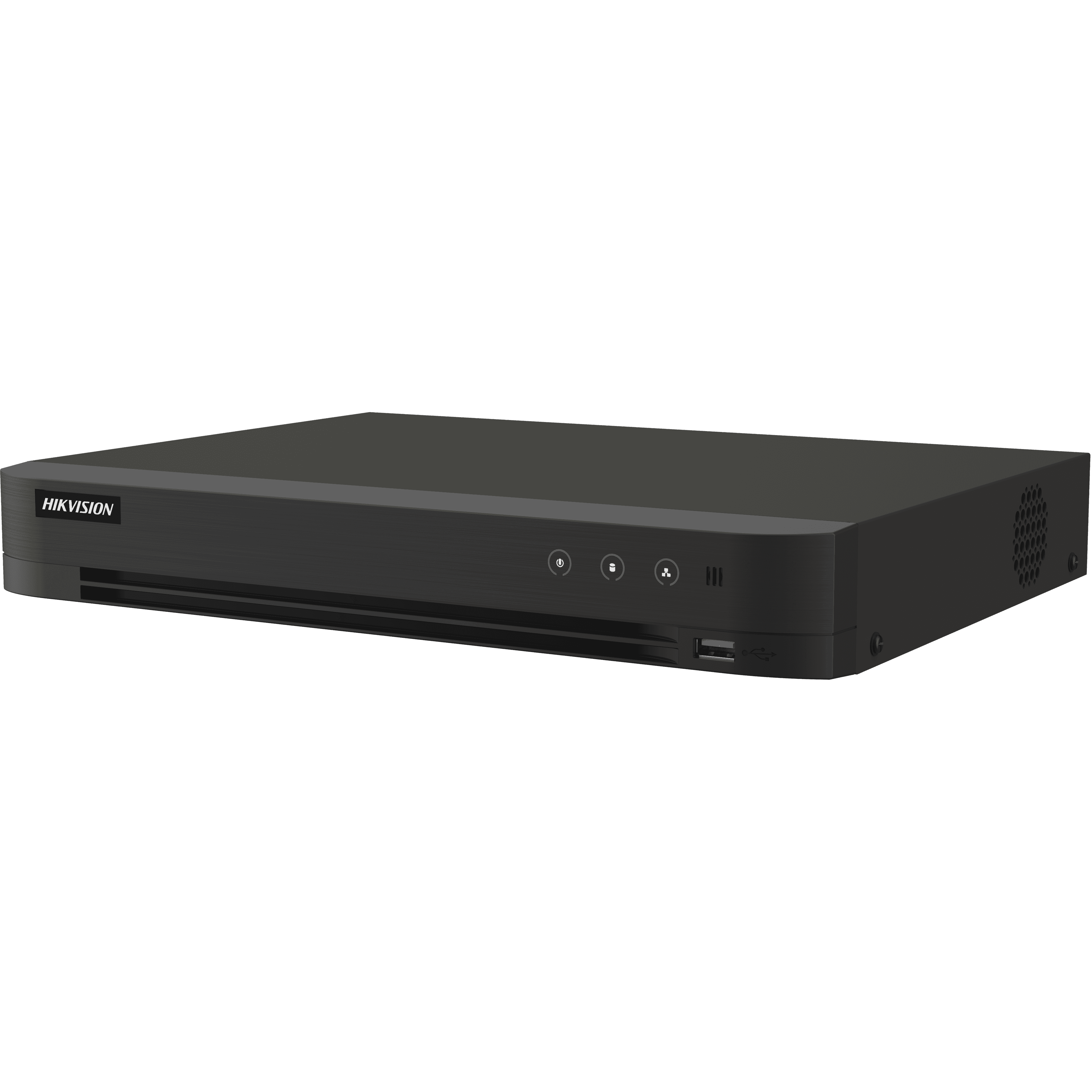

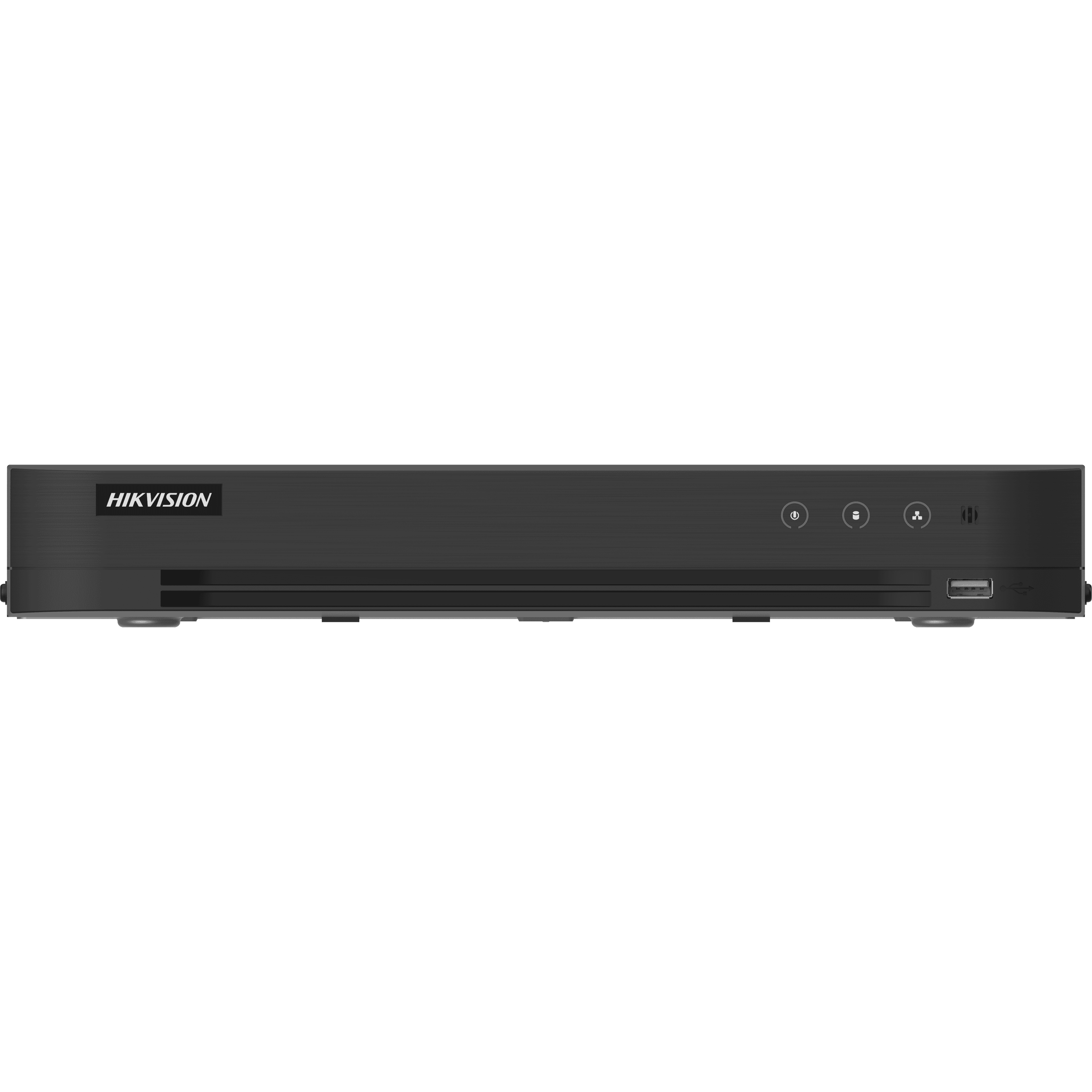

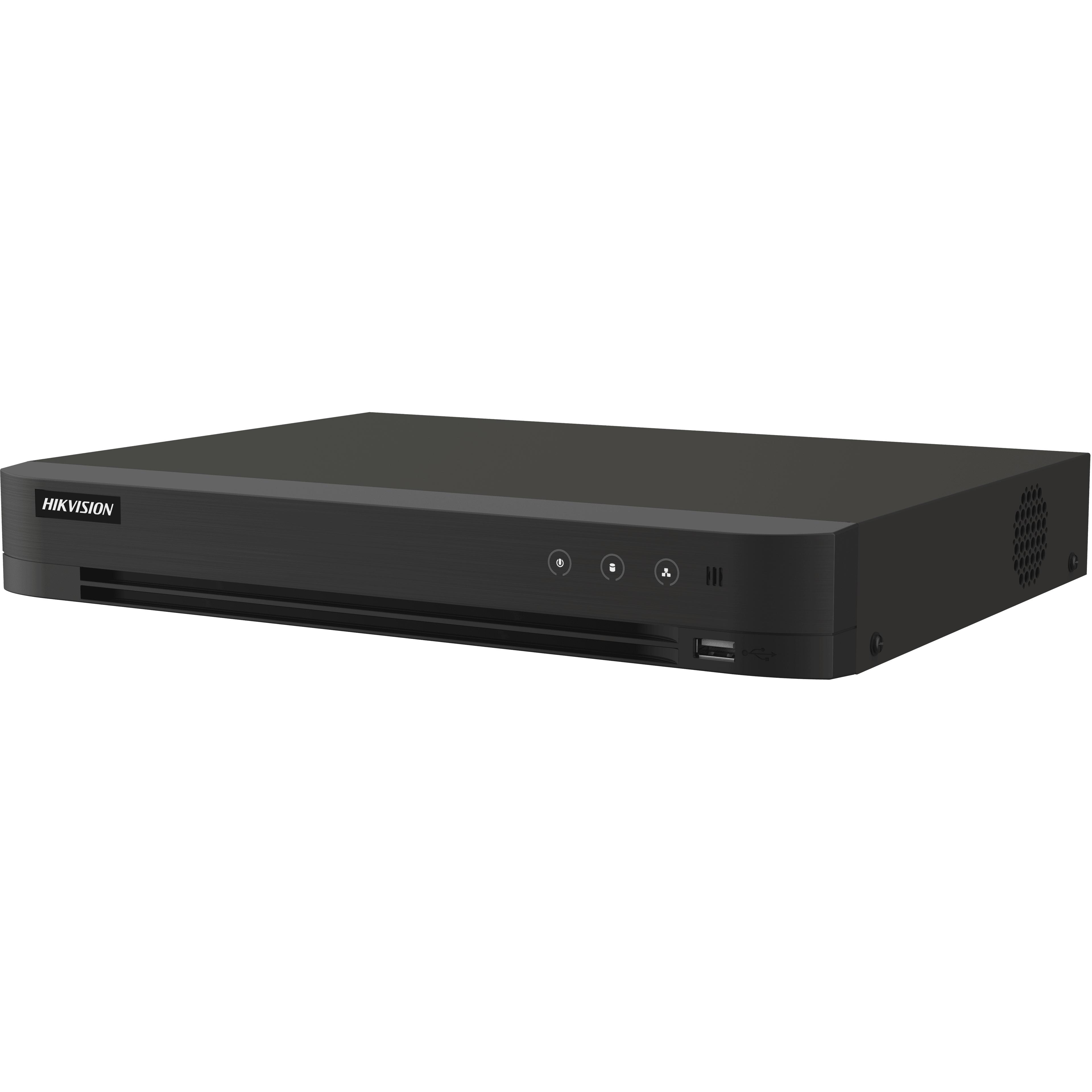

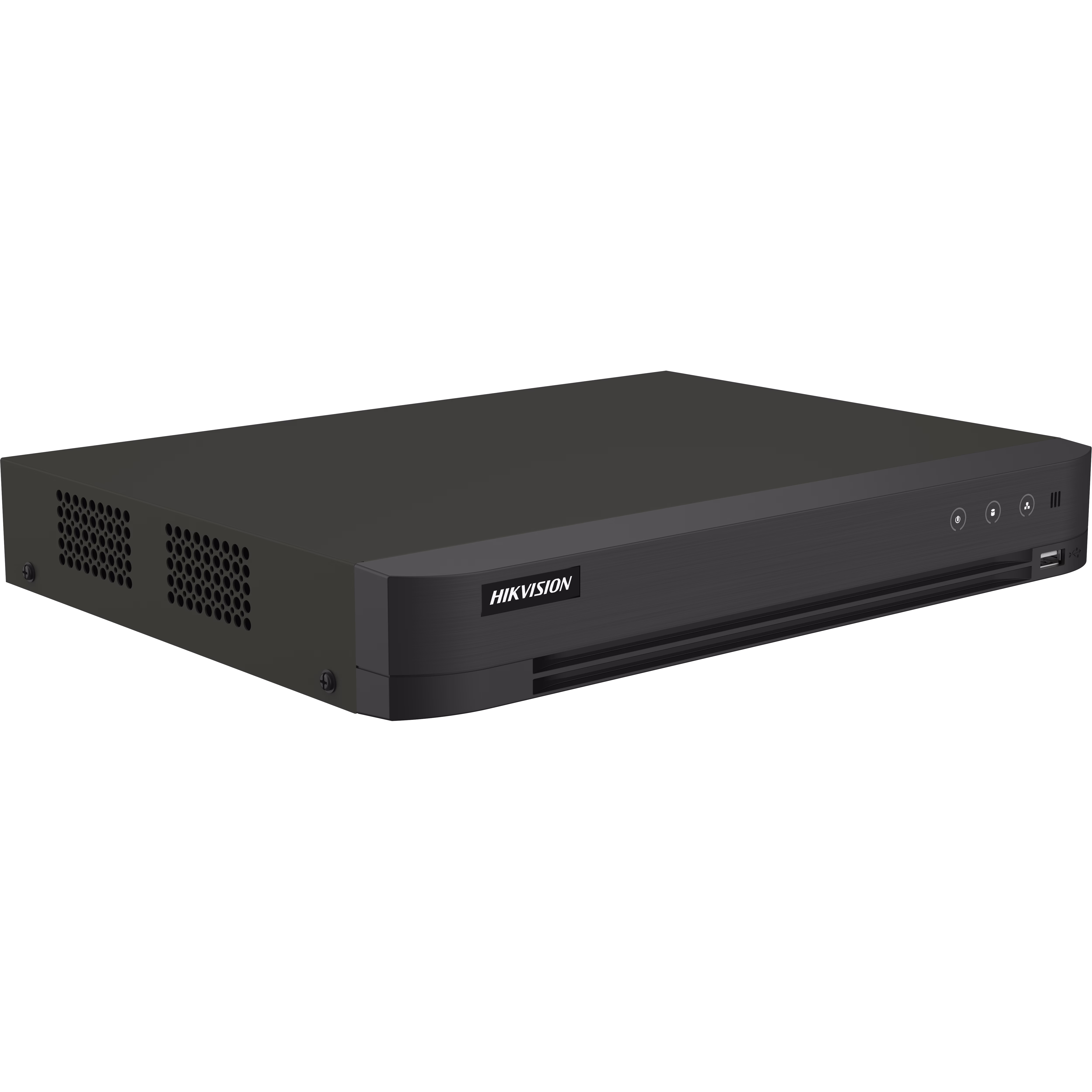

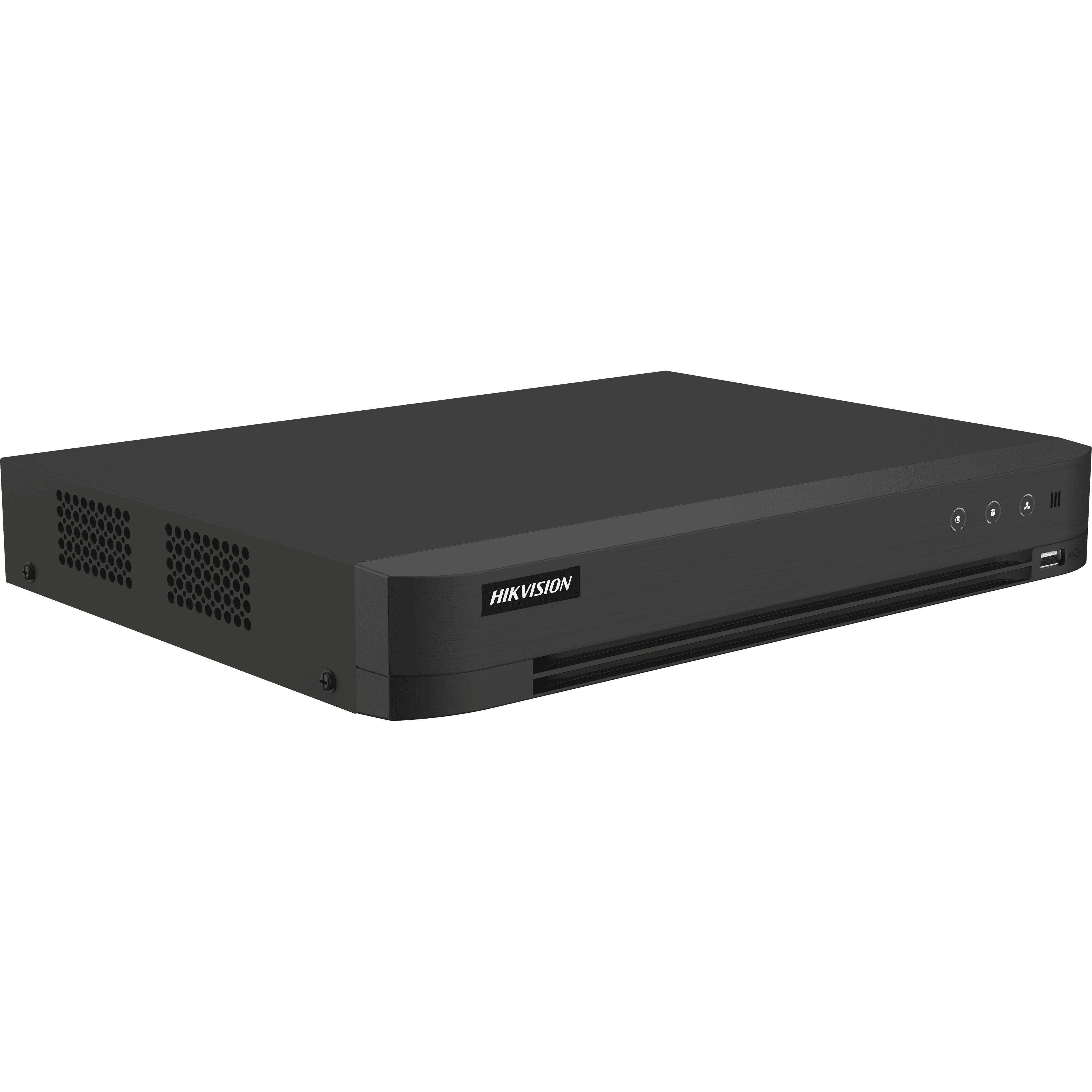

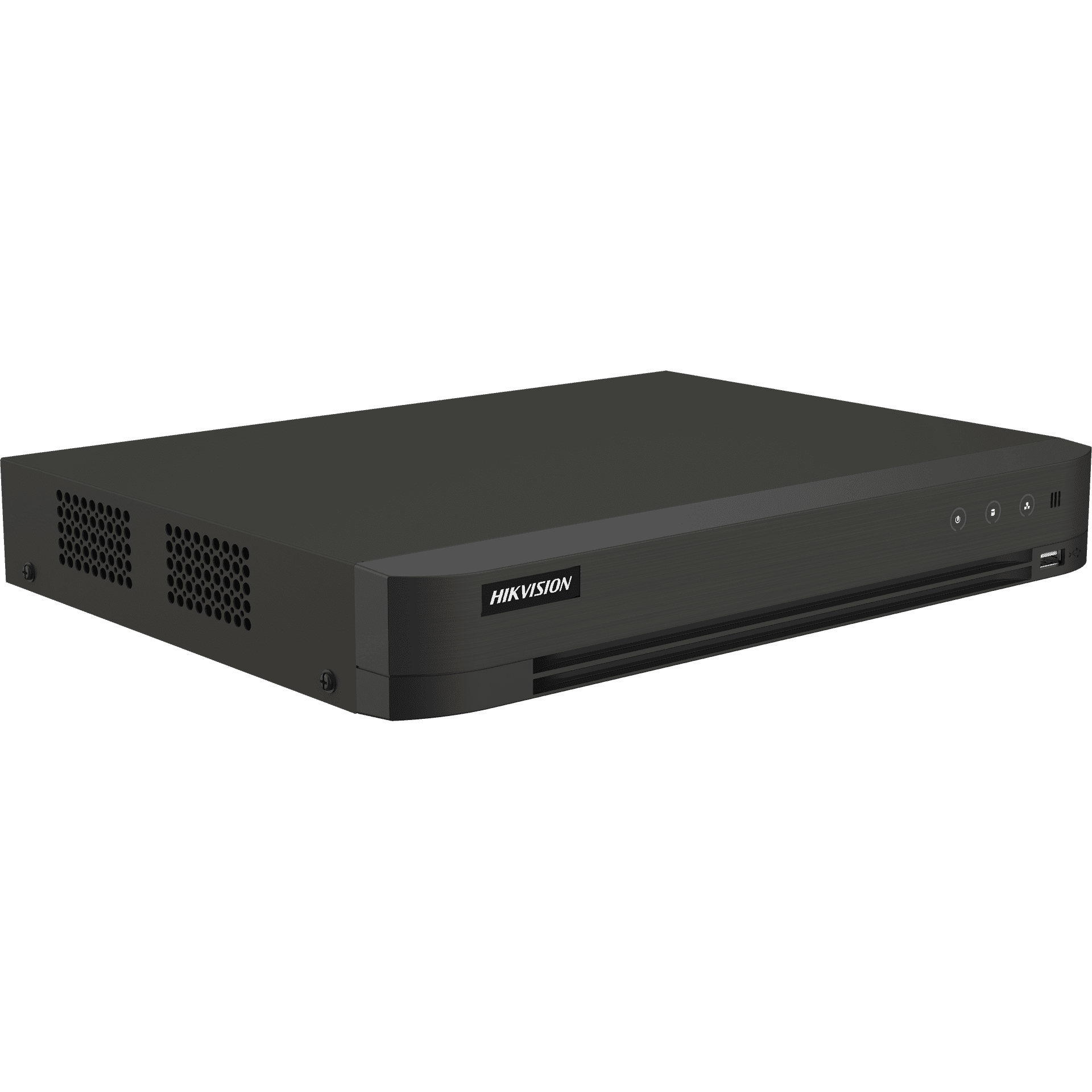

Hikvision iDS-7216HQHI-M1/XT 16 Channel 1080p 1U H.265 AcuSense DVR, Supports 3K/5MP Analogue Camera, Support Two-Way Audio Technology

Model :

SKU : iDS-7216HQHI-M1/XT

About this item

16 channels and 1 HDD 1U AcuSense DVR
Support 4-ch Facial Recognition or 8-ch advanced model Perimeter Protection based on Deep Learning algorithm
Support 16-ch AcuSearch Technology
Efficient H.265 pro+ compression technology
Encoding ability up to 3K/5MP Lite@12fps
Up to 24-ch IP camera inputs, each channel up to 6MP
Up to 24*1080P@30fps decoding ability
5 signals input adaptively (HDTVI/AHD/CVI/CVBS/IP)
Support All channels Motion Detection Technology
Support All channels HDTVI Two-Way Audio Technology

Inclusive of VAT

Delivery to

FREE scheduled delivery as soon as Loading...

Sold and shipped by: Adarc computers

AED 0.00

stock : 1

About this item

Description

*Product performance is based on testing in a controlled environment. Your results may vary due to several external and environmental factors.

Specification

Face Picture Comparison	Face picture comparison, picture search; 4-ch comparison alarm (HD analog camera)
Face Picture Library	Up to 16 libraries; data backup protected against HDD failure (HDD + flash backup)
Motion Detection 2.0	Deep learning-based detection for all analog channels; human/vehicle classification; reduced false alarms; quick search by object/event
Perimeter Protection	Human/vehicle analysis; up to 8-ch (advanced model)
Facial Detection	Face picture detection & search; 4-ch face capture

Video and Audio

IP Video Input	8-ch (up to 24-ch), up to 6 MP resolution
Analog Video Input	16-ch, BNC (1.0 Vp-p, 75 Ω), coaxitron supported
HDTVI Input	3K (2960×1665) @25/20 fps, 3K (3328×1504) @20 fps, 2K (2304×1296) @20 fps, 5 MP (2560×1944) @20 fps, 4 MP (2560×1440) @25/30 fps, 1080P @25/30 fps, 720P @25/30 fps
AHD Input	5 MP @20 fps, 4 MP @25/30 fps, 1080P @25/30 fps, 720P @25/30 fps
HDCVI Input	3K (2880×1620) @20/25 fps, 5 MP @20 fps, 4 MP @25/30 fps, 1080P @25/30 fps, 720P @25/30 fps
CVBS Input	PAL/NTSC
CVBS Output	1-ch BNC (1.0 Vp-p, 75 Ω); PAL: 704×576, NTSC: 704×480
HDMI Output	4K (3840×2160) @30Hz, 2K (2560×1440) @60Hz, 1080P/1024/720P @60Hz, HDMI/VGA simultaneous output
VGA Output	1920×1080 @60Hz, 1280×1024 @60Hz, 1280×720 @60Hz, HDMI/VGA simultaneous output
Audio Input	1-ch RCA (2.0 Vp-p, 1 KΩ); up to 16-ch via coaxial cable
Audio Output	1-ch RCA (Linear, 1 KΩ)
Two-Way Audio	1-ch RCA (uses first audio input)
Synchronous Playback	16-ch

Recording

Video Compression	H.265 Pro+ / H.265 Pro / H.265 / H.264+ / H.264
Encoding Resolution	Without 1080p Lite: 2K / 3K lite / 5 MP lite / 4 MP lite / 1080p / 720p / VGA / WD1 / 4CIF / CIF With 1080p Lite: 2K / 3K lite / 5 MP lite / 4 MP lite / 1080p lite / 720p lite / VGA / WD1 / 4CIF / CIF
Frame Rate	Main Stream (varies by stream access & Lite mode) 3K access: 3K lite@12fps; 4 MP lite@15fps; 1080p Lite@20fps; 720p/WD1/VGA/CIF@20fps 5 MP access: 5 MP lite@12fps; 4 MP lite@15fps; 1080p Lite@20fps; 720p/WD1/VGA/CIF@20fps 4 MP access: 4 MP lite@15fps; 1080p Lite@25fps(P)/30fps(N); lower res @25/30fps 1080p access: 1080p/720p@15fps; VGA/WD1/CIF@25/30fps 720p access: 720p & below @25/30fps Sub-Stream: WD1/4CIF@12fps; CIF@25/30fps
Video Bitrate	32 Kbps – 6 Mbps
Dual-stream	Main or Sub stream selectable
Stream Type	Video / Video + Audio
Audio Compression	G.711u
Audio Bitrate	64 Kbps
Decoding Capability	Up to 24-ch 1080P @30fps

Network

Remote Connection	128
Total Bandwidth	256 Mbps
Network Protocols	TCP/IP, PPPoE, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, NFS, iSCSI, UPnP™, HTTPS, ONVIF, ISUP
Network Interface	1 × RJ45 10/100/1000 Mbps Self-adaptive Ethernet

Auxiliary Interface

SATA	1 × SATA, up to 12 TB per disk
Serial Interface	RS-485 (half-duplex)
USB Interface	Front: 1 × USB 2.0 Rear: 2 × USB 3.0
Alarm In/Out	N/A (optional support)

General

Power Supply	12 VDC, 2 A
Power Consumption	≤ 24 W
Working Temperature	-10 °C to 55 °C (14 °F to 131 °F)
Working Humidity	10% – 90% (non-condensing)
Dimension	319 × 240 × 48 mm (12.6 × 9.4 × 1.9")
Weight	≤ 2 kg (4.4 lb)

Inclusive of VAT

Delivery to

FREE scheduled delivery as soon as Loading...

Sold and shipped by: Adarc computers

AED 0.00

stock : 1

Home/Security & Surveillance/DVR/Hikvision iDS-7216HQHI-M1/XT 16 Channel 1080p 1U H...

Similar Products

Free Delivery

View Shipping Policy

Safe Payment

View Payment Options

24/7 Help Center

Hassle-Free Returns

Return Policy Details

Friendly Services

About Us

Adarc Computer established in the year 2007, has emerged as a major constituent of the IT Re-distribution industry in every part of UAE. Currently, Adarc Computer is the authorized dealer of global leading brands.

Customer Service	Quick Links
Contact Us	My Account
Warranty & Repairs Policy	Checkout
Shipping Policy	Cart
Online Returns Policy	Wishlist
Payment Terms

Connect us:

🇦🇪 +97126763999

sales@adarccomputer.com

Abu Dhabi - Hamdan Bin

Terms And Conditions

Hikvision iDS-7216HQHI-M1/XT 16 Channel 1080p 1U H.265 AcuSense DVR, Supports 3K/5MP Analogue Camera, Support Two-Way Audio Technology

Shop by Category

Shop by Category

Hikvision iDS-7216HQHI-M1/XT 16 Channel 1080p 1U H.265 AcuSense DVR, Supports 3K/5MP Analogue Camera, Support Two-Way Audio Technology

Model :

SKU : iDS-7216HQHI-M1/XT

About this item

About this item

Description

Specification

Video and Audio

Recording

Network

Auxiliary Interface

General

Similar Products

Skill Tech SH 840P Full-Motion TV Wall Mount, Fits 43"–100" Screens, Heavy-Duty Articulating Arm, 60kg Capacity, VESA 800x400

IMOU IPC-S2VP-5M0WR Rex VT Smart Indoor Camera, 5MP 3K UHD, Built-in 2.4" Screen, One-Touch Video Call, AI Human & Pet Detection, IMOU SENSE

IMOU DB-3EP-4M0W/DS3 Doorbell 3 Kit, 4MP QHD Video Doorbell, True 360° Panoramic View, AI Human & Package Detection, Includes Chime

ZKTeco Horus E2-FP Wireless Time Attendance Terminal, Facial Recognition, Face + Finger + Card, 3 Meter Range Scanning, Supports 4G / WiFi / Bluetooth / GPS / Mask Detection | Horus E2- FP

Hikvision DS-KH6350-WTE1 KH6 Series IP Indoor Station, 7-inch 1024x600 Touchscreen, Wi-Fi & PoE, Hik-Connect Mobile Control

Hikvision iDS-7204HQHI-M1/XT 4-ch AcuSense DVR, Deep Learning AI, 3K/5MP Lite Hybrid Input, H.265 Pro+

Skilltech SH 666TB Telescope Height-Adjustable Steel TV Cart With Quick-Release Spring Lock, Suitable for most 60''~ 100" Screen, 120kg (264lbs)

Hikvision DS-7208HGHI-M1 8-ch 720p 1U H.265 DVR, Human & vehicle targets classification of Motion Detection 2.0

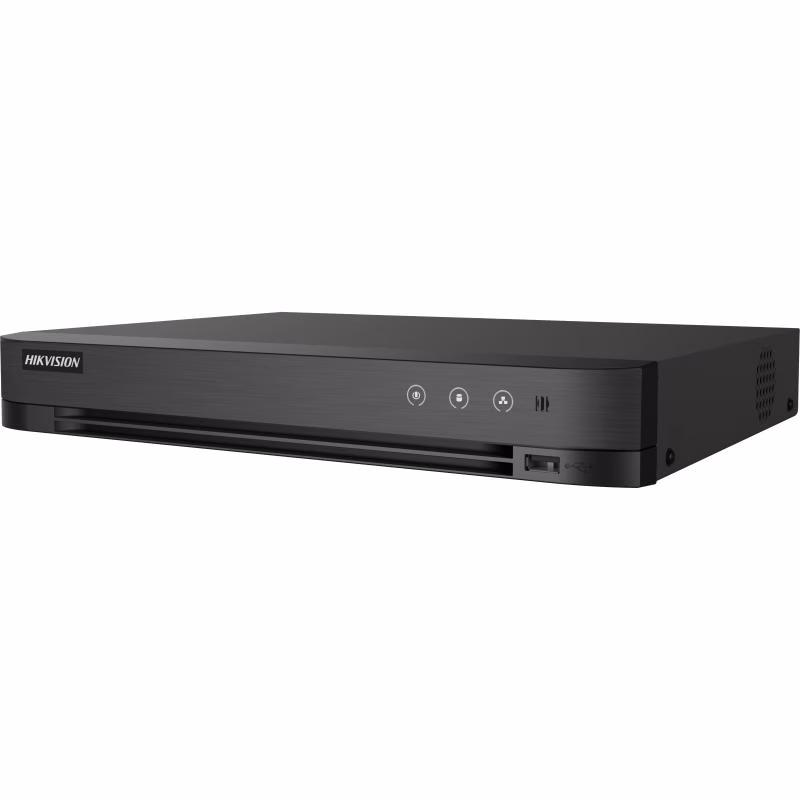

Hikvision iDS-7208HQHI-M1/S 8-ch 1080p 1U H.265 AcuSense DVR

Hikvision iDS-7216HQHI-M1/S 16-ch 1080p 1U H.265 AcuSense DVR

Hikvision DS-7216HGHI-M1 16-ch 720p 1U H.265 DVR

Hikvision DS-K4SL500MKW Pro Smart Door Locks, Card, Mechanical key, In-line lock cylinder, Aluminum alloy, Support Door Opening info, Alarm Message Upload. Hikvision Door Lock, No Remote Control

EZVIZ DL04 Pro Smart Deadbolt Lock, 2.4 GHz Wi-Fi, Fingerprint Unlocking, Remote EZVIZ App Unlocking & Controls, Supports Emergency Power Supply (Type-C) | CS-DL04 Pro

Hikvision DS-7208HUHI-K2 8 channel 5MP 2 HDDs 1U DVR, Efficient H.265 pro+, up to 8 MP @ 8 fps, 5 MP @ 12 fps, Up to 16 cameras, Dual stream

Hikvision DS-KIS604-S(C) Network Video Intercom Kit (Bundle), Network video intercom bundle for villa or house, Stores messages and captured pictures in the TF card

Hikvision DS-PHA64-Kit-WB(B) AX Hybrid Pro Kit, Wired Intrusion Alarm System

Fortinet FortiGate 100F Series FG-100F, AI/ML Security and Deep Visibility, 1 Gbps Threat Protection, 1.6 Gbps NGFW, 2.6 Gbps IPS, Enterprise Security, Security-Driven Networking, Multiple GE RJ45, GE SFP and 10 GE SFP+ slots | P24589-20-05

Hikvision DS-2CD3643G2-IZS(UHK) 4 MP AcuSense Motorized Varifocal Bullet Network Camera, Audio and alarm interface available, H.265+, 120 dB true WDR technology, IP67 & IK10, Junction box included in the package

Hikvision 4 MP ip camera AcuSense Fixed Bullet Network ip Camera, 2.8mm Lens, H.265+ Compression, Up to 6 channels, Built-in microSD, up to 512 GB, RJ45 Ethernet, Line crossing detection, intrusion detection, White | DS-2CD2T43G2-2I/4I

Hikvision DS-2CD1321G0-I 2.88mm 2 MP Fixed Bullet Network Camera, HD real- time video, IR LEDs, IP66, PoE Supported, 3D DNR, human Detection, EXIR

Hikvision 8 Channel 1080P Digital Video Recorder, Lite 1U, Up To 2MP Support, H.265 Video Compression, 32 Kbps to 4 Mbps Video Bitrate, 1 SATA Interface, Black | DS-7208HGHI-K1-S

Hikvision 4-ch 1080p Lite 1U H.265 DVR, Up to 5-ch IP camera, Up to 1080p Lite@30 fps , Max. 1200 m for 720p HDTVI signal, H.265 Pro+, Audio coaxial cable, human and vehicle Detection 2.0 | DS-7204HGHI-K1-S/M1 LITE 4 hikvision 4 chanel dvr

Hikvison DS-7616NXI-K2 NON POE NVR 16-ch 1U K Series AcuSense 4K NVR, Up to 16-ch IP camera, Up to H.265+ video formats, Up to 160 Mbps, Facial recognition, perimeter protection, throwing objects from building, motion detection2.0, AI | DS-7616NXI-K2

Hikvision DS-2CD1021G0-I 2.8mm Fixed Mini Bullet Network Camera, H.265+, Weather Proof, HD Video, EXIR, Support Human Detection, Water and dust resistant (IP67)-2MP IP CAMERA

Similar Products

Shop by Category

Similar Products

Skill Tech SH 840P Full-Motion TV Wall Mount, Fits 43"–100" Screens, Heavy-Duty Articulating Arm, 60kg Capacity, VESA 800x400

IMOU IPC-S2VP-5M0WR Rex VT Smart Indoor Camera, 5MP 3K UHD, Built-in 2.4" Screen, One-Touch Video Call, AI Human & Pet Detection, IMOU SENSE

IMOU DB-3EP-4M0W/DS3 Doorbell 3 Kit, 4MP QHD Video Doorbell, True 360° Panoramic View, AI Human & Package Detection, Includes Chime

ZKTeco Horus E2-FP Wireless Time Attendance Terminal, Facial Recognition, Face + Finger + Card, 3 Meter Range Scanning, Supports 4G / WiFi / Bluetooth / GPS / Mask Detection | Horus E2- FP

Hikvision DS-KH6350-WTE1 KH6 Series IP Indoor Station, 7-inch 1024x600 Touchscreen, Wi-Fi & PoE, Hik-Connect Mobile Control

Hikvision iDS-7204HQHI-M1/XT 4-ch AcuSense DVR, Deep Learning AI, 3K/5MP Lite Hybrid Input, H.265 Pro+

Skilltech SH 666TB Telescope Height-Adjustable Steel TV Cart With Quick-Release Spring Lock, Suitable for most 60''~ 100" Screen, 120kg (264lbs)

Hikvision DS-7208HGHI-M1 8-ch 720p 1U H.265 DVR, Human & vehicle targets classification of Motion Detection 2.0

Hikvision iDS-7208HQHI-M1/S 8-ch 1080p 1U H.265 AcuSense DVR

Hikvision iDS-7216HQHI-M1/S 16-ch 1080p 1U H.265 AcuSense DVR

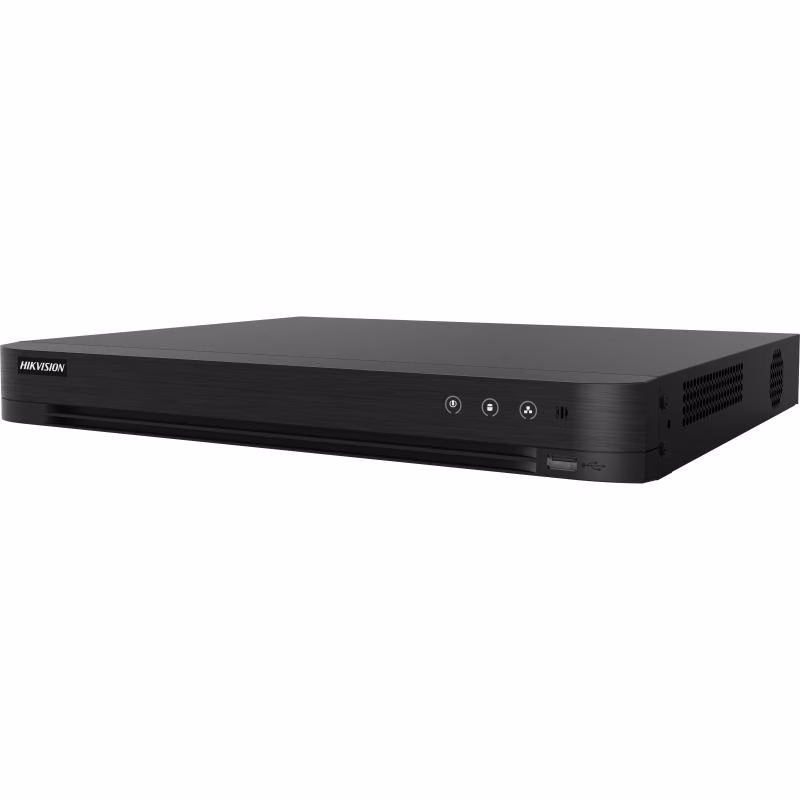

Hikvision DS-7216HGHI-M1 16-ch 720p 1U H.265 DVR
