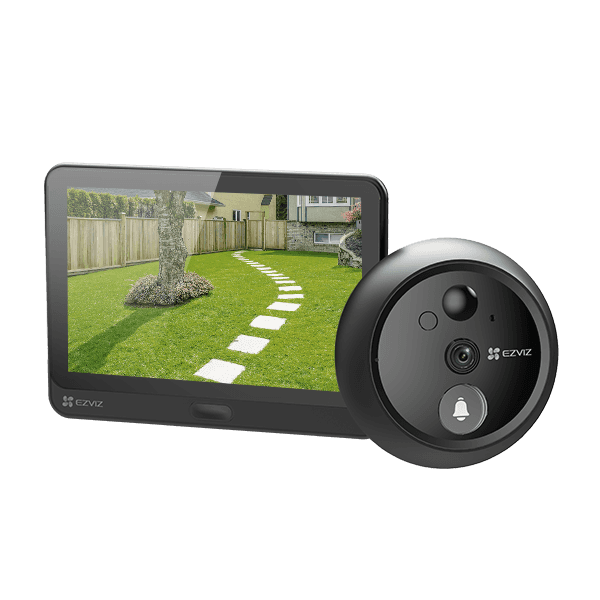

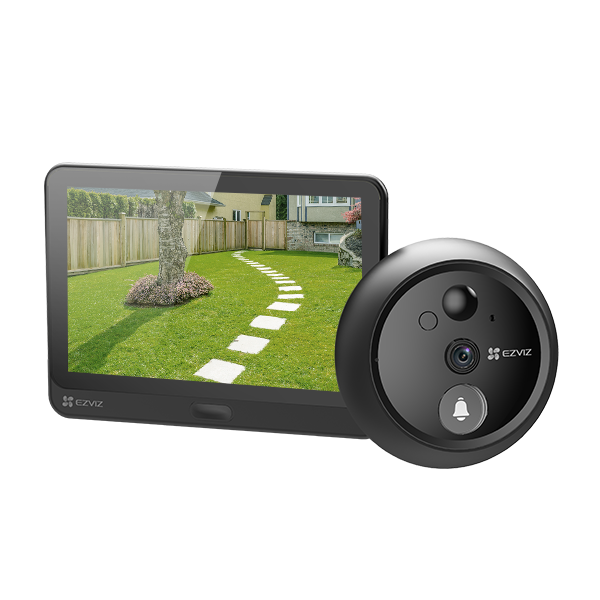

HP4 Wire-free Peephole Doorbell, 1080p Resolution, 155?? Ultra-wide-angle View, Live View & Two-way Video Call, 4.3-inch Color Screen, Night Vision Up to 3m (10ft), 4600mAh, Black

Customer Service	Quick Links
Contact Us	My Account
Warranty & Repairs Policy	Cart
Shipping Policy	Wishlist
Online Returns Policy	View All Categories
Payment Terms

Customer Service

Quick Links

My Account

Warranty & Repairs Policy

Cart

Shipping Policy

Wishlist

Online Returns Policy

View All Categories

Payment Terms

Hikvision IP Video Intercom Kit, Standard PoE, Noise Suppression & Echo Cancellation, WiFi & Ethernet, Config Remotely Via Web, TF Card Storage, 2-Way Audio Communication, Gray | DS-KIS604-P-C VIDEO INTERCOM KIT ONE INDOOR ONE OUTDOOR

648.99

Installation Parameters
Model	CS-HP4
Supportive Hole Diameter	15.5 to 50 mm
Supportive Door Diameter	35 to 105 mm (1.38 to 4.13 inch)
Sensor	1/3" Progressive Scan CMOS

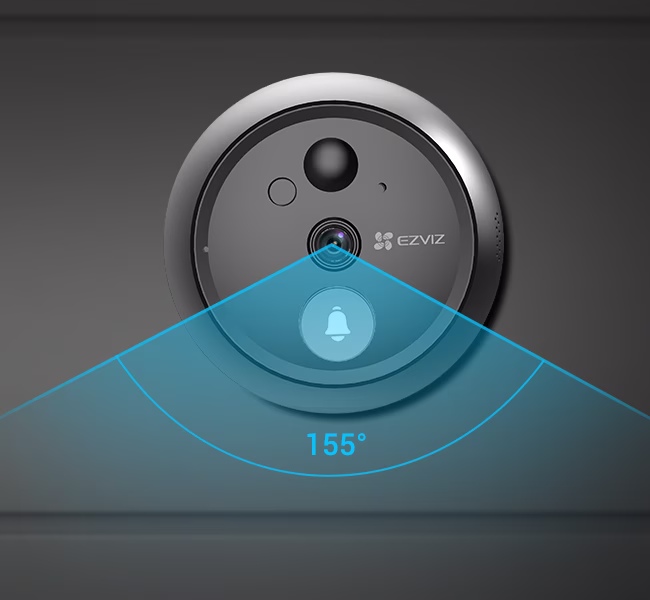

Lens	2.0 mm @ F2.2, visual angle (diagonal): 155??
Day/Night Switch	ICR infrared filter
IR Distance	Max. 3 m
Max. Resolution	1080p / 2MP
Video Frame Rate	15fps
Storage Interface	MicroSD card slot (max. 512 GB)
Audio Input	Built-in high sensitivity microphone
Audio Output	Built-in high-power speaker
Buttons	Doorbell button, power button, screen wake up button
Protocol	EZVIZ Cloud Proprietary Protocol
Video Intercom	Local and remote video intercom
General Function	Cloud video encryption and image encryption
Wi-Fi Standard	IEEE802.11b, 802.11g, 802.11n
Frequency Range	2.4 GHz ~ 2.4835 GHz
Channel Bandwidth	Supports 20 MHz
Security	64/128-bit WEP, WPA/WPA2, WPA-PSK/WPA2-PSK, WPS
Transmission Rate	11b: 11Mbps, 11g: 54Mbps, 11n: 150Mbps

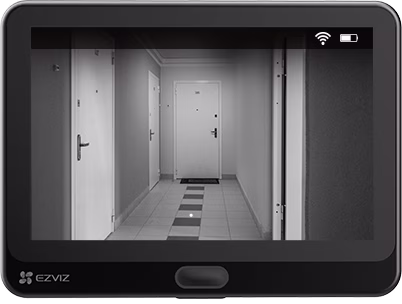

Screen	4.3-inch color screen
Color	Black
Operating Conditions	-10??C to 45??C (14??F to 113 ??F), Humidity 95% or less
Power Supply	DC 5V??10%
Power Consumption	Max. 2.2W
Dimension	Screen and Base: 115.5 ?? 85.5 ?? 24.5 mm (4.55 ?? 3.37 ?? 0.96 inch) Peephole Doorbell: 71 ?? 71 ?? 48.3 mm (2.80 ?? 2.80 ?? 1.90 inch)
Weight	302 g (10.65 oz)
- HP4 Peephole Doorbell - Panel - Mounting Base - Power Cable (1 m / 3.3 ft) - Screws ?? 6 - Quick Start Guide
Certifications	UL / CE / WEEE / REACH / RoHS

Installation Parameters

Camera Parameters

Interface

Network

Wireless

General

In the box

Certifications

Model

CS-HP4

Supportive Hole Diameter

15.5 to 50 mm

Supportive Door Diameter

35 to 105 mm (1.38 to 4.13 inch)

Sensor

1/3" Progressive Scan CMOS

Lens

2.0 mm @ F2.2, visual angle (diagonal): 155??

Day/Night Switch

ICR infrared filter

IR Distance

Max. 3 m

Max. Resolution

1080p / 2MP

Video Frame Rate

15fps

Storage Interface

MicroSD card slot (max. 512 GB)

Audio Input

Built-in high sensitivity microphone

Audio Output

Built-in high-power speaker

Buttons

Doorbell button, power button, screen wake up button

Protocol

EZVIZ Cloud Proprietary Protocol

Video Intercom

Local and remote video intercom

General Function

Cloud video encryption and image encryption

Wi-Fi Standard

IEEE802.11b, 802.11g, 802.11n

Frequency Range

2.4 GHz ~ 2.4835 GHz

Channel Bandwidth

Supports 20 MHz

Security

64/128-bit WEP, WPA/WPA2, WPA-PSK/WPA2-PSK, WPS

Transmission Rate

11b: 11Mbps, 11g: 54Mbps, 11n: 150Mbps

Screen

4.3-inch color screen

Color

Black

Operating Conditions

-10??C to 45??C (14??F to 113 ??F), Humidity 95% or less

Power Supply

DC 5V??10%

Power Consumption

Max. 2.2W

Dimension

Screen and Base: 115.5 ?? 85.5 ?? 24.5 mm (4.55 ?? 3.37 ?? 0.96 inch)
Peephole Doorbell: 71 ?? 71 ?? 48.3 mm (2.80 ?? 2.80 ?? 1.90 inch)

Weight

302 g (10.65 oz)

- HP4 Peephole Doorbell
- Panel
- Mounting Base
- Power Cable (1 m / 3.3 ft)
- Screws ?? 6
- Quick Start Guide

Certifications

UL / CE / WEEE / REACH / RoHS

Specification

Installation Parameters
Camera Parameters
Interface
Network
Wireless
General
In the box
Certifications
Model	CS-HP4
Supportive Hole Diameter	15.5 to 50 mm
Supportive Door Diameter	35 to 105 mm (1.38 to 4.13 inch)
Sensor	1/3" Progressive Scan CMOS
Lens	2.0 mm @ F2.2, visual angle (diagonal): 155??
Day/Night Switch	ICR infrared filter
IR Distance	Max. 3 m
Max. Resolution	1080p / 2MP
Video Frame Rate	15fps
Storage Interface	MicroSD card slot (max. 512 GB)
Audio Input	Built-in high sensitivity microphone
Audio Output	Built-in high-power speaker
Buttons	Doorbell button, power button, screen wake up button
Protocol	EZVIZ Cloud Proprietary Protocol
Video Intercom	Local and remote video intercom
General Function	Cloud video encryption and image encryption
Wi-Fi Standard	IEEE802.11b, 802.11g, 802.11n
Frequency Range	2.4 GHz ~ 2.4835 GHz
Channel Bandwidth	Supports 20 MHz
Security	64/128-bit WEP, WPA/WPA2, WPA-PSK/WPA2-PSK, WPS
Transmission Rate	11b: 11Mbps, 11g: 54Mbps, 11n: 150Mbps
Screen	4.3-inch color screen
Color	Black
Operating Conditions	-10??C to 45??C (14??F to 113 ??F), Humidity 95% or less
Power Supply	DC 5V??10%
Power Consumption	Max. 2.2W
Dimension	Screen and Base: 115.5 ?? 85.5 ?? 24.5 mm (4.55 ?? 3.37 ?? 0.96 inch) Peephole Doorbell: 71 ?? 71 ?? 48.3 mm (2.80 ?? 2.80 ?? 1.90 inch)
Weight	302 g (10.65 oz)
- HP4 Peephole Doorbell - Panel - Mounting Base - Power Cable (1 m / 3.3 ft) - Screws ?? 6 - Quick Start Guide
Certifications	UL / CE / WEEE / REACH / RoHS

Similar products

Hikvision DS-KV6113-WPE1(B) 2MP Surface Mount PoE IP Villa Door Station | DS-KV6133-WME1

Hikvision DS-KIS610-P IP Video Intercom Kit, 4MP, PoE, Dual Lock Control

Hikvision DS-KV9503-WBE1 Metal Vandal-resistant Facial Recognition IP Villa Door Station

Hikvision DS-KD8003-IME1 KD8 Series Pro Modular Door Station With Brackets, 2MP HD Colorful Camera, Fish eye, IR Supplement, 1 Call physical Button, 2 lock relays, 4-ch alarm input, IP65, 12 VDC or standard PoE,

EZVIZ EP3x Pro 2K Battery-Powered Video Doorbell, 2K & 1080p Dual Lenses, Solar Panel Included, Two-Way Talk, Free 32 GB eMMC Storage | CS-EP3x Pro

Hikvision DS-KIS901-P Facial Network Intercom Kit (Bundle), MinMoe face recognition terminal and indoor station bundle for villa or commercial, One call button for easier calls, Wi-Fi and PoE

Hikvision DS-KH9310-WTE1 Video Intercom Network Indoor Station, 7-inch 1024 600 Colorful TFT Capacitive touch screen, 1 GB RAM, 4GB ROM, Android OS, Built-in microphone & loudspeaker

Logitech Rally Bar All-In-One Video Bar, 4K Ultra HD PTZ Camera, AI Viewfinder, Graphite | 960-001312

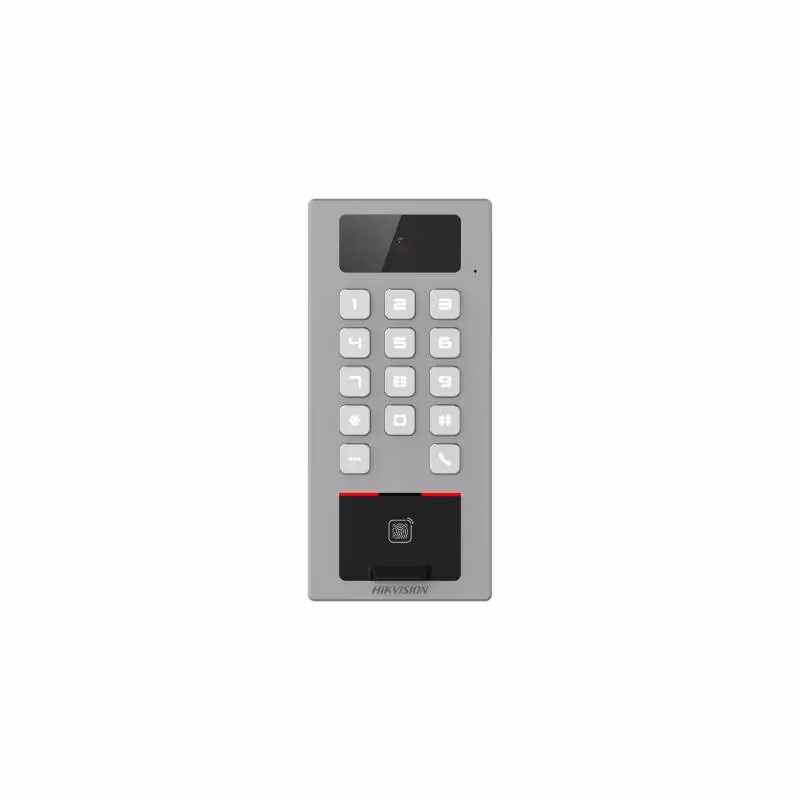

Hikvision DS-K1T502DBFWX-C Access Control Terminal. Manage access control and intercom functions in one device; IP65 & IK09 protections, Supports (card, fingerprint, PIN, etc.)

HIKVISION DS-KIS603-P hikvision Video Intercom Villa Door Station Bundle, 7-inch colorful touch screen with resolution 1024 ?? 600, Supports wireless network, Standard PoE

Hikvision Digital Technology DS-KH6320-WTE1 video intercom system 17.8 cm (7") Black, White | DS-KH6320-WTE1

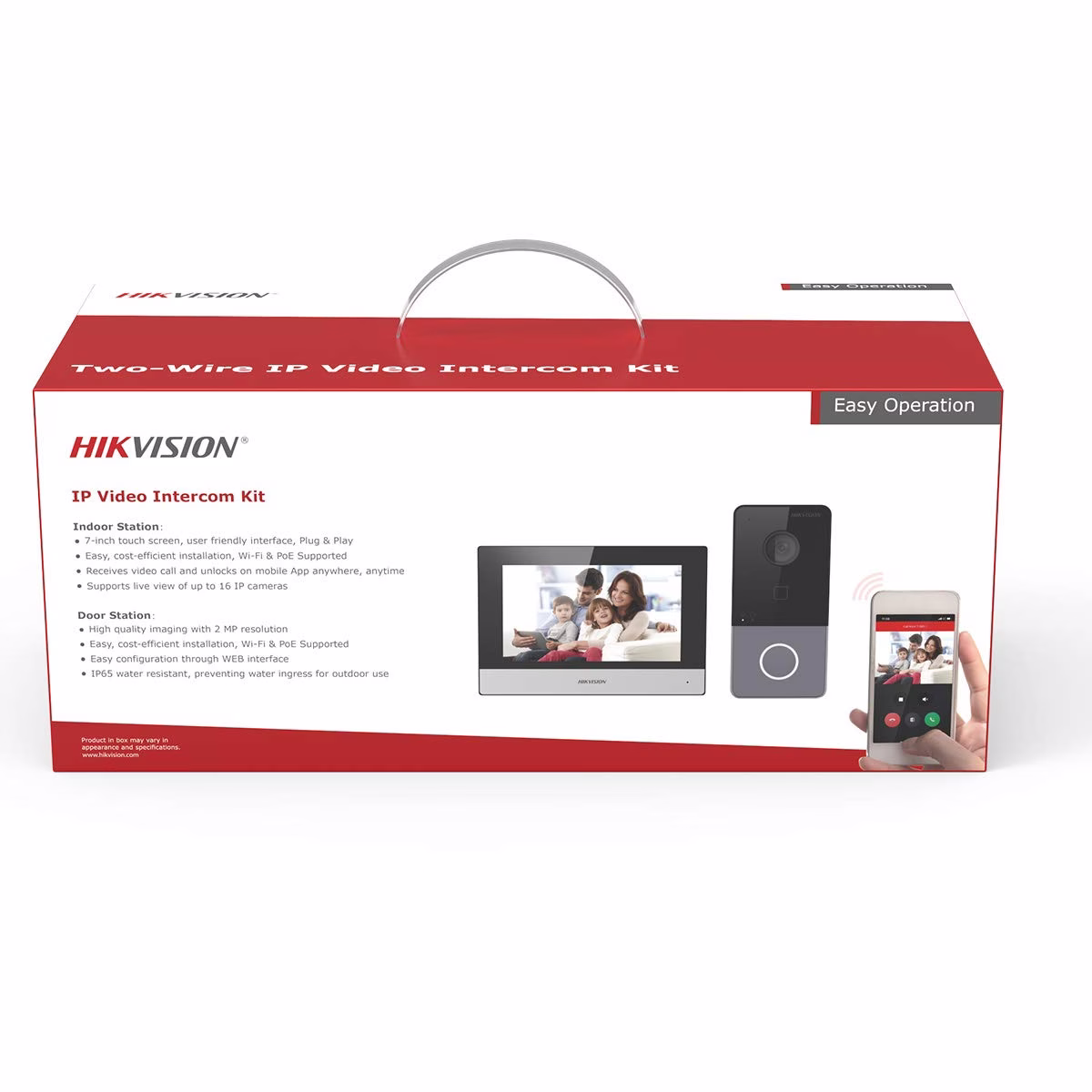

HIKVISION DS-KIS602 hikvision Video Intercom Villa Door Station Bundle, 7-inch colorful touch screen with resolution 1024 ?? 600, Supports wireless network, Standard PoE
