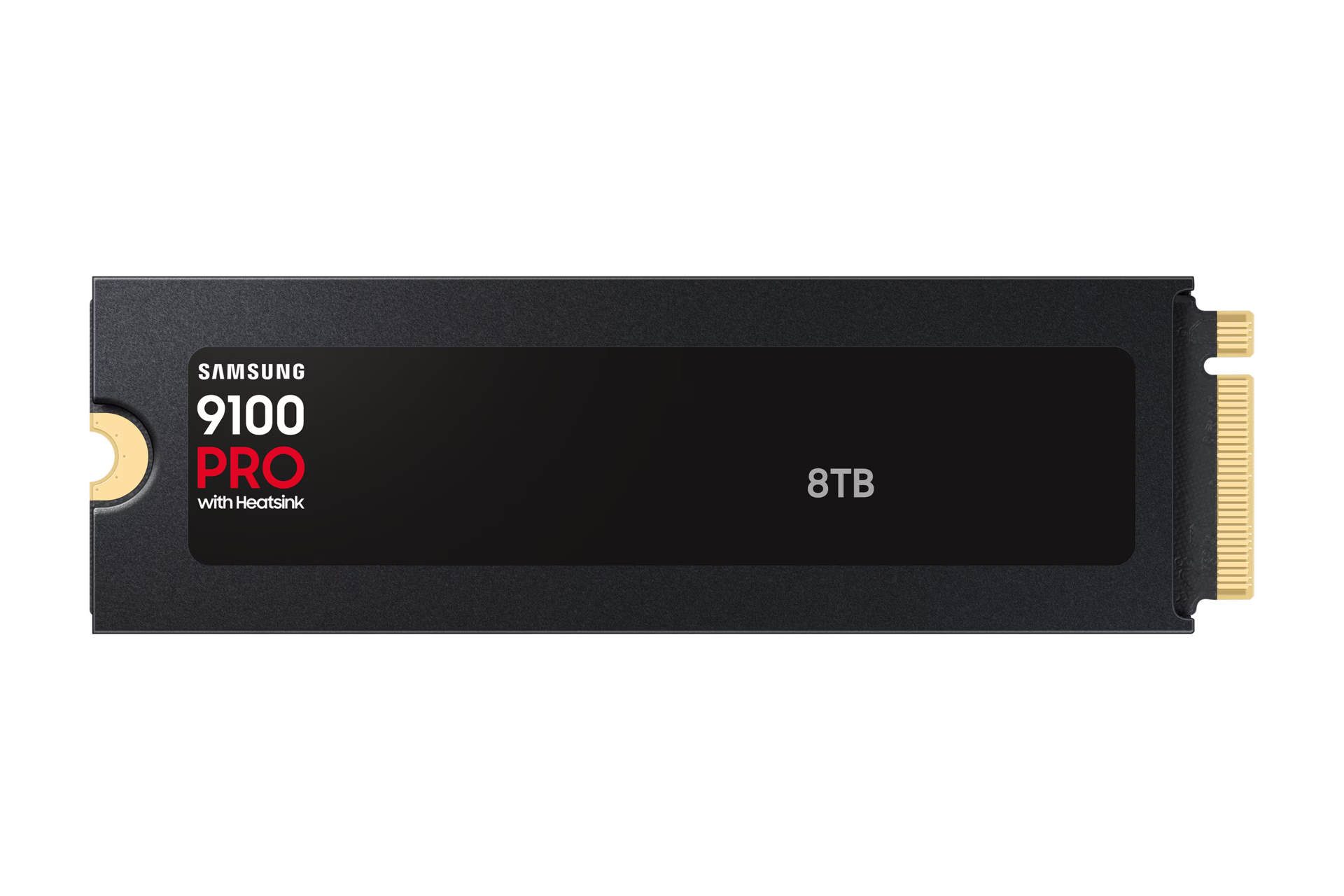

Samsung 9100 PRO with Heatsink 8TB NVMe M.2 SSD, PCIe 5.0 x4, Up to 14,800 MB/s, PS5 Ready, 8GB Cache, Integrated Thermal Shield | MZ-VAP8T0CW
Model : 9100 8 TB
SKU : SSD-SAMSUNG 9100 8TB HEAT
The Samsung 9100 PRO with Heatsink is the definitive high-performance storage solution for the next generation of computing and gaming consoles. By combining a massive 8TB capacity with an integrated industrial-grade thermal shield, it maintains blistering 14,800 MB/s read speeds without thermal throttling. Whether you are expanding your PlayStation 5 library or building a world-class PCIe 5.0 workstation, this drive delivers ultimate speed and reliability for the most data-intensive 2026 applications.
Description
Dominate the digital frontier with the Samsung 9100 PRO with Heatsink 8TB SSD. As PCIe 5.0 speeds generate significant heat, Samsung has engineered this flagship drive with a pre-fitted, slim-profile heatsink designed to fit perfectly in both Client PCs and Game Consoles. Featuring an incredible 14,800 MB/s sequential read velocity, this drive represents the absolute limit of modern flash storage, providing the capacity of an archive with the speed of a racing machine.
Key Features
- Integrated Advanced Thermal Shield: The built-in heatsink isn't just for show; it’s a critical component that dissipates heat during heavy sustained workloads. This allows the drive to stay within the 0 - 70 ℃ operating range, preventing the performance drops common in unshielded Gen5 drives.
- 8TB Professional Capacity: With 8,000GB of usable space, this drive is built for the "everything" user. Store 8K cinematic raw files, massive AI training sets, or hundreds of AAA games without ever worrying about clearing space.
- Next-Gen PCIe 5.0 x4 & NVMe 2.0: By utilizing the NVMe 2.0 protocol, the 9100 PRO optimizes command processing. Reaching up to 2.6 Million IOPS in random writes, it ensures that your OS, applications, and games feel more responsive than ever before.
- Powered by Samsung V-NAND TLC: Utilizing Samsung's latest V-NAND technology and an in-house controller, this drive offers a reliability rating of 1.5 Million Hours (MTBF). It is backed by a robust 4,800TBW endurance rating, making it one of the most durable consumer drives on the market.
- Intelligent Cache & Security: An onboard 8GB Low Power DDR4X cache handles high-speed data buffering for ultra-smooth file transfers. Security is handled by AES 256-bit hardware encryption, ensuring your professional work remains private and secure.
- PS5 & Console Compatible: The dimensions (80.15 x 25 x 11.25mm) are specifically designed to meet the strict requirements of high-end game consoles. Installation is a simple plug-and-play process, instantly adding 8TB of high-speed storage to your gaming setup.
Why This Product Stands Out The 9100 PRO with Heatsink is for the user who wants the maximum performance with zero maintenance. You don't need to worry about buying an aftermarket cooler or messing with thermal pads—Samsung has done the engineering for you. It is the gold standard for anyone needing massive, high-speed storage that works at peak performance from the moment it’s installed.
Specification
Samsung 990 PRO 8TB NVMe SSD (With Heatsink) – Specifications
| Overview | |
|---|---|
| Performance | |
| Hardware Components | |
| Special Features | |
| Power & Environment | |
| Reliability | |
| Software & Accessories | |
| Application | Client PCs, Game Consoles |
| Form Factor | M.2 (2280) with Heatsink |
| Interface | PCIe® 5.0 x4, NVMe™ 2.0 |
| Rated Capacity | 8,000GB (1GB = 1 Billion bytes by IDEMA) * Actual usable capacity may be less |
| Dimensions (WxHxD) | Max 80.15 x 25 x 11.25 mm (with Heatsink) |
| Weight | Max 35.0 g |
| Warranty | 5-Year Limited Warranty or 4,800 TBW Limited Warranty |
| Sequential Read | Up to 14,800 MB/s* |
| Sequential Write | Up to 13,400 MB/s* |
| Random Read | Up to 2,200,000 IOPS* |
| Random Write | Up to 2,600,000 IOPS* |
| * Performance may vary based on system hardware & configuration | |
| Storage Memory | Samsung V-NAND TLC |
| Controller | Samsung In-house Controller |
| Cache Memory | Samsung 8GB Low Power DDR4X SDRAM |
| TRIM Support | Supported |
| S.M.A.R.T Support | Supported |
| Garbage Collection | Auto Garbage Collection Algorithm |
| Encryption | AES 256-bit (Class 0), TCG/Opal, IEEE1667 |
| WWN Support | Not Supported |
| Device Sleep Mode | Supported |
| Average Power Consumption | Read: 10.5 W / Write: 8.8 W* |
| Idle Power Consumption | Typical 9.3 mW* |
| Device Sleep Power | Typical 8.6 mW* |
| Allowable Voltage | 3.3 V ± 5% |
| Operating Temperature | 0 – 70 ℃ |
| Shock Resistance | 1,500 G & 0.5 ms (Half Sine) |
| * Actual values may vary depending on system hardware & configuration | |
| MTBF | 1.5 Million Hours |
| Management Software | Samsung Magician Software |
| Installation Kit | Not Available |
