Home/Networking/Commercial Networking/Switches/Unifi USW-Enterprise-8-PoE 8-port Layer 3 Switch, ...

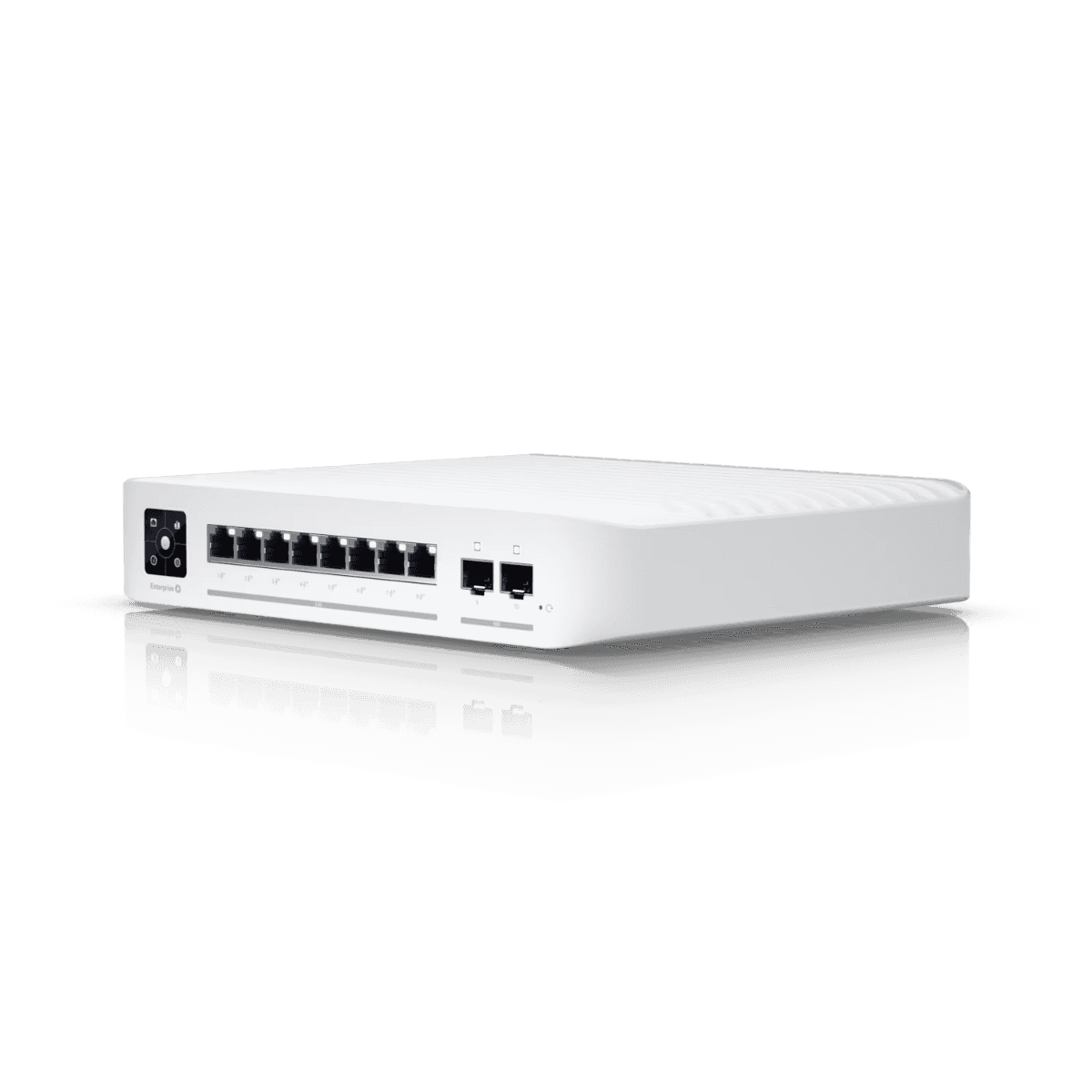

Unifi USW-Enterprise-8-PoE 8-port Layer 3 Switch, 8x 2.5 GbE PoE+ Ports, 2x 10G SFP+ ports, 120W total PoE availability | USW-Enterprise-8-PoE (120W)
Model :
SKU : NS-UNIF USW-ENTERPR-8??POE
About this item
0
Inclusive of VAT
Delivery to
FREE scheduled delivery as soon as Loading...
Sold and shipped by: Adarc computers
1
About this item
Description
Specification
| Dimensions | 200 x 248 x 44 mm (7.9 x 9.8 x 1.7") |
| Weight | 2.4 kg (5.3 lb) |
| Enclosure Material | Polycarbonate |
| Mount Material | Polycarbonate |
| Management Interface | Ethernet In-Band |
| Networking Interface | (8) 2.5 GbE RJ45 ports (2) 10G SFP+ ports |
| PoE Interface | (8) PoE/PoE+ (Pins 1, 2+; 3, 6-) |
| Total Non-blocking Throughput | 40 Gbps |
| Switching Capacity | 80 Gbps |
| Forwarding Rate | 59.52 Mpps |
| Power Method | Universal input, 100???240V AC, 2A Max., 50/60 Hz |
| Power Supply | AC/DC, internal, 150W |
| Supported Voltage Range | 100???240V AC |
| Total Available PoE | 120W |
| Max. PoE+ Wattage per Port by PSE | 32W |
| Voltage Range PoE Mode | PoE: 44???57V PoE+: 50???57V |
| LCM Display | (1) 1.3" color touchscreen |

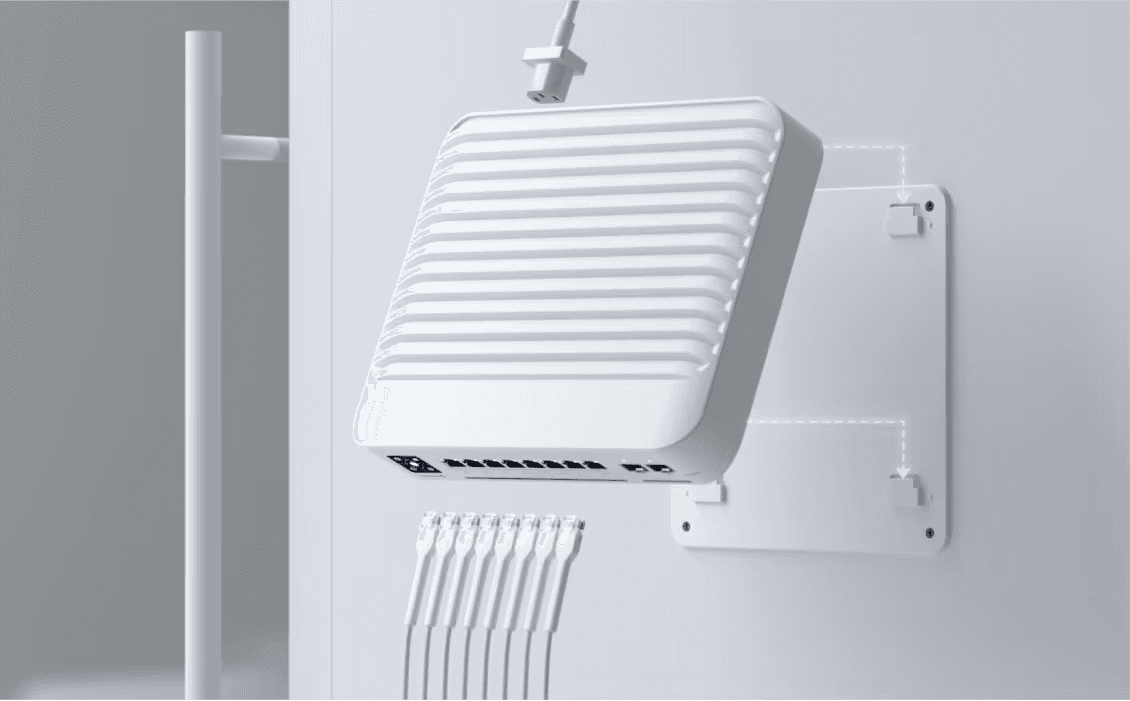

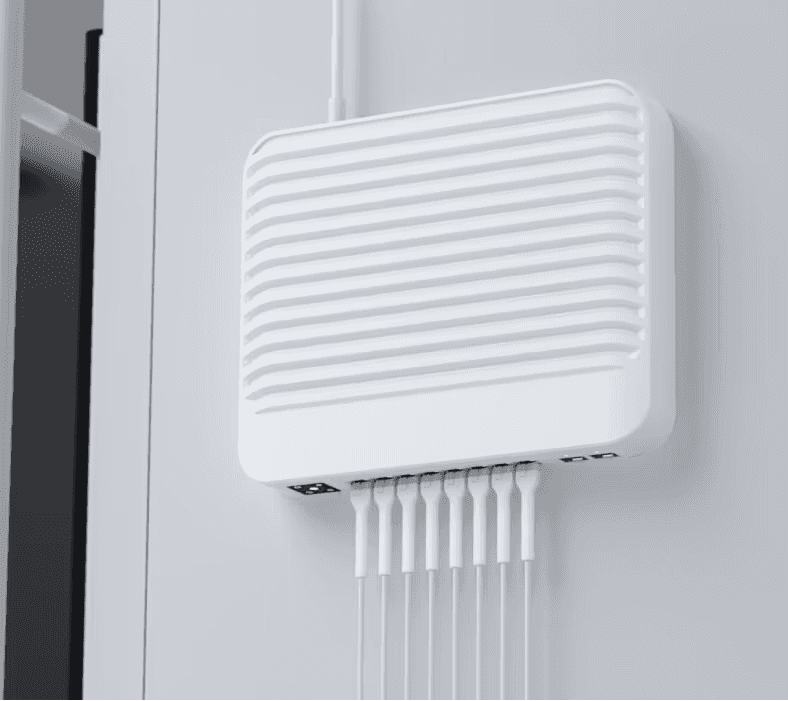

| Mounting | Desktop-mountable (Do not physically stack the USW-Enterprise-8-PoE) |
| ESD/EMP Protection | Air: ?? 16kV, Contact: ?? 12kV |
| Ambient Operating Temperature | -5 to 45?? C (23 to 113?? F) |
| Ambient Operating Humidity | 10 to 90% noncondensing |
| Certifications | CE, FCC, IC |
| Layer 2 Features | IGMP snooping, STP / RSTP with priorities and port-level disable, Port isolation, Storm control, Voice VLAN, Port mirroring, LACP port aggregation, Multicast / broadcast rate limiting, MAC address blocking, Flow control, 802.1X control, Jumbo frames, Proprietary loop protection, DHCP snooping / guarding, Egress rate limit, LLDP-MED, Port restricted by MAC, Device isolation with ACLs |
| Layer 3 Features | DHCP for locally-managed networks, DHCP relay, Inter-VLAN routing between networks on the same switch, Static routing between local networks |
| System | Status |
| Ethernet | Link/activity |
| SFP+ | Link/activity |
| UniFi Network | Version 6.3.51 and later |
