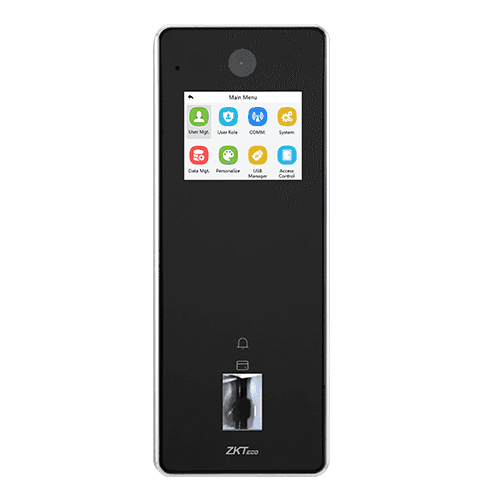

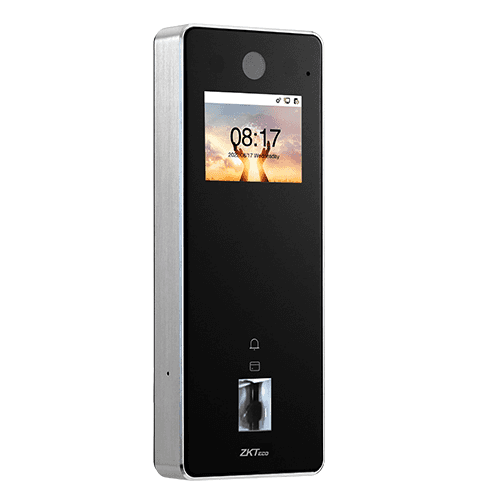

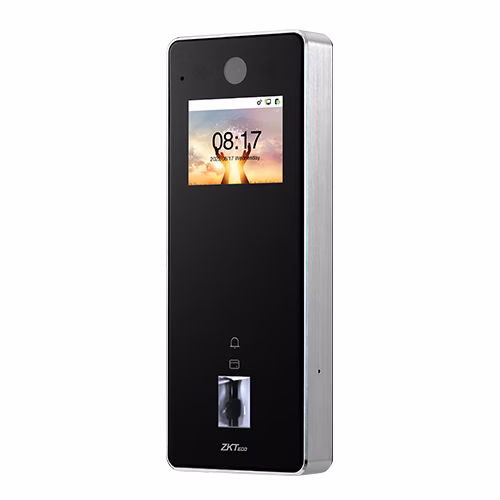

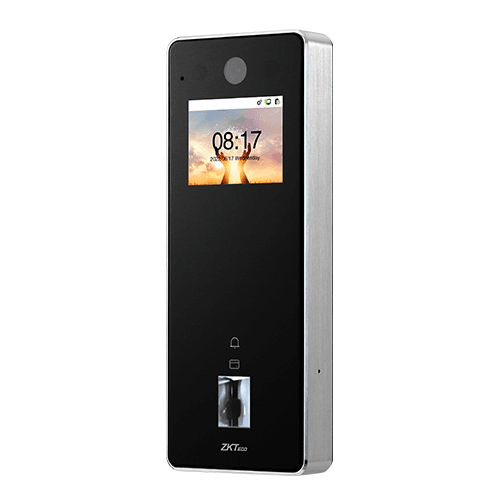

ZKTeco F35 Standalone Biometric Access Control Terminal, 2.4" TFT Color LCD Screen (720*1280), Camera 2MP, Fingerprint / Card / Password (Physical Touch Keypad ), Linux
Model :
SKU : ZKTeco F35 ACCES CONTROL
0Inclusive of VAT
Delivery to
FREE scheduled delivery as soon as Loading...
Sold and shipped by: Adarc computers
1
About this item
Description
F35 Biometric Access Control Terminal - Specifications
| Model | F35 |
| Display | 2.4" TFT Color LCD Screen (720??1280) |
| Camera | 2MP |
| Field of View | Diagonal: 145?? Horizontal: 118?? Vertical: 62?? |
| Operating System | Linux |
| Hardware |
CPU: 1.2GHz Dual Core RAM: 256MB; ROM: 512MB Speaker: 8?? ??20% @1.0W Microphone: Omni-directional, Sensitivity -29 to -35 dB, SNR 58 dB, Impedance 2.2 k?? Fingerprint Sensor: In-Glass Fingerprint (Z-ID) |
| Authentication Method | Fingerprint / Card / Password (Physical Touch Keypad) |
| User Capacity | 10,000 (1:N) |
| Card Capacity | 10,000 (1:N) |
| Fingerprint Template Capacity | 10,000 (1:N) |
| Transaction Capacity | 500,000 |
| Max. User Password Length | 6 to 8 Digits |
| Biometric Verification Speed | < 0.3 sec (Fingerprint) |
| False Acceptance Rate (FAR) | ??? 0.0001% (ZKFingerprint V10.0) |
| False Rejection Rate (FRR) | ??? 0.01% (ZKFingerprint V10.0) |
| Biometric Algorithm | ZKFingerprint V10.0 |
| Support Card Type |
ID Card @125 kHz (Standard) Optional Multi-Tech Module: Module 1: ID & IC & DESFire EV1/EV2 (125 kHz & 13.56 MHz) Module 2: Includes FeliCa, Legic, HID Prox Module 3: Includes HID iClass |
| Communication |
TCP/IP ??1 Wi-Fi (IEEE802.11a/g/n) @ 2.4 GHz Wiegand Input & Output ??1 RS485 (ZKTeco RS485 ??1) Aux Input/Output ??1 each, Electric Lock ??1, Door Sensor ??1, Exit Button ??1, Alarm ??1, Doorbell ??1 |
| Standard Functions |
Webserver, ADMS, DST, 14-digit User ID, Access Levels, Groups, Holidays, Anti Passback, Record Query, Tamper Alarm, Multiple Verification, Video Door Phone, ONVIF (Profile S, T, G, C, Q, A), AC Push, TA Push, Protocol Switch, HTTPS/SSH, T9 Keyboard |
| Optional Functions |
ZSmart, SIP Client (Ver2.0), Wi-Fi, IC Card, Multi-Tech Modules (1, 2, 3), Wireless Doorbell |
| Access Control Interface | RS485 (DM10 Controller - 1 Door Expansion, RS485 Card/Fingerprint Reader) |
| Power Supply | DC 12V 3A |
| Operating Temperature | -5??? to 55??? (23??? to 131???) |
| Operating Humidity | 10% to 90% RH (Non-condensing) |
| Dimensions | 195 ?? 75 ?? 25.35 mm (L??W??H) |
| Gross Weight | 1.13 kg |
| Net Weight | 0.52 kg |
| Supported Software |
Software: ZKBio CVAccess / ZKBioTime Mobile App: ZSmart |
| Installation | Wall-mount (Compatible with Asian / Single / European Gang-Box) |
| Housing Material | Aluminium Alloy |
| Ingress Protection Rating | IP65 (Waterproof/Dustproof), IK04 (Vandal Resistant) |
| Certifications | ISO14001, ISO9001, CE, FCC, RoHS |
Specification
F35 Biometric Access Control Terminal - Specifications
| Model | F35 |
| Display | 2.4" TFT Color LCD Screen (720??1280) |
| Camera | 2MP |
| Field of View | Diagonal: 145?? Horizontal: 118?? Vertical: 62?? |
| Operating System | Linux |
| Hardware |
CPU: 1.2GHz Dual Core RAM: 256MB; ROM: 512MB Speaker: 8?? ??20% @1.0W Microphone: Omni-directional, Sensitivity -29 to -35 dB, SNR 58 dB, Impedance 2.2 k?? Fingerprint Sensor: In-Glass Fingerprint (Z-ID) |
| Authentication Method | Fingerprint / Card / Password (Physical Touch Keypad) |
| User Capacity | 10,000 (1:N) |
| Card Capacity | 10,000 (1:N) |
| Fingerprint Template Capacity | 10,000 (1:N) |
| Transaction Capacity | 500,000 |
| Max. User Password Length | 6 to 8 Digits |
| Biometric Verification Speed | < 0.3 sec (Fingerprint) |
| False Acceptance Rate (FAR) | ??? 0.0001% (ZKFingerprint V10.0) |
| False Rejection Rate (FRR) | ??? 0.01% (ZKFingerprint V10.0) |
| Biometric Algorithm | ZKFingerprint V10.0 |
| Support Card Type |
ID Card @125 kHz (Standard) Optional Multi-Tech Module: Module 1: ID & IC & DESFire EV1/EV2 (125 kHz & 13.56 MHz) Module 2: Includes FeliCa, Legic, HID Prox Module 3: Includes HID iClass |
| Communication |
TCP/IP ??1 Wi-Fi (IEEE802.11a/g/n) @ 2.4 GHz Wiegand Input & Output ??1 RS485 (ZKTeco RS485 ??1) Aux Input/Output ??1 each, Electric Lock ??1, Door Sensor ??1, Exit Button ??1, Alarm ??1, Doorbell ??1 |
| Standard Functions |
Webserver, ADMS, DST, 14-digit User ID, Access Levels, Groups, Holidays, Anti Passback, Record Query, Tamper Alarm, Multiple Verification, Video Door Phone, ONVIF (Profile S, T, G, C, Q, A), AC Push, TA Push, Protocol Switch, HTTPS/SSH, T9 Keyboard |
| Optional Functions |
ZSmart, SIP Client (Ver2.0), Wi-Fi, IC Card, Multi-Tech Modules (1, 2, 3), Wireless Doorbell |
| Access Control Interface | RS485 (DM10 Controller - 1 Door Expansion, RS485 Card/Fingerprint Reader) |
| Power Supply | DC 12V 3A |
| Operating Temperature | -5??? to 55??? (23??? to 131???) |
| Operating Humidity | 10% to 90% RH (Non-condensing) |
| Dimensions | 195 ?? 75 ?? 25.35 mm (L??W??H) |
| Gross Weight | 1.13 kg |
| Net Weight | 0.52 kg |
| Supported Software |
Software: ZKBio CVAccess / ZKBioTime Mobile App: ZSmart |
| Installation | Wall-mount (Compatible with Asian / Single / European Gang-Box) |
| Housing Material | Aluminium Alloy |
| Ingress Protection Rating | IP65 (Waterproof/Dustproof), IK04 (Vandal Resistant) |
| Certifications | ISO14001, ISO9001, CE, FCC, RoHS |
