Model :
SKU : MB-ASU PRI B760M-A CSM

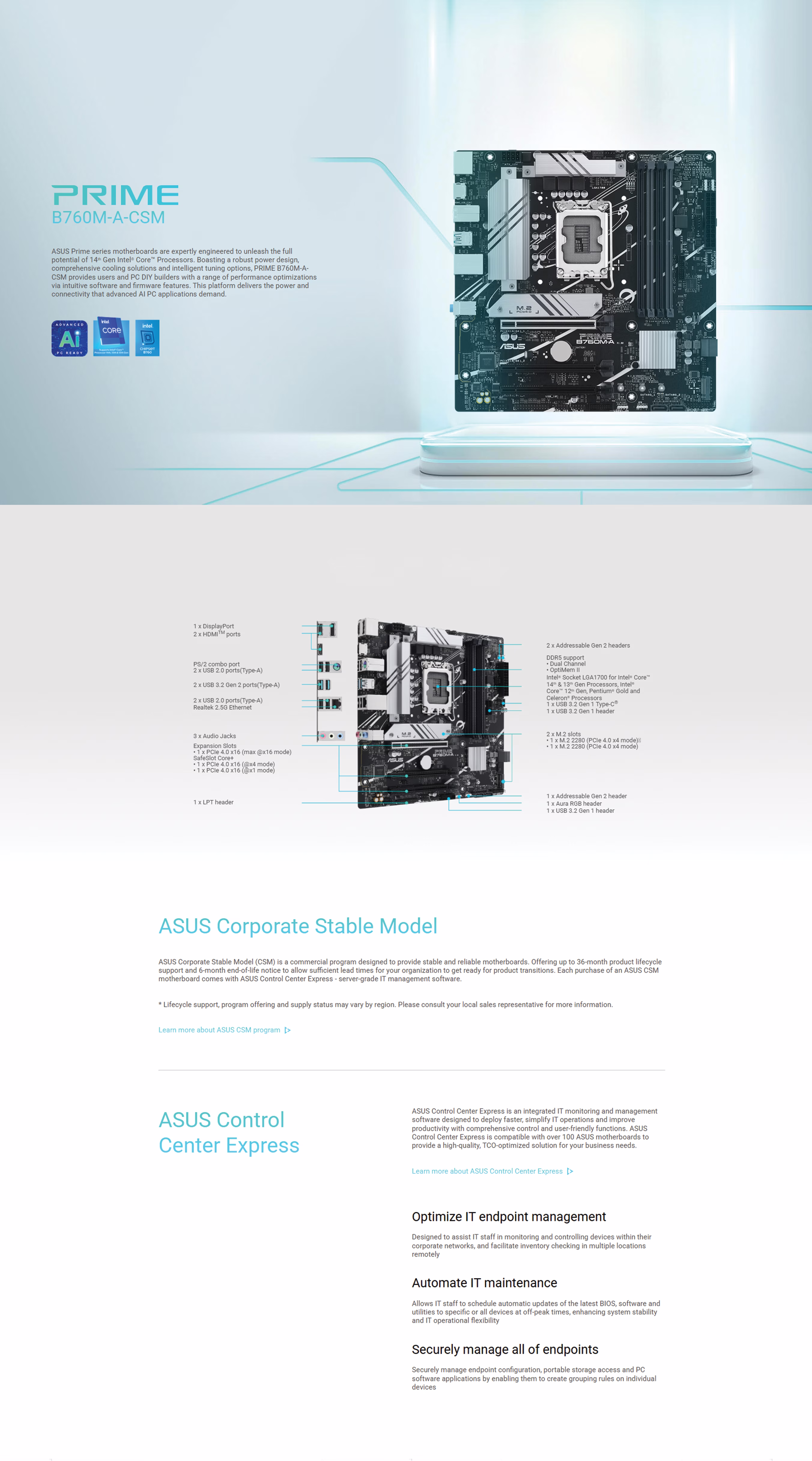

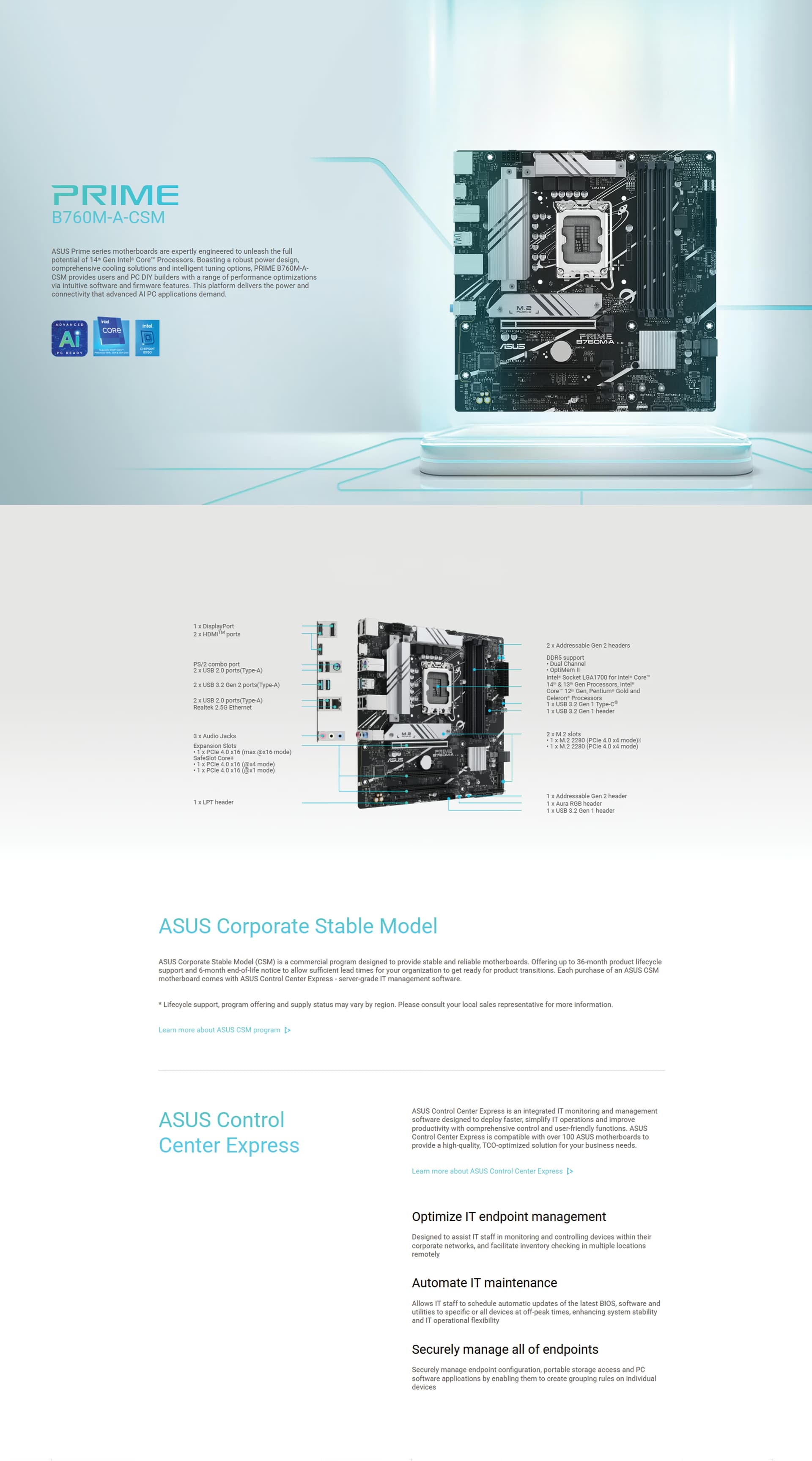

Intel® B760 (LGA 1700) mATX motherboard with PCIe 4.0, DDR5, two M.2 slots, Realtek 2.5Gb Ethernet, DisplayPort, Dual HDMI™, SATA 6 Gbps, rear USB 3.2 Gen 2, front USB 3.2 Gen 1 Type-C®, Aura Sync
Ready for Advanced AI PC: Designed for the future of AI computing, with the power and connectivity needed for demanding AI applications
Intel® LGA 1700 Socket: Ready for 14th, 13th and 12th Gen Intel® processors
Ultrafast Connectivity: PCIe 4.0, two M.2 slots, Realtek 2.5Gb Ethernet, rear USB 3.2 Gen 2, front USB 3.2 Gen 1 Type-C®
Comprehensive Cooling: VRM heatsinks, M.2 heatsink, PCH heatsink, hybrid fan headers and Fan Xpert 2+
Exclusive Memory Technology: ASUS Enhanced Memory Profile II and ASUS OptiMem II
Aura Sync RGB Lighting: Onboard Addressable Gen 2 headers and Aura RGB header for RGB LED strips, easily synced with Aura Sync-capable hardware
ASUS Control Center Express: Real-time IT monitoring and management software for enhanced data protection
Design & Ergonomics
This Micro-ATX board is designed for versatility. It fits perfectly in compact, space-saving cases without sacrificing expansion capability. The layout is optimized for ease of installation, featuring well-placed headers for fans, RGB lighting, and front-panel connectors. The inclusion of DisplayPort and HDMI outputs allows for flexible multi-monitor configurations without the immediate need for a discrete graphics card, ideal for productivity-focused builds.
Compatibility / Use Cases
This board is the ideal choice for business professionals requiring a stable 24/7 workstation, or power users building a compact gaming rig that utilizes the latest DDR5 platform. Its combination of stability-focused CSM features and performance-focused gaming features (like Aura Sync and PCIe 4.0) makes it one of the most versatile boards in the B760 lineup.
Why This Product Stands Out
The ASUS Prime B760M-A CSM stands out because it offers the perfect bridge between consumer-grade performance and enterprise-grade reliability. By choosing the CSM line, you are investing in a product that is prioritized for its long-term support and stable manufacturing, while still benefiting from the advanced feature set of the B760 chipset and DDR5 architecture.
Feature | Specification |
|---|---|
Model | ASUS PRIME B760M-A-CSM |
Form Factor | Micro-ATX (mATX) |
Processor Socket | Intel® Socket LGA1700 |
CPU Support | Intel Core 14th, 13th, & 12th Gen Processors |
Chipset | Intel® B760 |
Memory Capacity | 4x DDR5 DIMM Slots (Dual-Channel, Max 128GB, Non-ECC Un-buffered) |
Memory Overclocking | Up to DDR5-7200+ (O.C.) MHz | Supports Intel® XMP | OptiMem II |
Expansion Slots | From CPU: 1x PCIe 4.0 x16 slot From B760 Chipset: 1x PCIe 4.0 x16 slot (runs x4 mode), 1x PCIe 4.0 x16 slot (runs x1 mode) |
Storage Slots | M.2_1 (CPU): Type 2242-2280 (PCIe 4.0 x4 mode) M.2_2 (Chipset): Type 2242-2280 (PCIe 4.0 x4 mode) SATA Ports: 4x SATA 6Gb/s ports (Supports RAID 0, 1, 5, 10) |
Networking & LAN | 1x Realtek® 2.5 Gb Ethernet | ASUS LANGuard |
Rear USB Interface | 2x USB 3.2 Gen 2 (Type-A), 4x USB 2.0 (Type-A) |
Front USB Expansion | 1x USB 3.2 Gen 1 Type-C® Header, 2x USB 3.2 Gen 1 Headers (4 ports), 3x USB 2.0 Headers (5 ports) |
Audio Core Platform | Realtek 7.1 Surround Sound HD Audio Codec (Up to 24-Bit/192 kHz) |
Rear I/O Video Ports | 2x HDMI 2.1 (4K @ 60Hz), 1x DisplayPort 1.4 (4K @ 60Hz) |
Hardware Diagnostics | ASUS Q-LED Core (Basic status light mapping via power LED pulses) |
Enterprise Features | Corporate Stable Model (CSM) | ASUS Control Center Express (ACCE) included |
