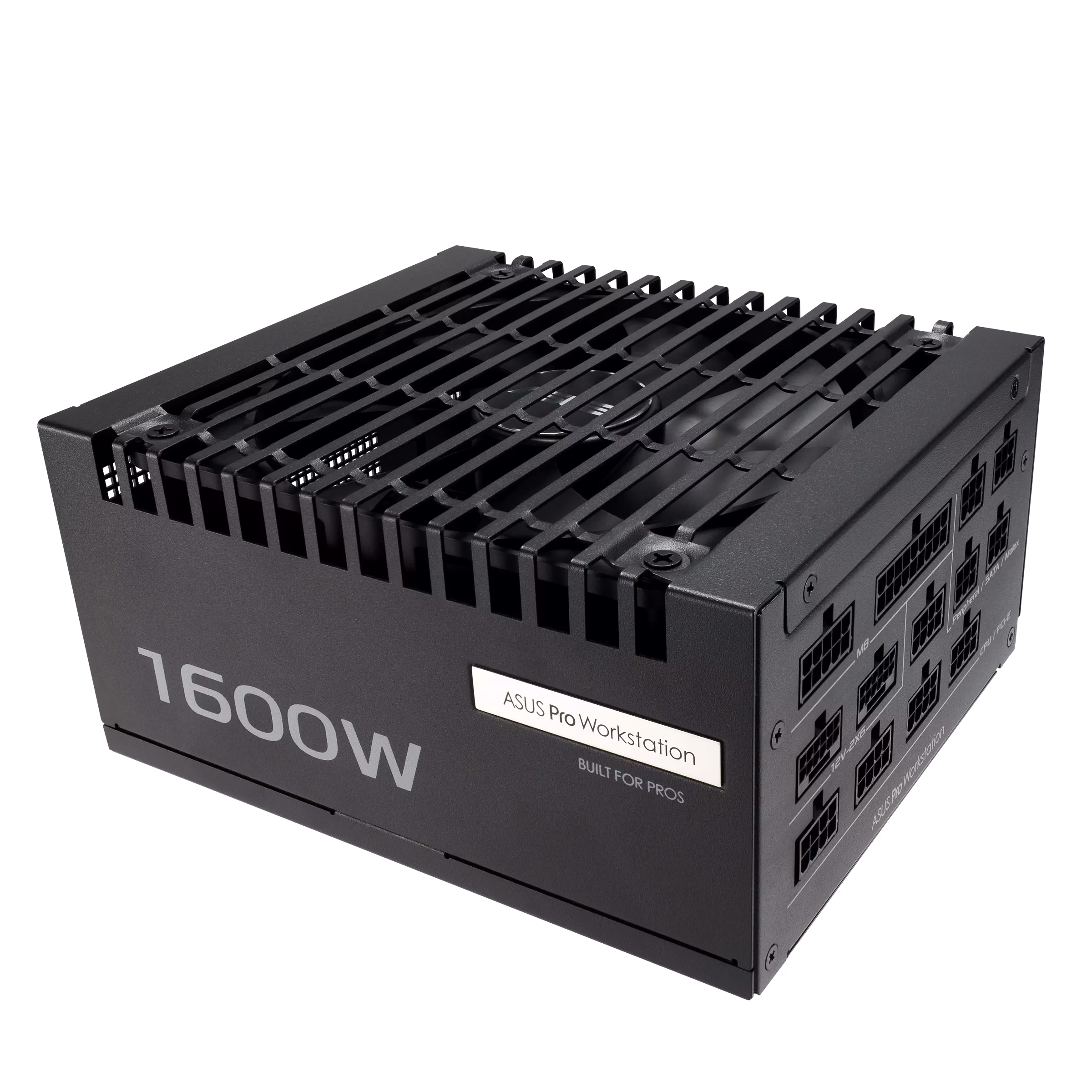

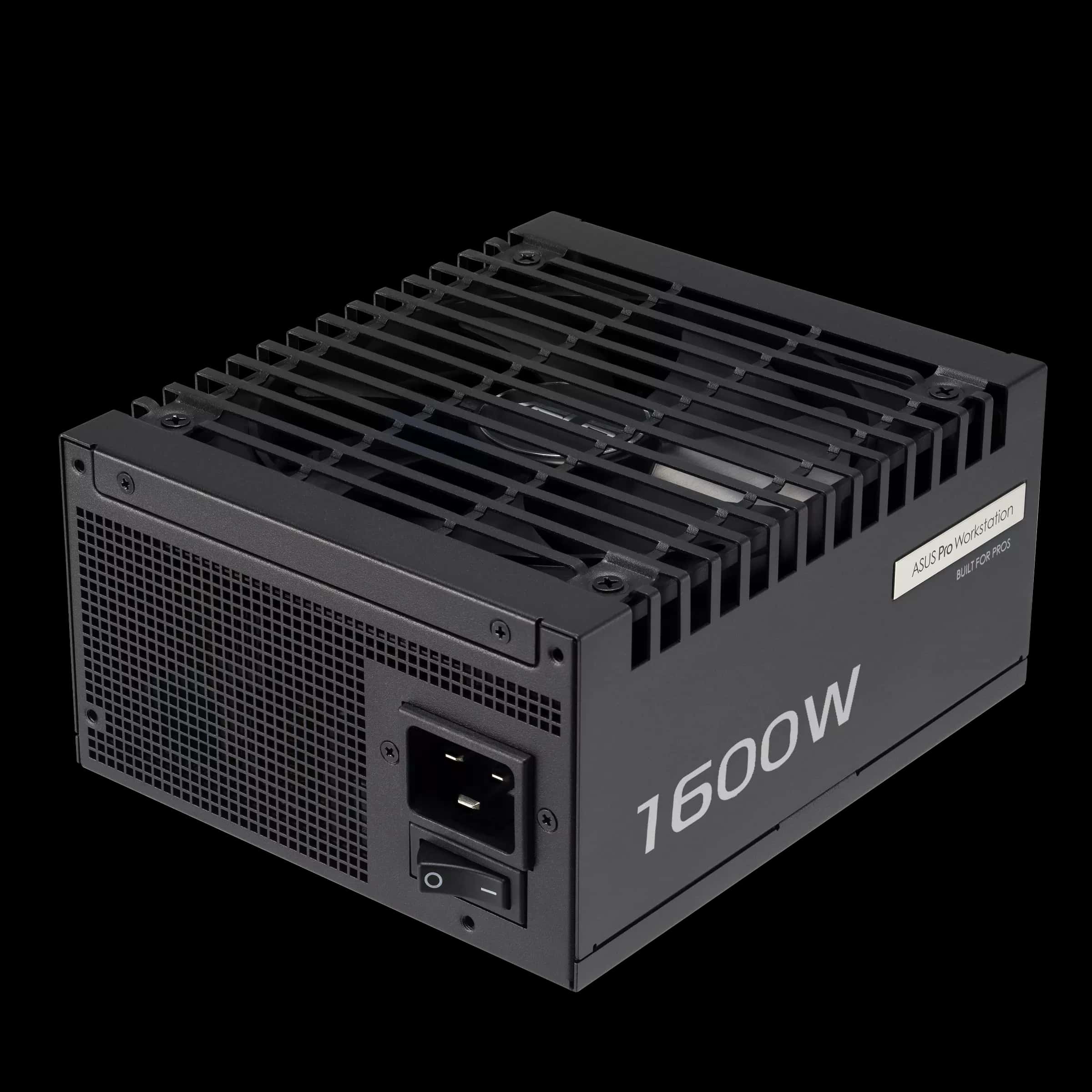

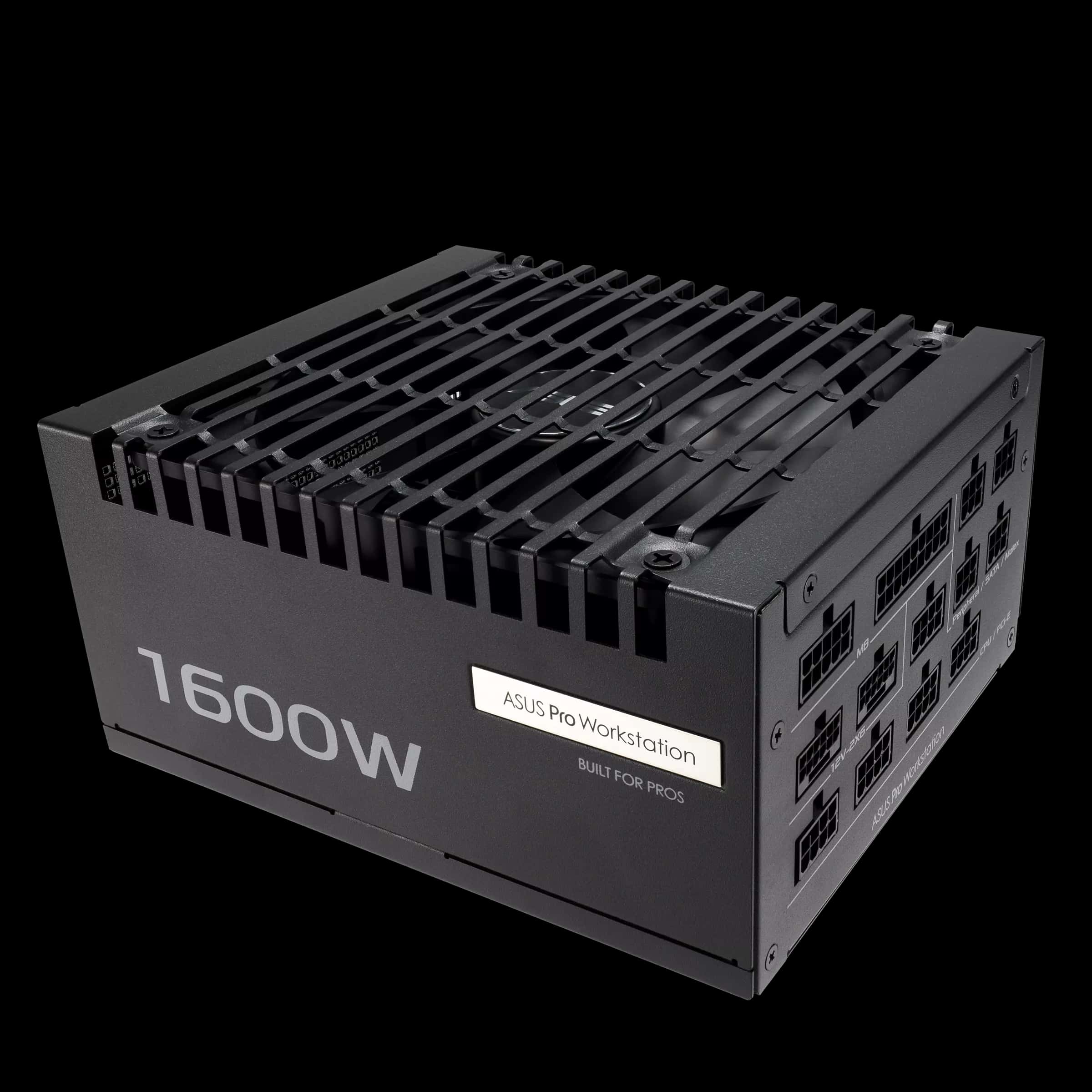

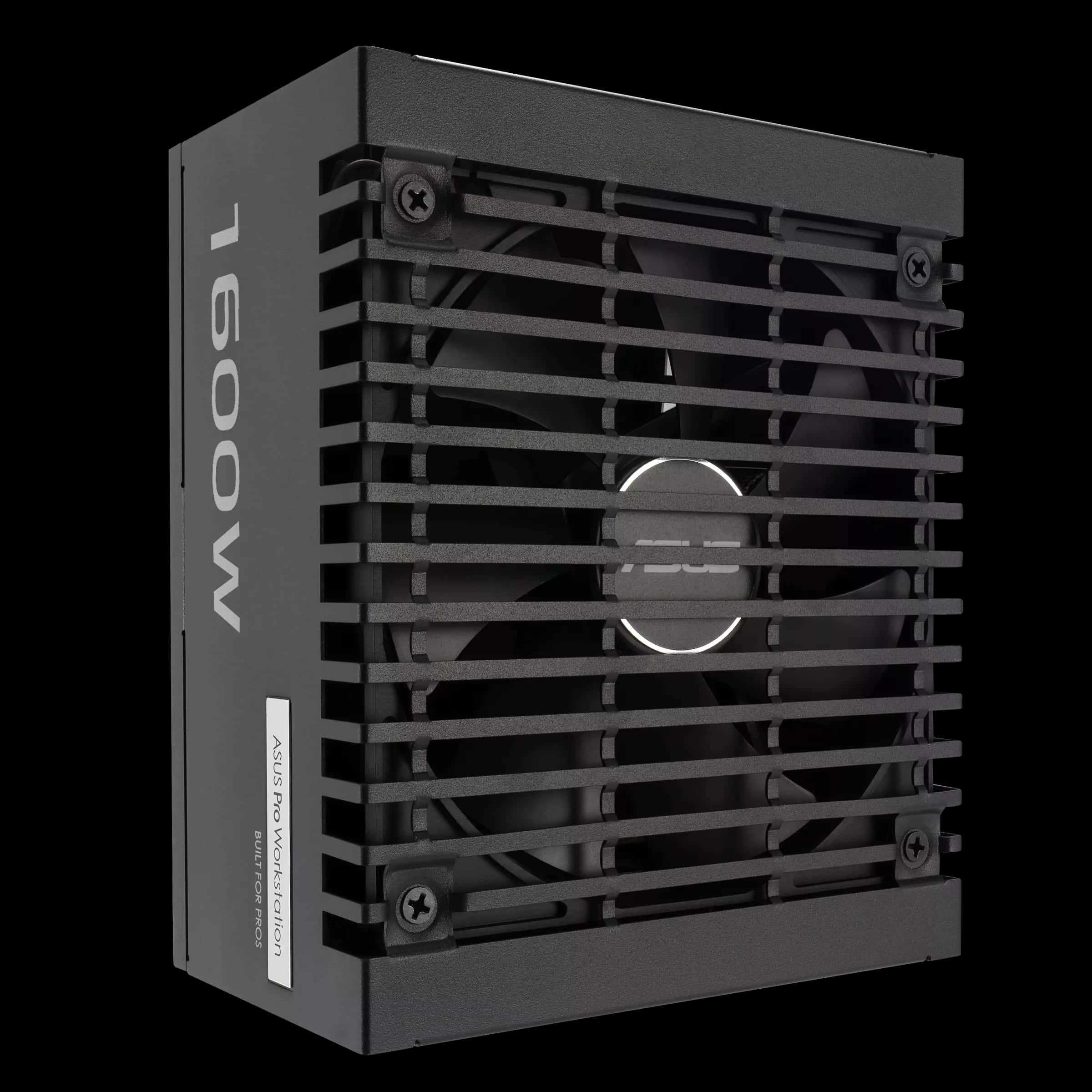

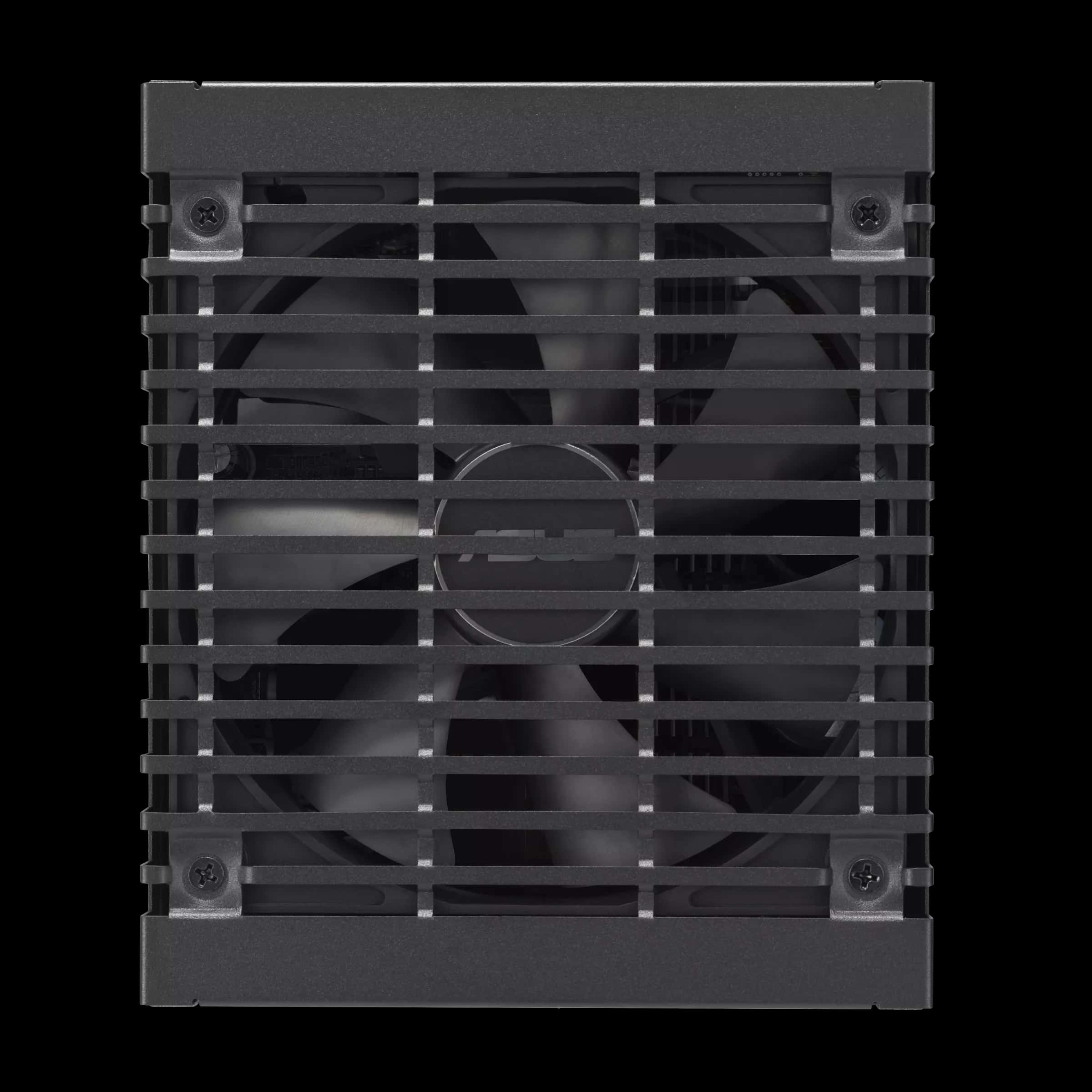

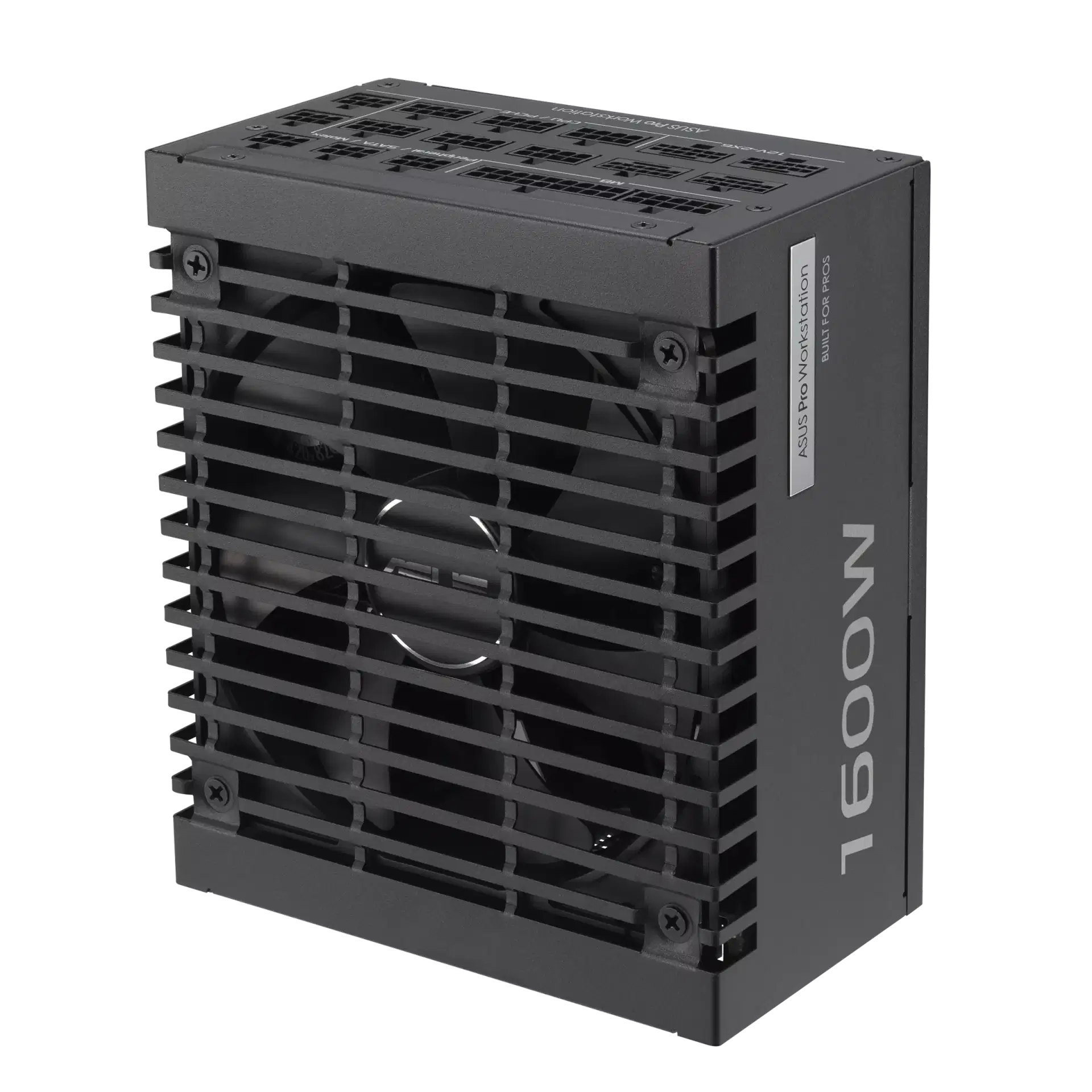

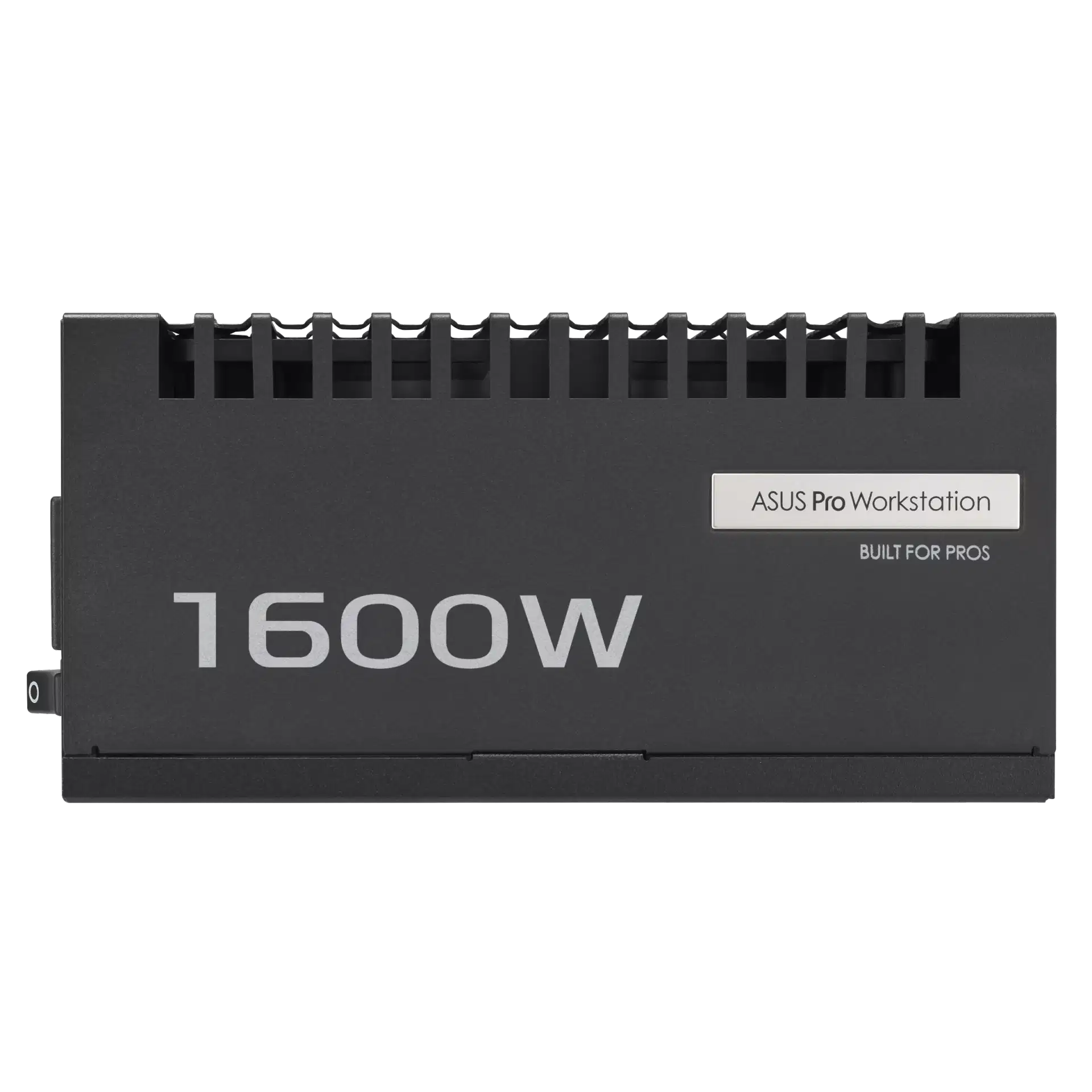

ASUS Pro WS 1600W Platinum Power Supply (PSU), ATX 3.1 Compatible, PCIe 5.1 Ready, Heavy-duty PSU, 80 PLUS Platinum certified, Dual-ball fan bearings | 90YE00Z2-B0NA00
Model : ASUS Pro WS Platinum Power Supply
SKU : PS-ASUS PRO WS 1600W
Power (W) :
1600W
About this item
0
Inclusive of VAT
Delivery to
FREE scheduled delivery as soon as Loading...
Sold and shipped by: Adarc computers
1
About this item
Description

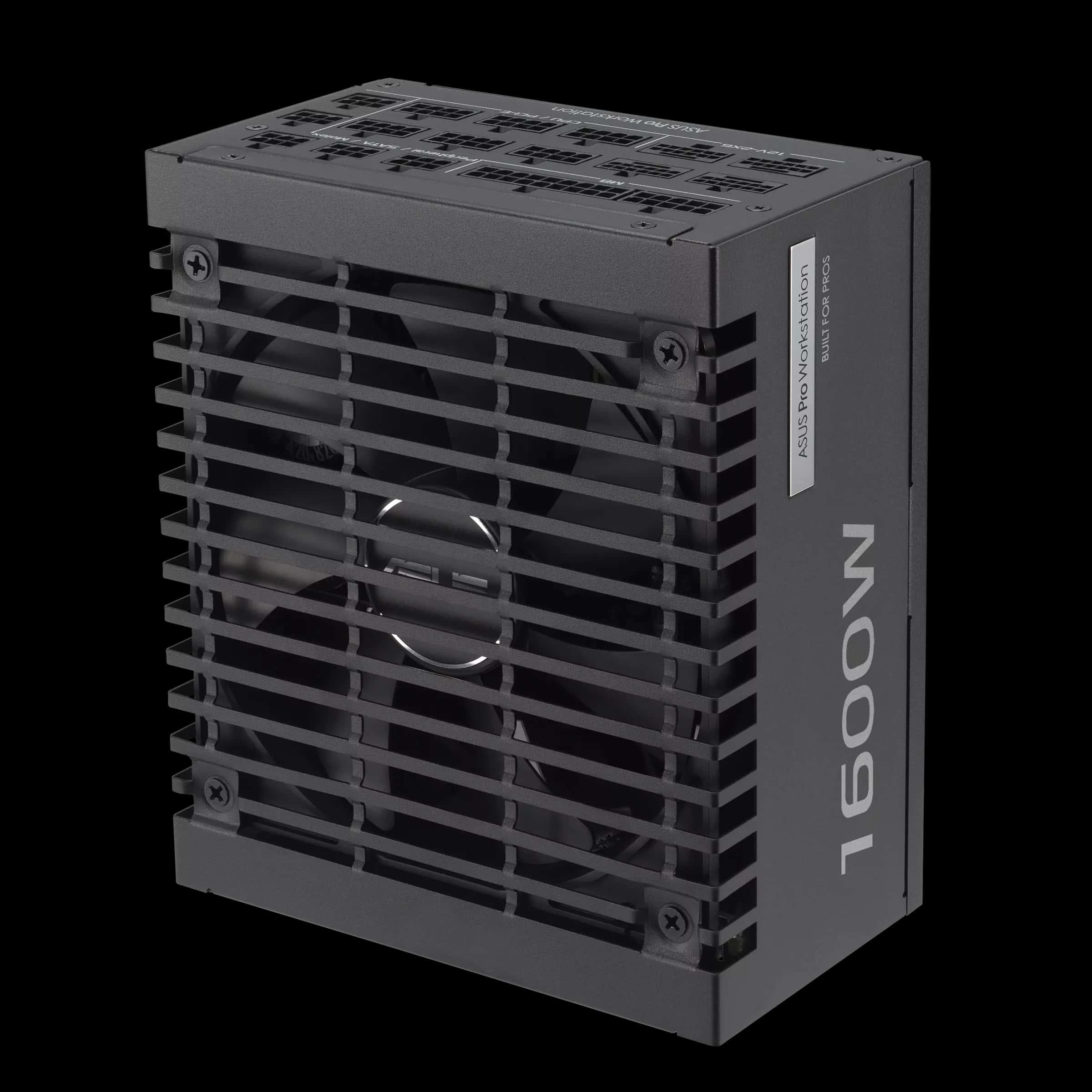

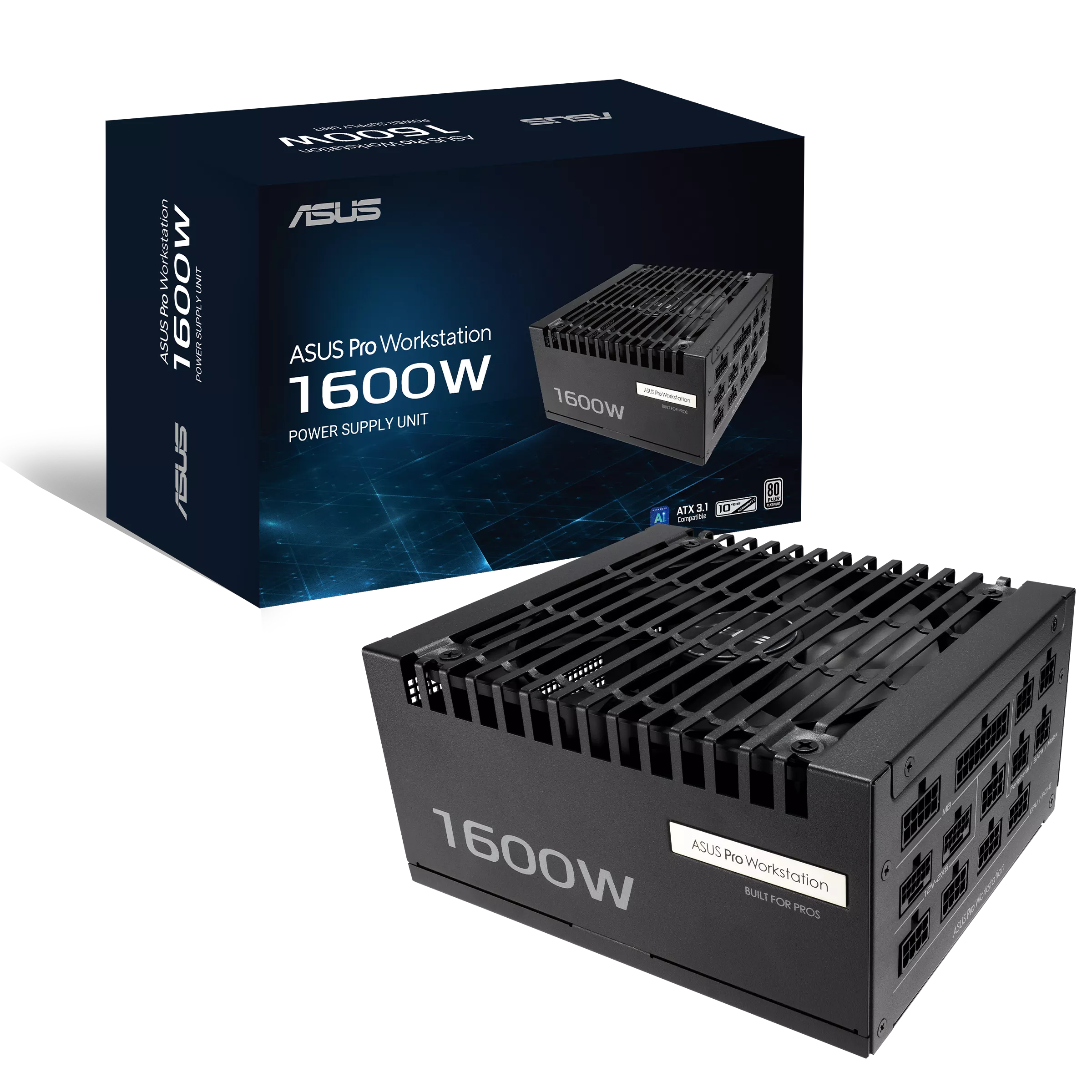

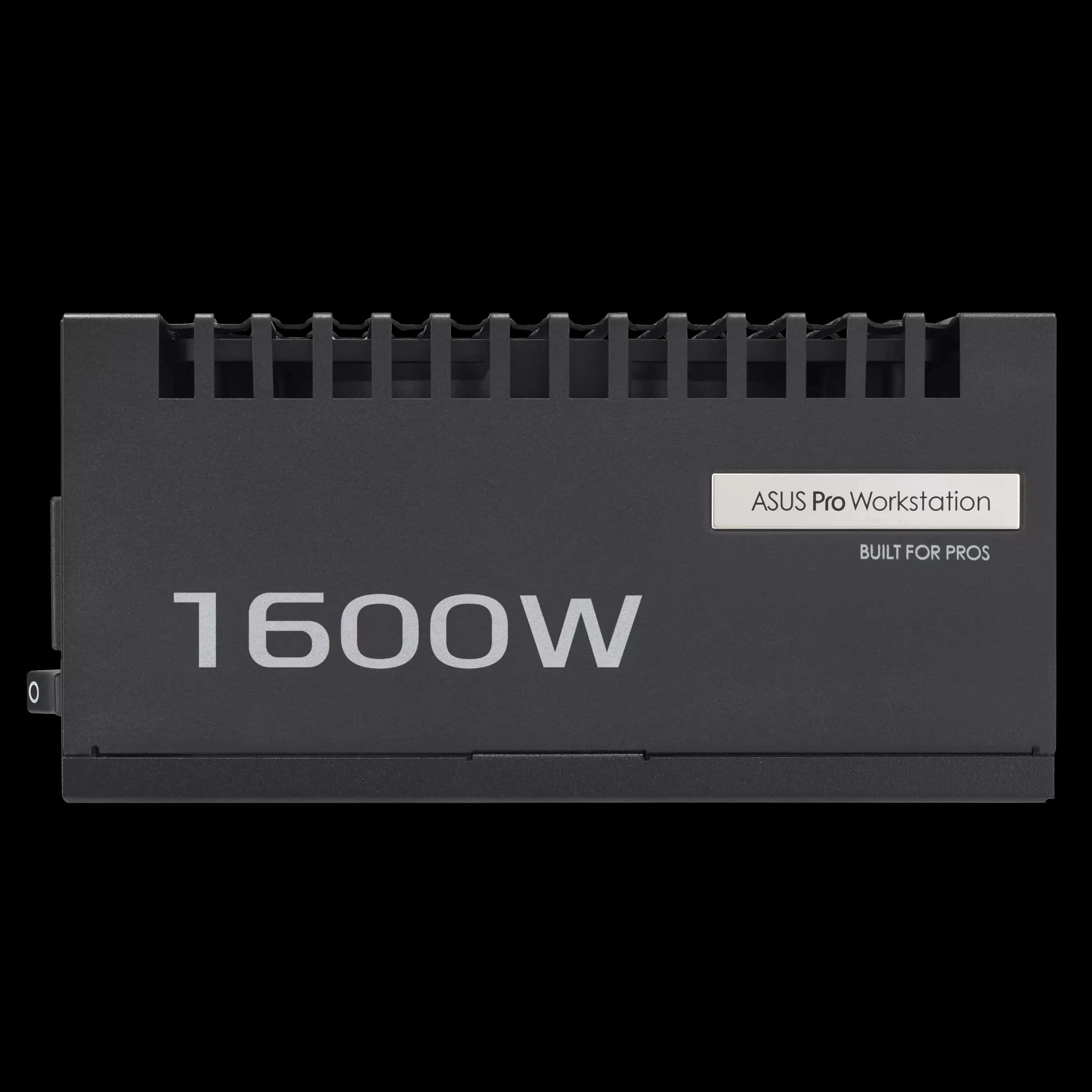

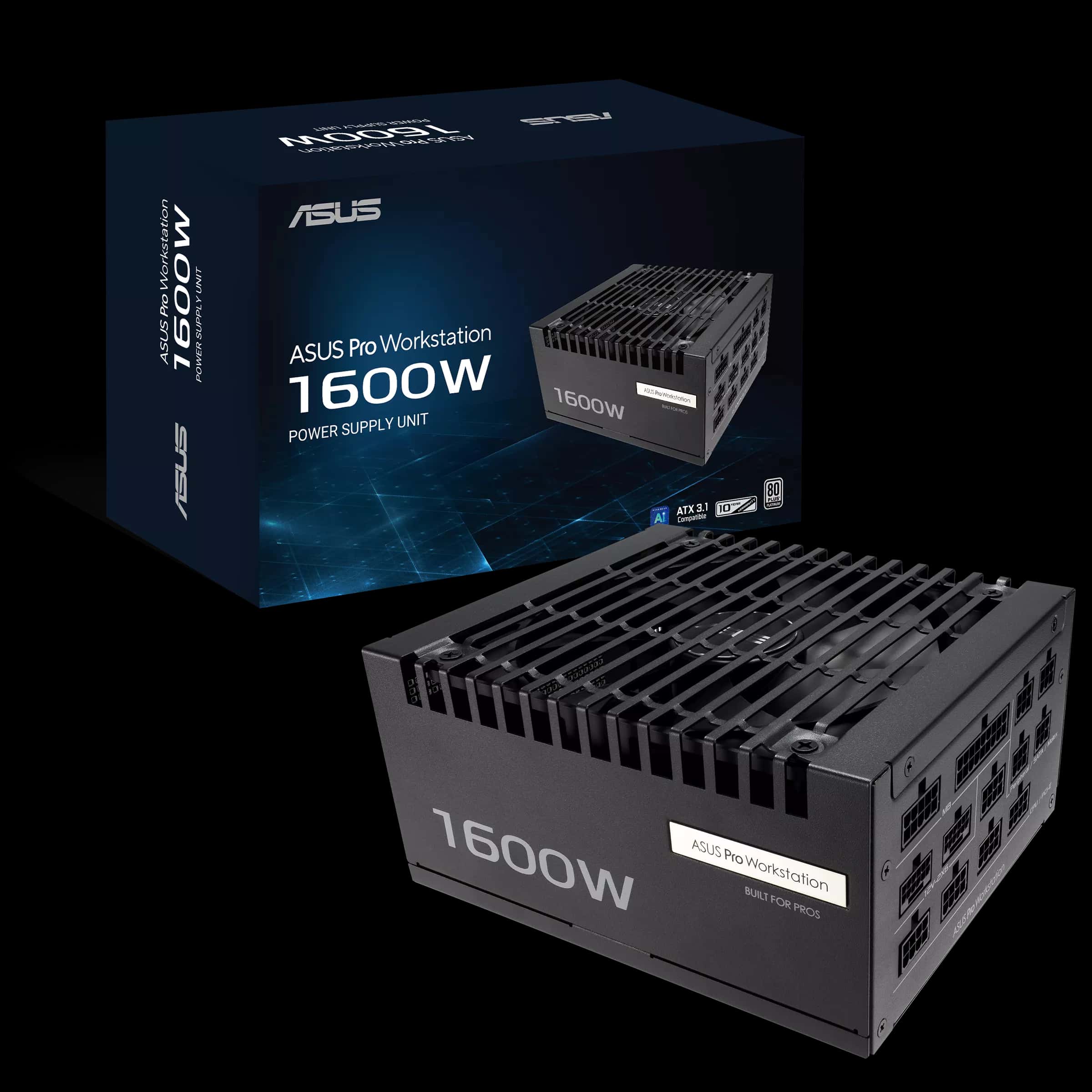

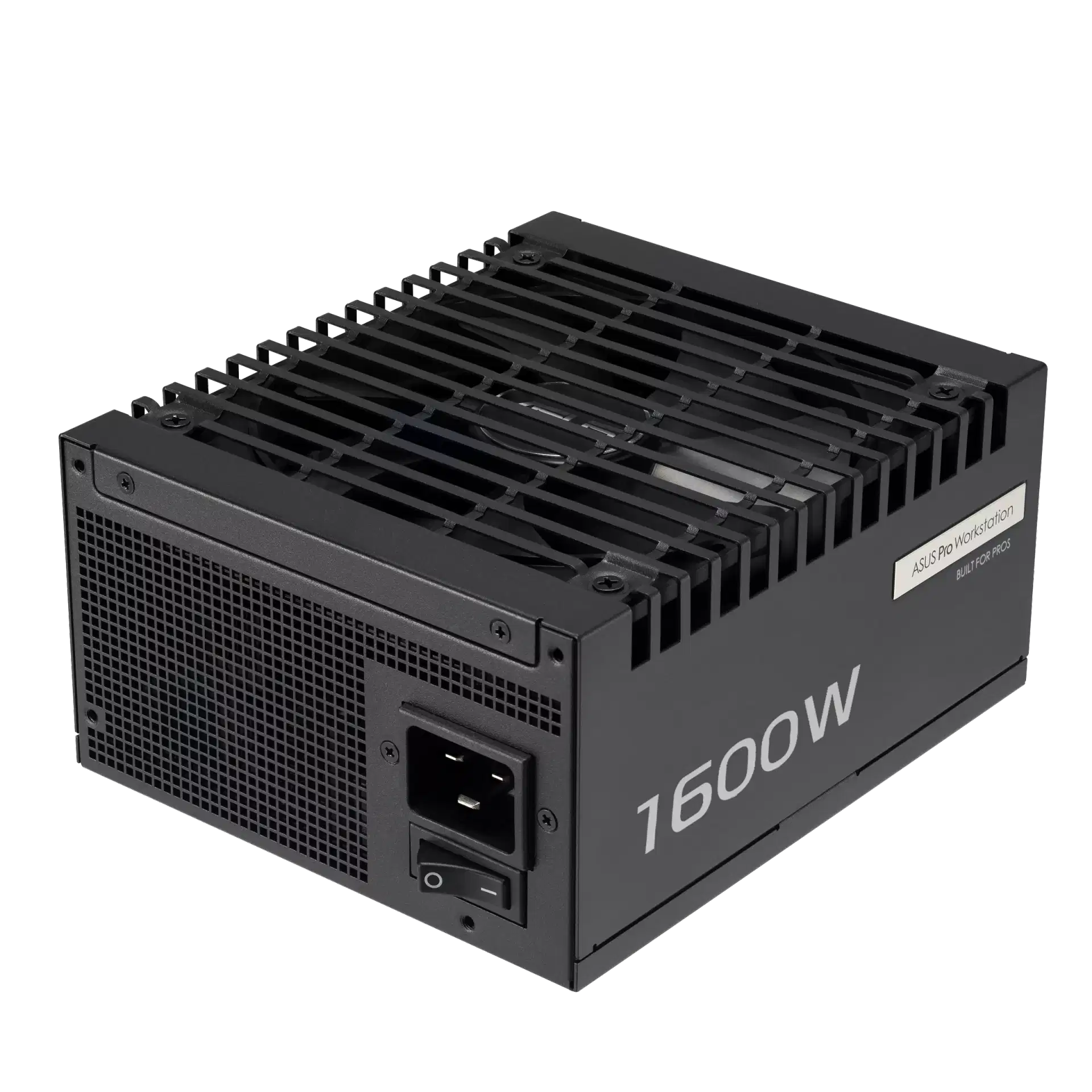

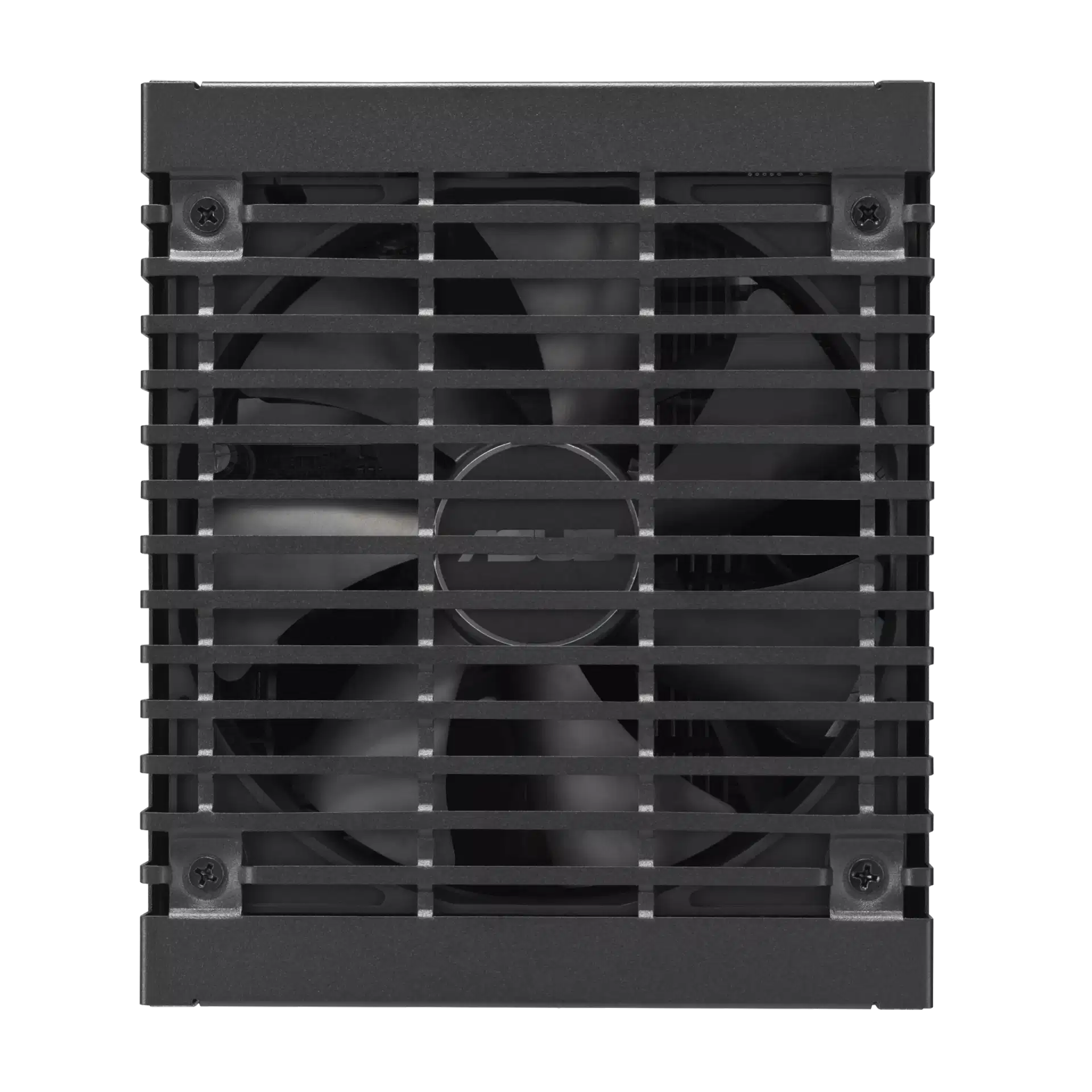

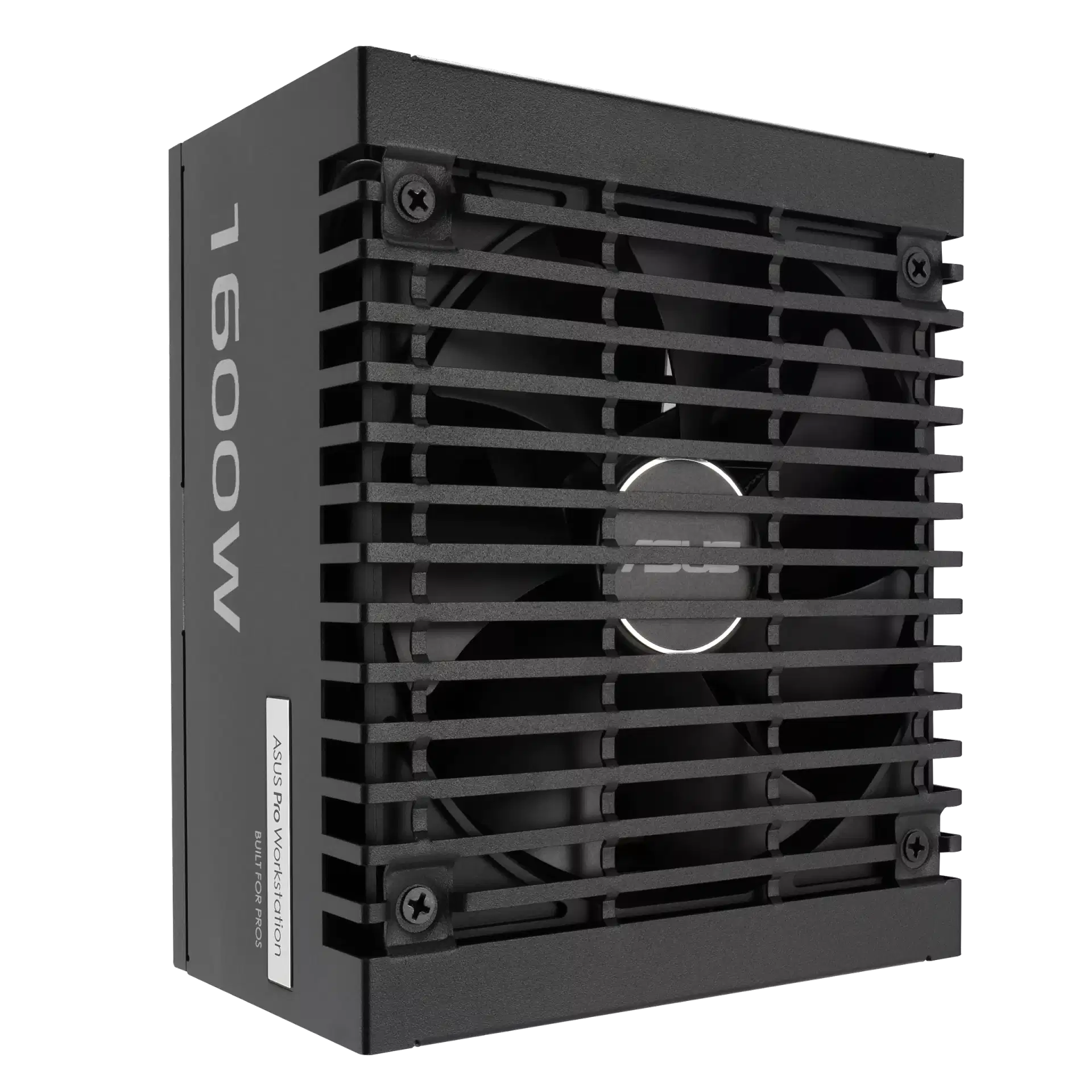

ASUS Pro WS 1600W Platinum
The ASUS Pro WS 1600W Platinum PSU is engineered to support up to two GeForce RTX™ 5090 graphics cards. It also features 80 PLUS Platinum certification, high-performance copper pins, dual-ball fan bearings, etched cables, rock-solid voltage stability and advanced power delivery, making it an ideal choice for AI solutions, deep learning and IT management.
Heavy-Duty Power
Designed to reliably deliver the thousands of watts necessary to power up to two NVIDIA® GeForce RTX™ 5090 graphics cards, the ASUS Pro WS 1600W Platinum enables breakthrough performance that meets the needs of demanding AI workloads.
Note: Electrical system wattage must meet product specifications to avoid overload or power trips.
Specification
ASUS-PRO-WS-1600P Specifications
| Model | ASUS-PRO-WS-1600P |
| Intel Form Factor | ATX12V |
| PFC Type | Active PFC |
| ATX Standard | ATX 3.1 |
| Dimensions | 175 x 150 x 86 mm |
| Efficiency | 80Plus Platinum |
| Protection Features | OPP/OVP/UVP/SCP/OCP/OTP |
| Hazardous Materials | ROHS |

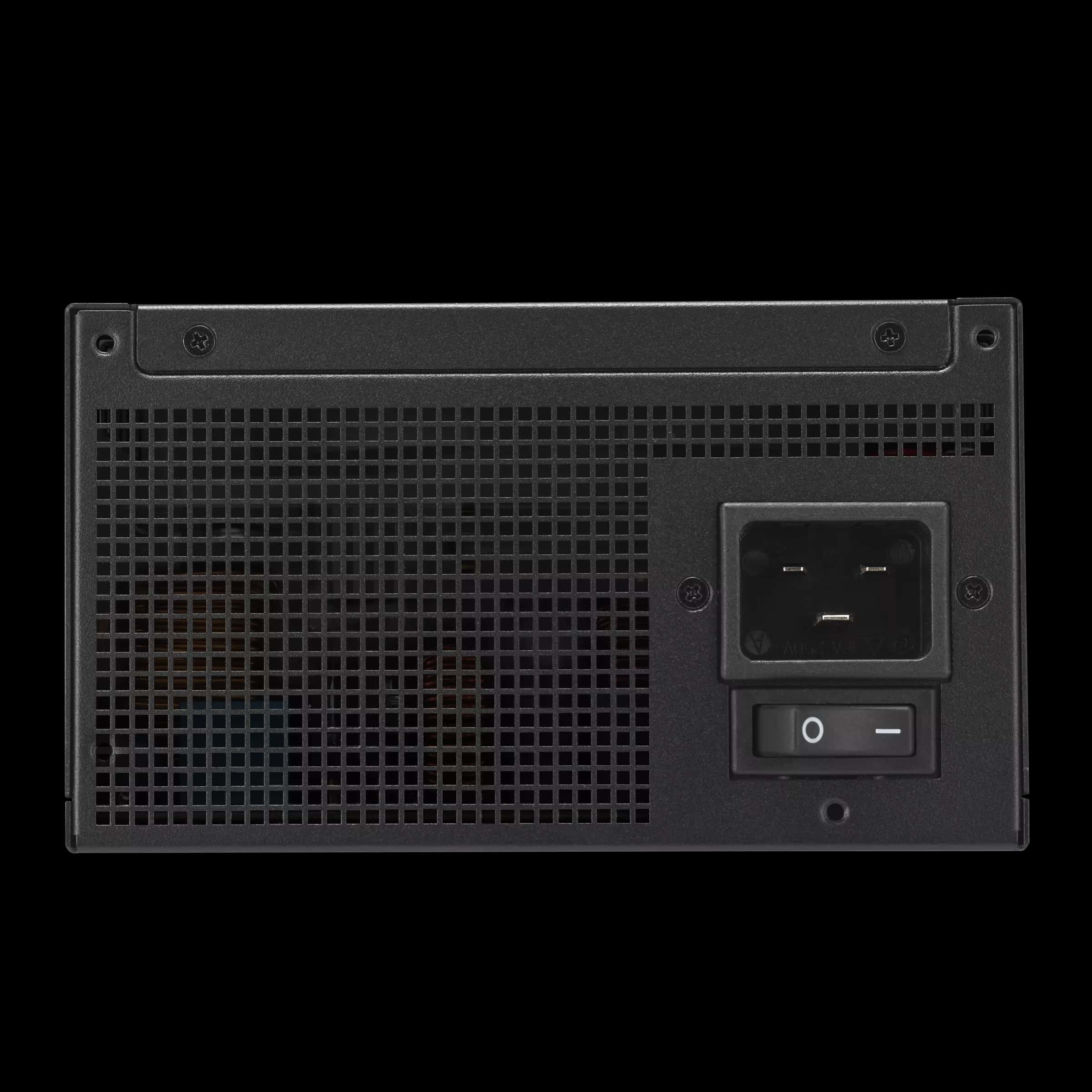

| AC Input Range | 200-240Vac |
| DC Output Voltage | +3.3V +5V +12V -12V +5Vsb |
| Maximum Load | 25A 25A 133.3A 0.8A 3A |
| Combined Load | 130W 130W 1600W 9.6W 15W |
| Total Output | 1600W |

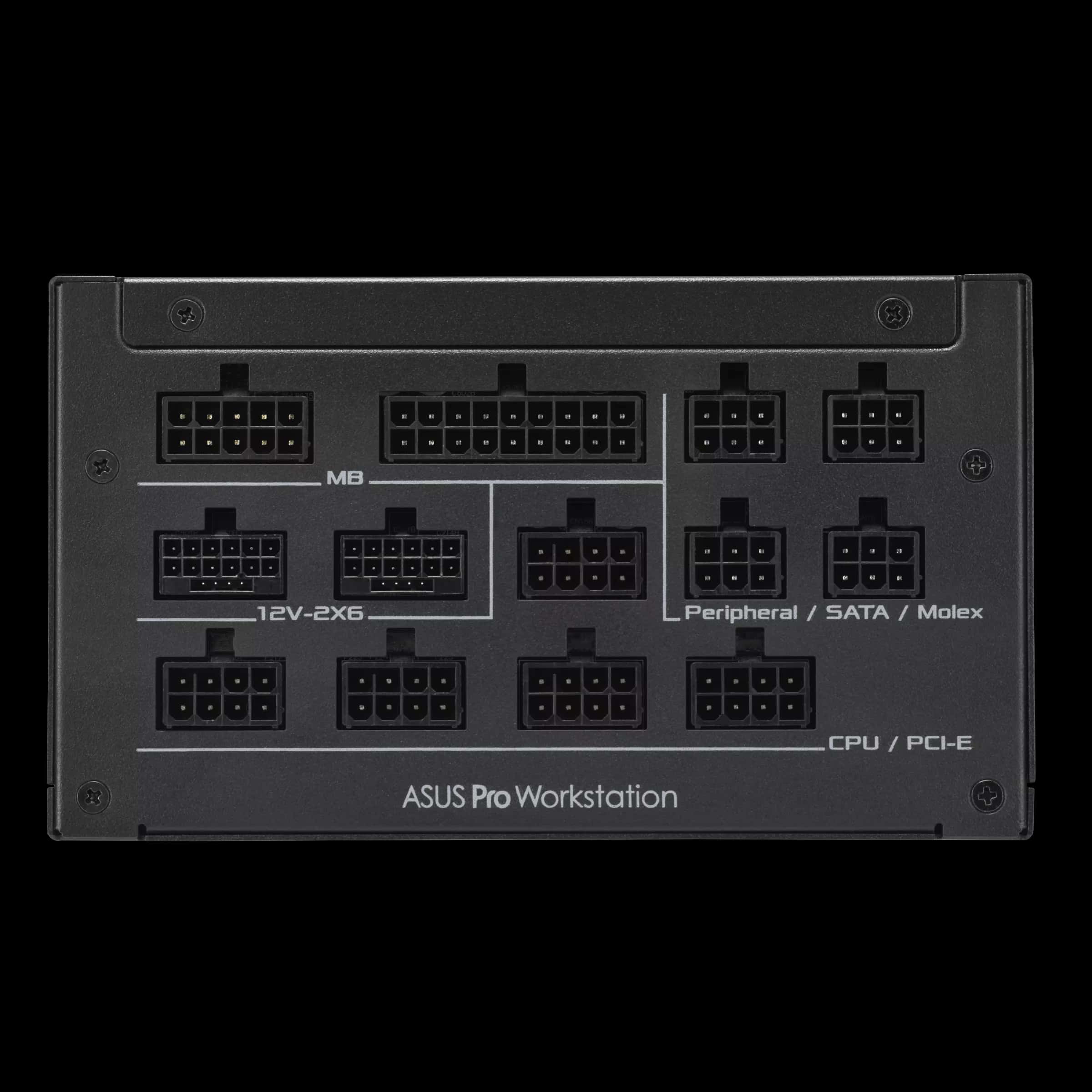

| Cable Connectors | MB 24/20-pin x 1 CPU 4+4-pin x 2 PCIE 5.1 16-pin x 2 PCIE 6+2-pin x 4 SATA x 9 PERIPHERAL x 3 |
| Package Contents | Power Cord x 1 Motherboard Power Cable x 1 (610mm) CPU Cable x 2 (1000mm) PCI-E Gen 5.1 16-pin Cable x 2 (750mm) PCI-E 1-to-1 Cable x 2 (750mm) PCI-E 1-to-2 Cable x 1 (750+100mm) SATA 1-to-3 Cable x 3 (400+120+120mm) Peripheral 1-to-3 Cable x 1 (400+150+150mm) Chassis Screws Package x 1 Cable Tie x 6 User Manual x 1 |
| Weight | 2.0 kg (single PSU) |
| 0dB Technology | No |
0
Inclusive of VAT
Delivery to
FREE scheduled delivery as soon as Loading...
Sold and shipped by: Adarc computers
1
Home/Power Supplies/ASUS Pro WS 1600W Platinum Power Supply (PSU), ATX...
Similar Products
ASUS Pro WS 2200W Platinum Power Supply (PSU), Heavy-duty PSU, ATX 3.1 Compatible, PCIe 5.1 ready, 80 PLUS Platinum, Dual-ball fan bearings, up to 4x NVIDIA GeForce RTX 5080 Graphics Cards | 90YE00Z1-B0NA00
2999.00
New Arrival
ASUS Pro WS 3000W Platinum Power Supply PSU, Heavy-duty PSU, ATX 3.1 compatible, PCIe 5.1 ready, Dual-ball fan bearings, 80 PLUS Platinum certified, Supports up to 4x GeForce RTX 5090 Graphics Cards | 90YE00Z0-B0EA00
4298.99

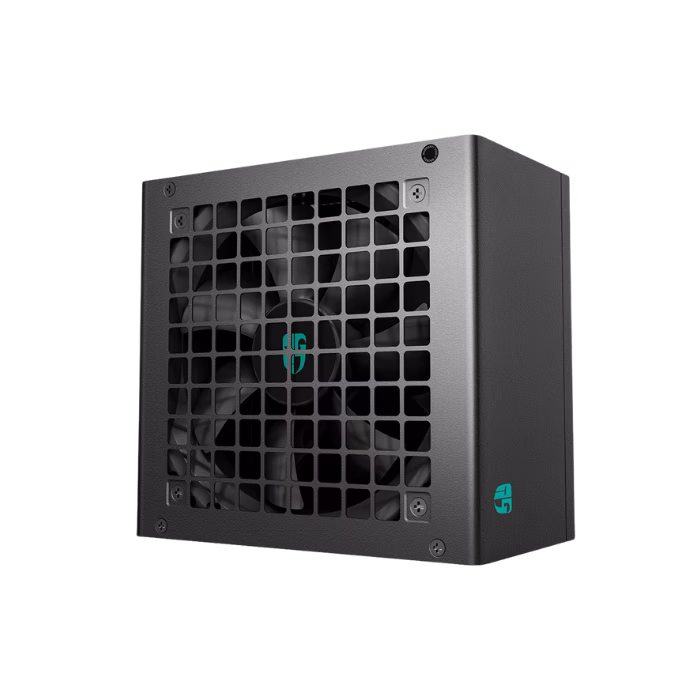

DeepCool GAMER STORM PF700X 700W ATX2.52 80 PLUS CYBENETICS Bronze Power Supply (PSU), Taiwanese + Japanese Electrolytic Capacitors, Black | R-PF700X-HD0B-JGUK
189.00

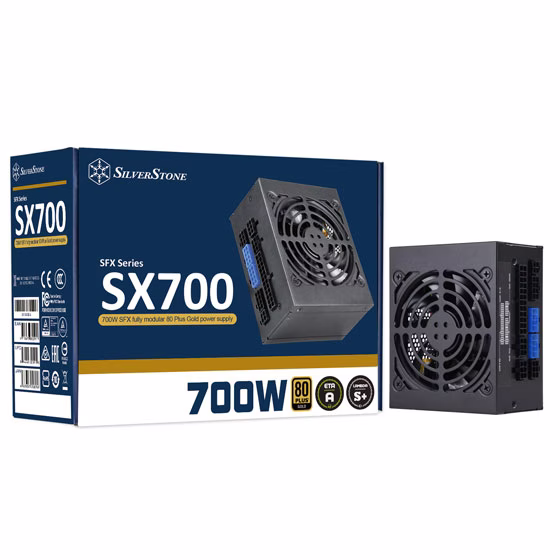

SilverStone SX700-G SFX Fully Modular 700W 80 PLUS Gold Power Supply, Active PFC, Silent FDB Fan, Black | SST-SC700-G
