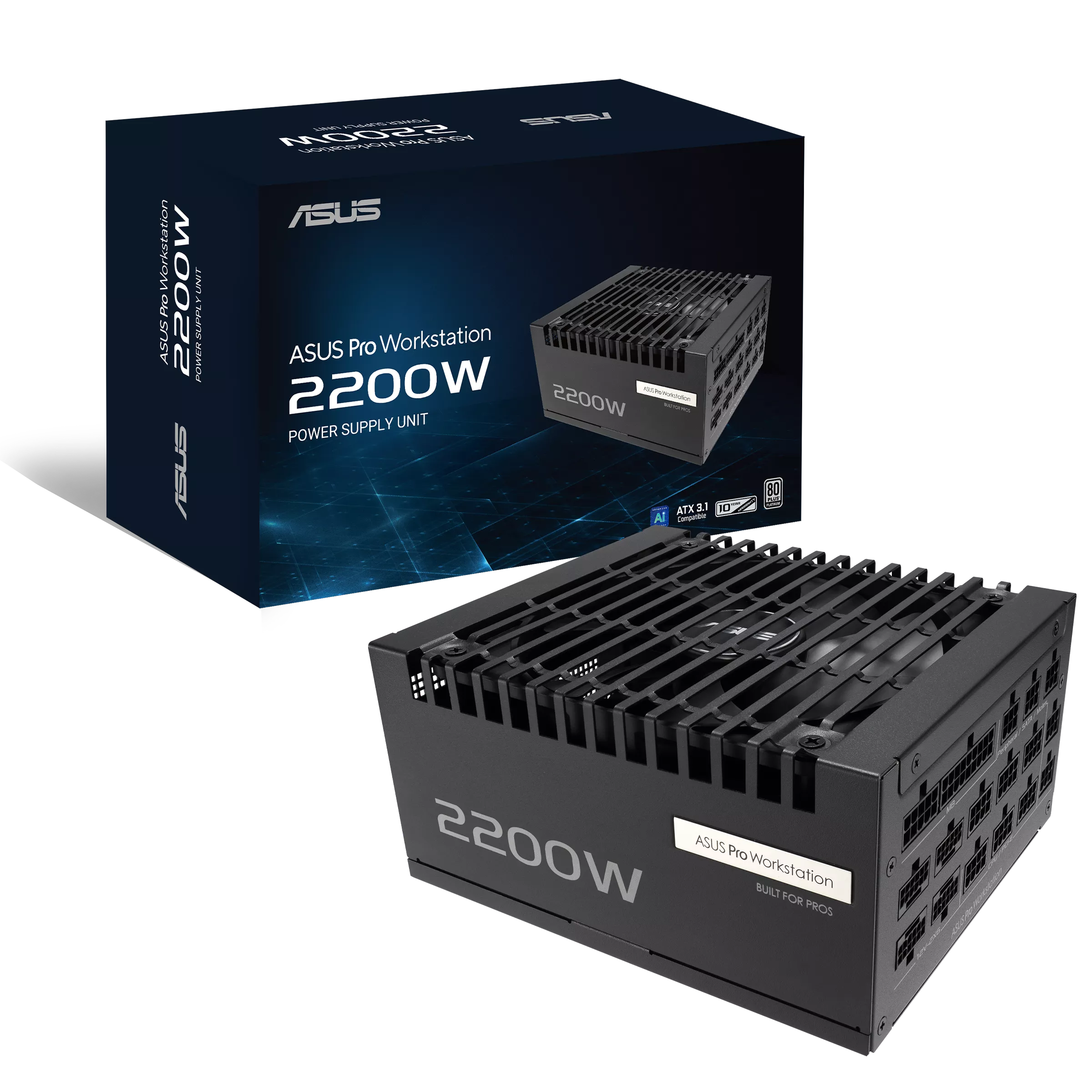

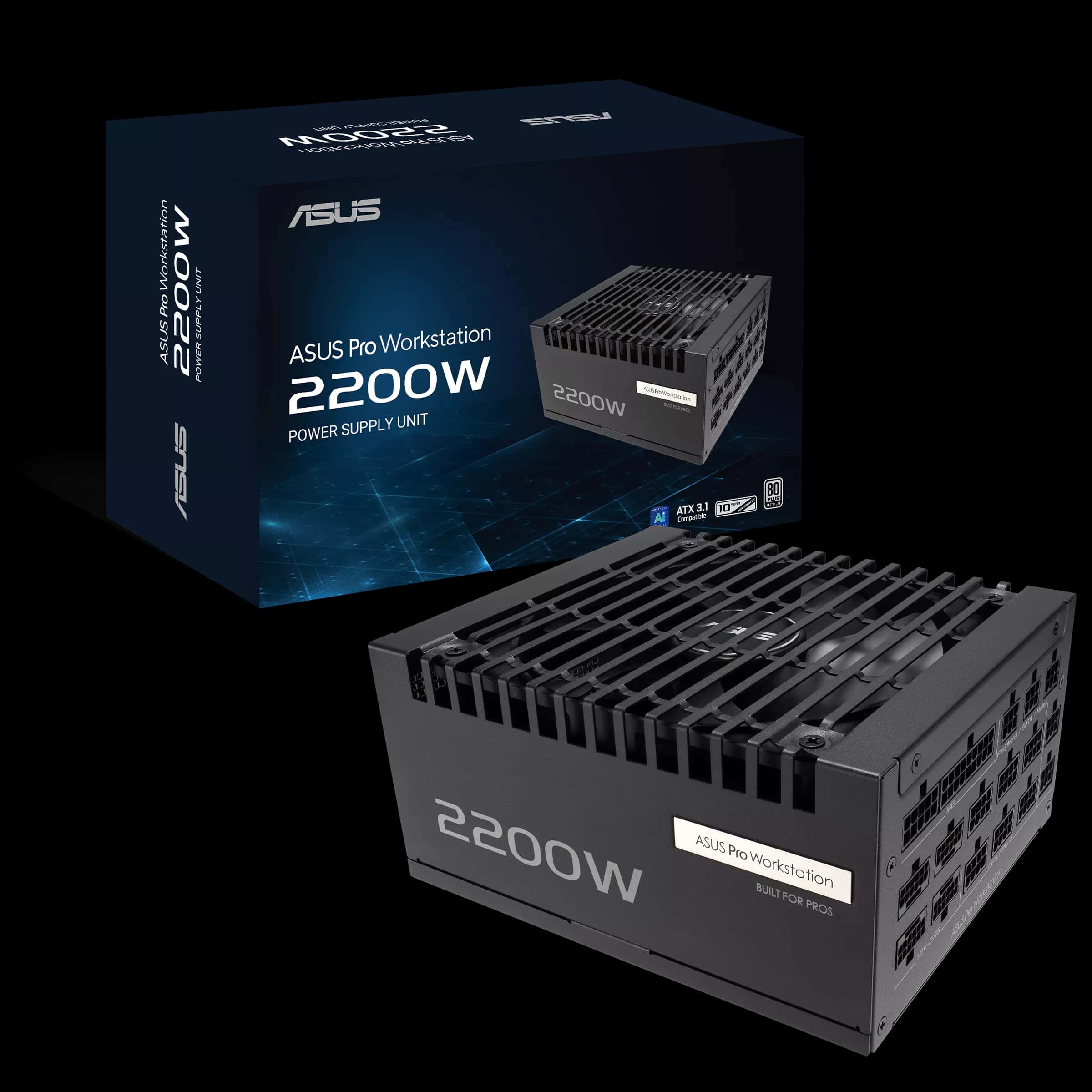

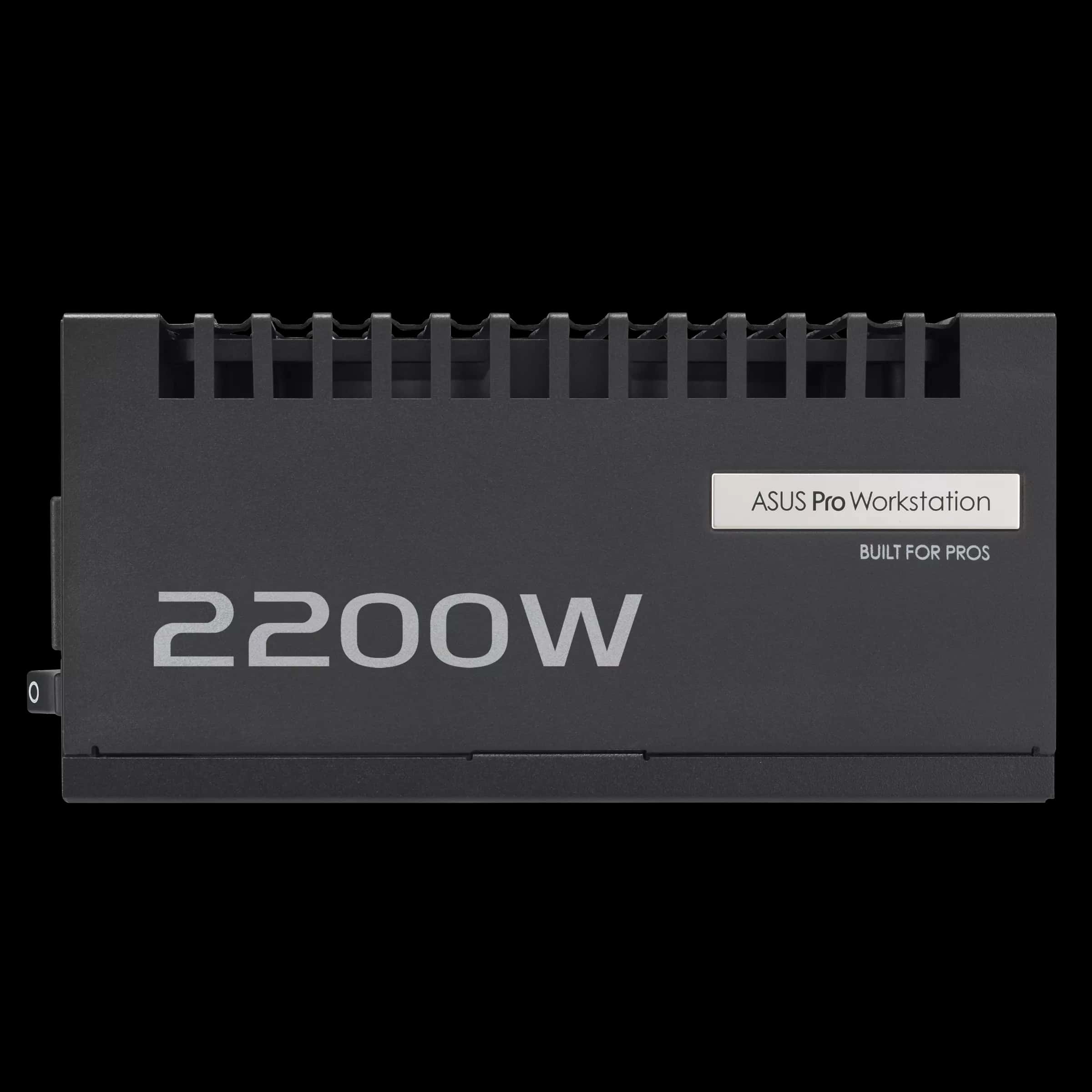

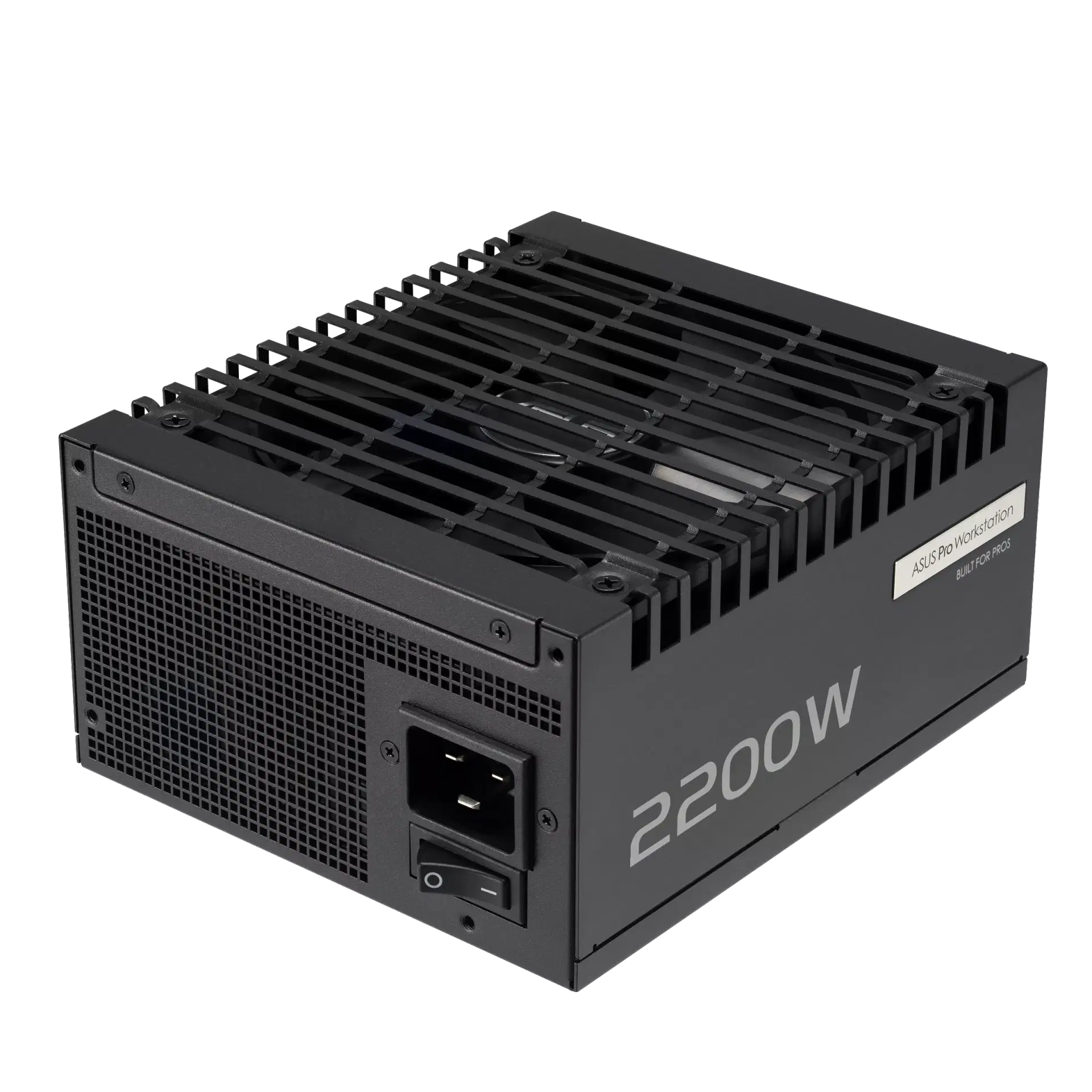

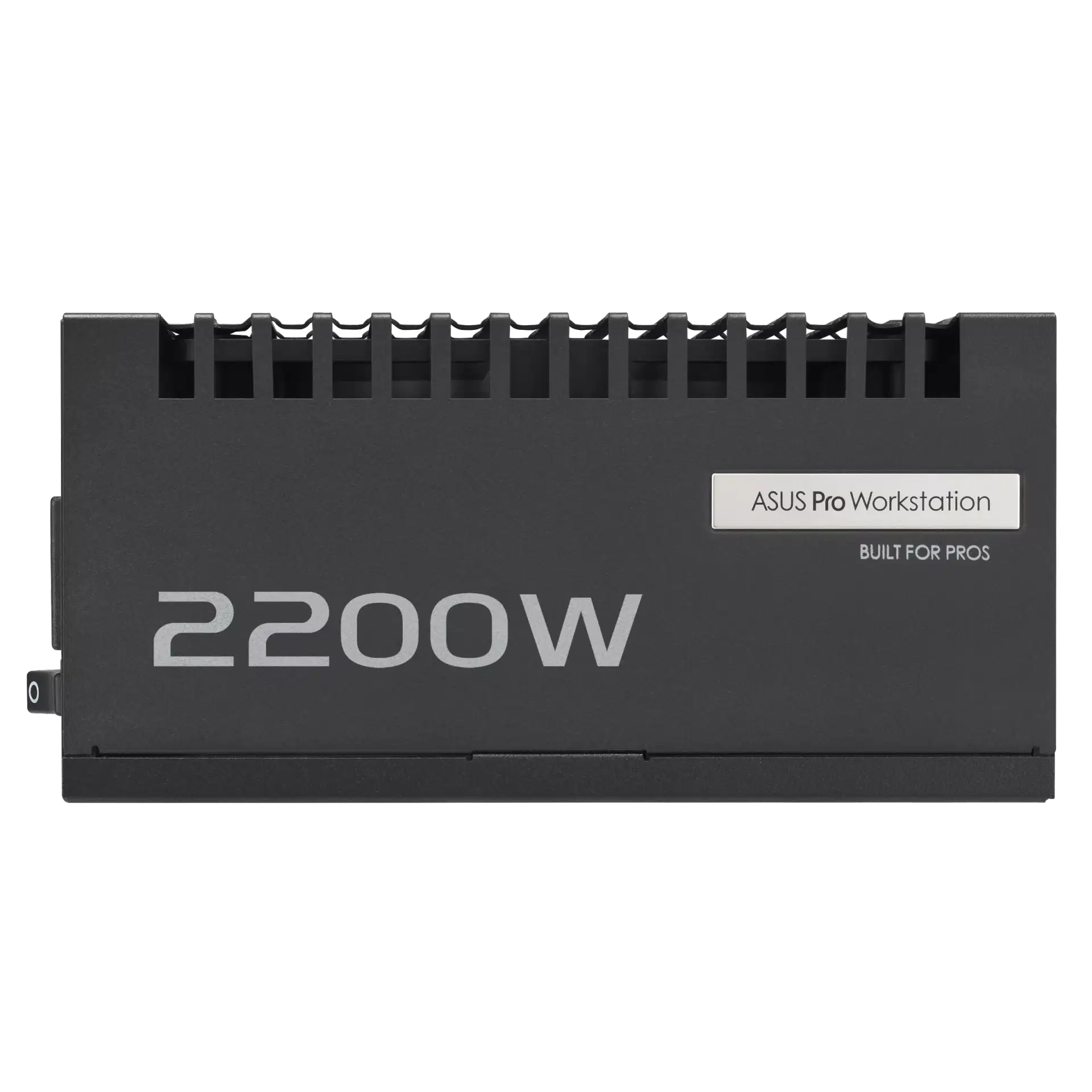

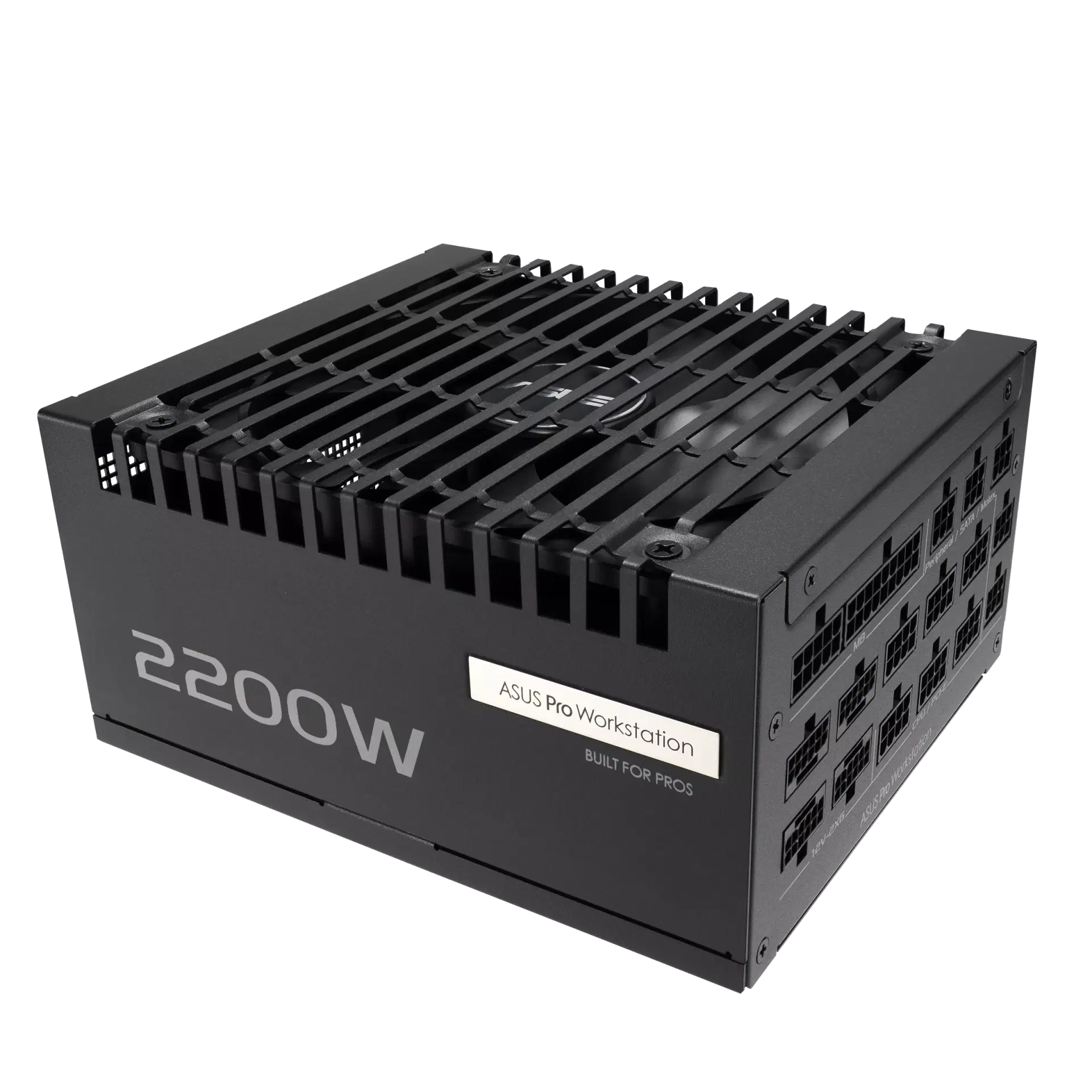

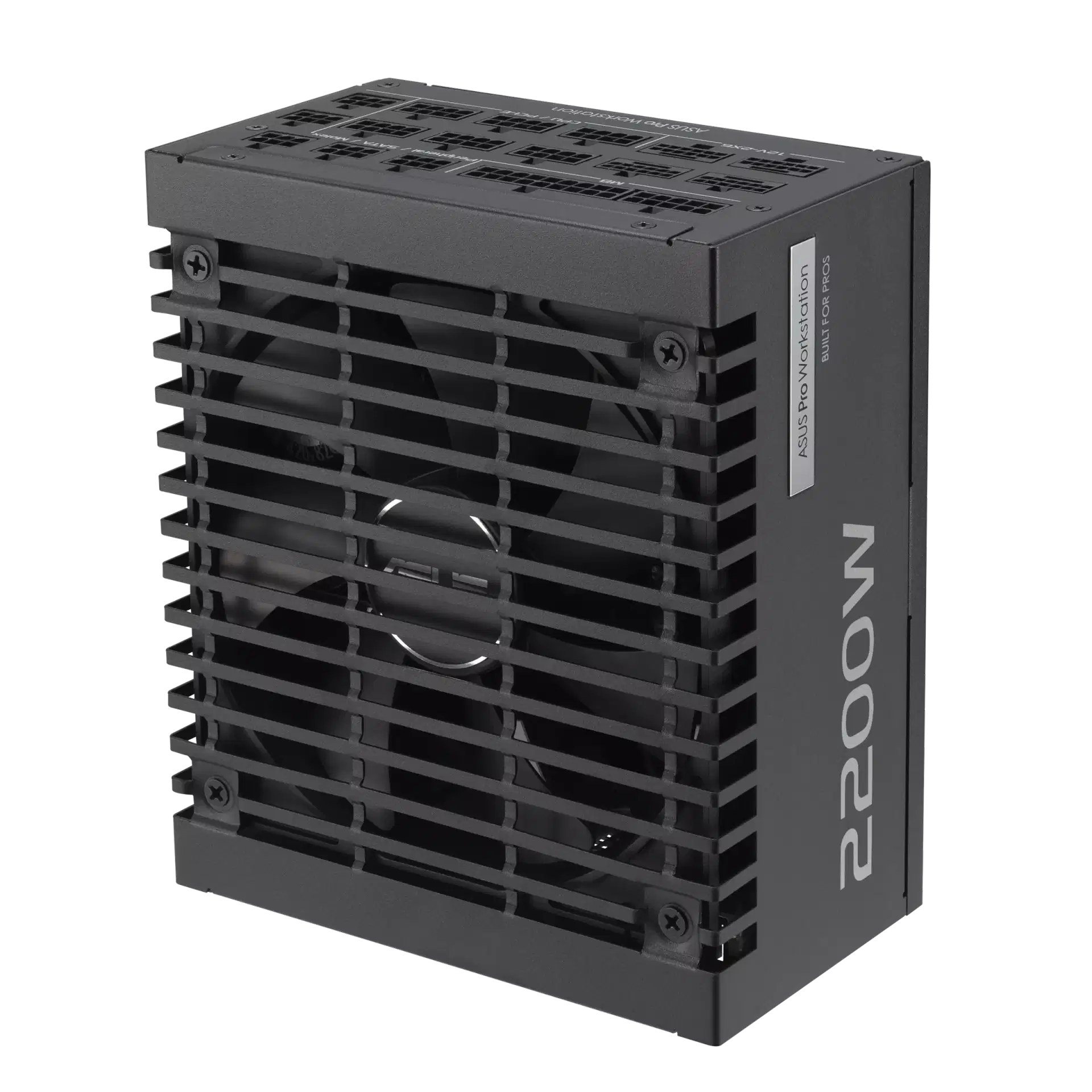

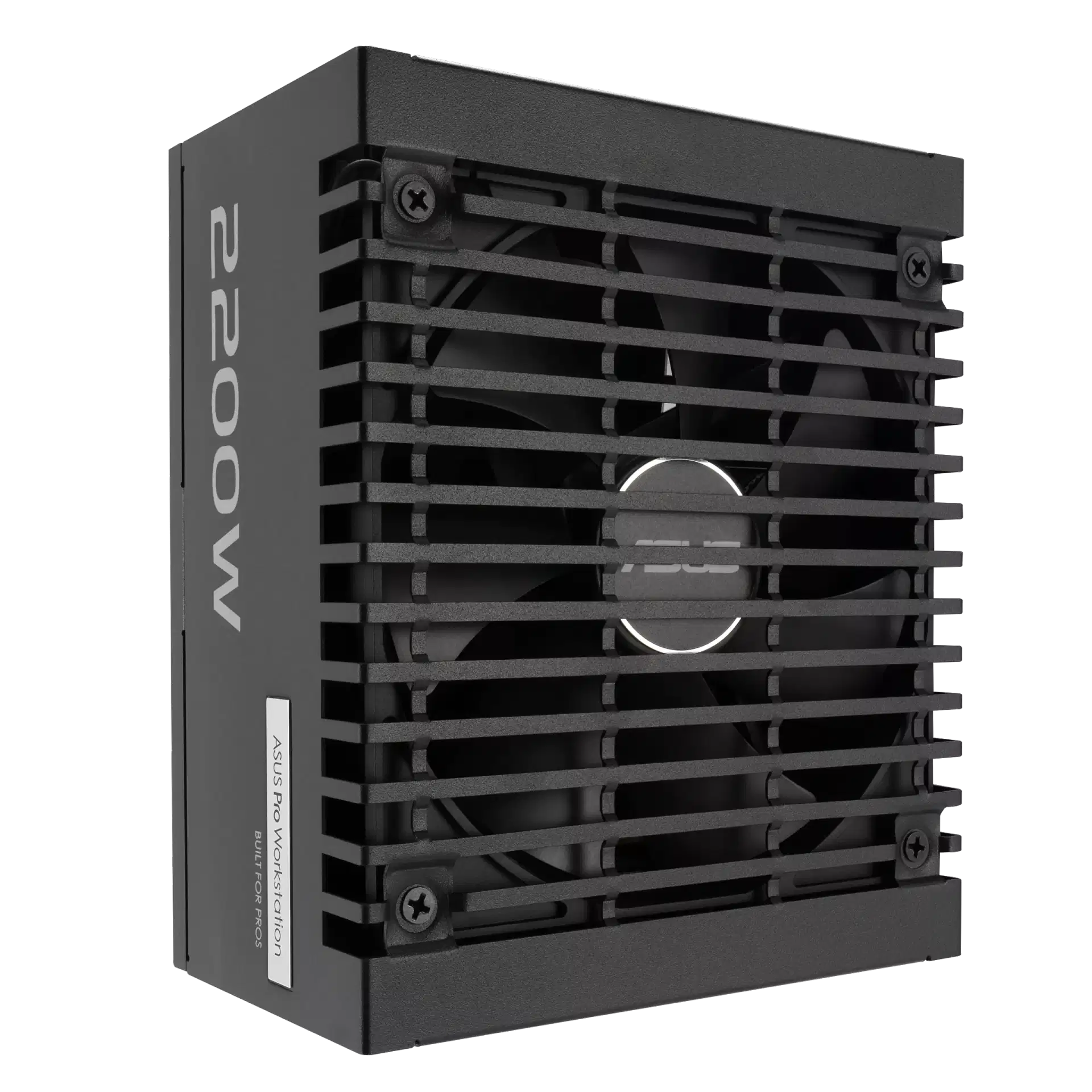

ASUS Pro WS 2200W Platinum Power Supply (PSU), Heavy-duty PSU, ATX 3.1 Compatible, PCIe 5.1 ready, 80 PLUS Platinum, Dual-ball fan bearings, up to 4x NVIDIA GeForce RTX 5080 Graphics Cards | 90YE00Z1-B0NA00

Model : ASUS Pro WS Platinum Power Supply

SKU : PS-ASUS PRO WS 2200W

Power (W) :
2200W

About this item

ASUS Pro WS 2200W Platinum PSU delivers exceptional voltage stability and advanced power delivery for professionals, supporting up to four graphics cards to meet the demanding AI workloads.

  • Heavy-duty PSU: Supports up to four GeForce RTX™ 5080 graphics cards via rock-solid voltage stability and advanced power delivery.

  • Dual-ball fan bearings: Designed to last up to twice as long as sleeve-bearing designs.

  • Extruded aluminum heatsinks: Cover critical components, delivering lower temperatures and noise versus reference designs.

  • ATX 3.1 compatible: Compliant with the ATX 3.1 standard, ensuring enhanced voltage and current regulation.

  • PCIe® 5.1 ready: Features native 12V-2x6 connectors for cutting-edge graphics card power.

  • 80 PLUS Platinum certified: Utilizes low-ESR Japanese server grade capacitors and premium components for industry-leading power efficiency.

  • 10-year warranty: Provides confidence in long-term reliability.

dirham-symbol0

Inclusive of VAT

Delivery to

FREE scheduled delivery as soon as Loading...

Sold and shipped by: Adarc computers

1

AED 0.00

stock : 1

About this item

Description

ASUS Pro WS 2200W Platinum

The ASUS Pro WS 2200W Platinum PSU is engineered to support up to four GeForce RTX™ 5080 graphics cards. It also features 80 PLUS Platinum certification, high-performance copper pins, dual-ball fan bearings, etched cables, rock-solid voltage stability and advanced power delivery, making it an ideal choice for AI solutions, deep learning and IT management.


Heavy-Duty Power

Designed to reliably deliver the thousands of watts necessary to power up to four NVIDIA® GeForce RTX™ 5080 graphics cards, the ASUS Pro WS 2200W Platinum enables breakthrough performance that meets the needs of demanding AI workloads.



Note: Electrical system wattage must meet product specifications to avoid overload or power trips.

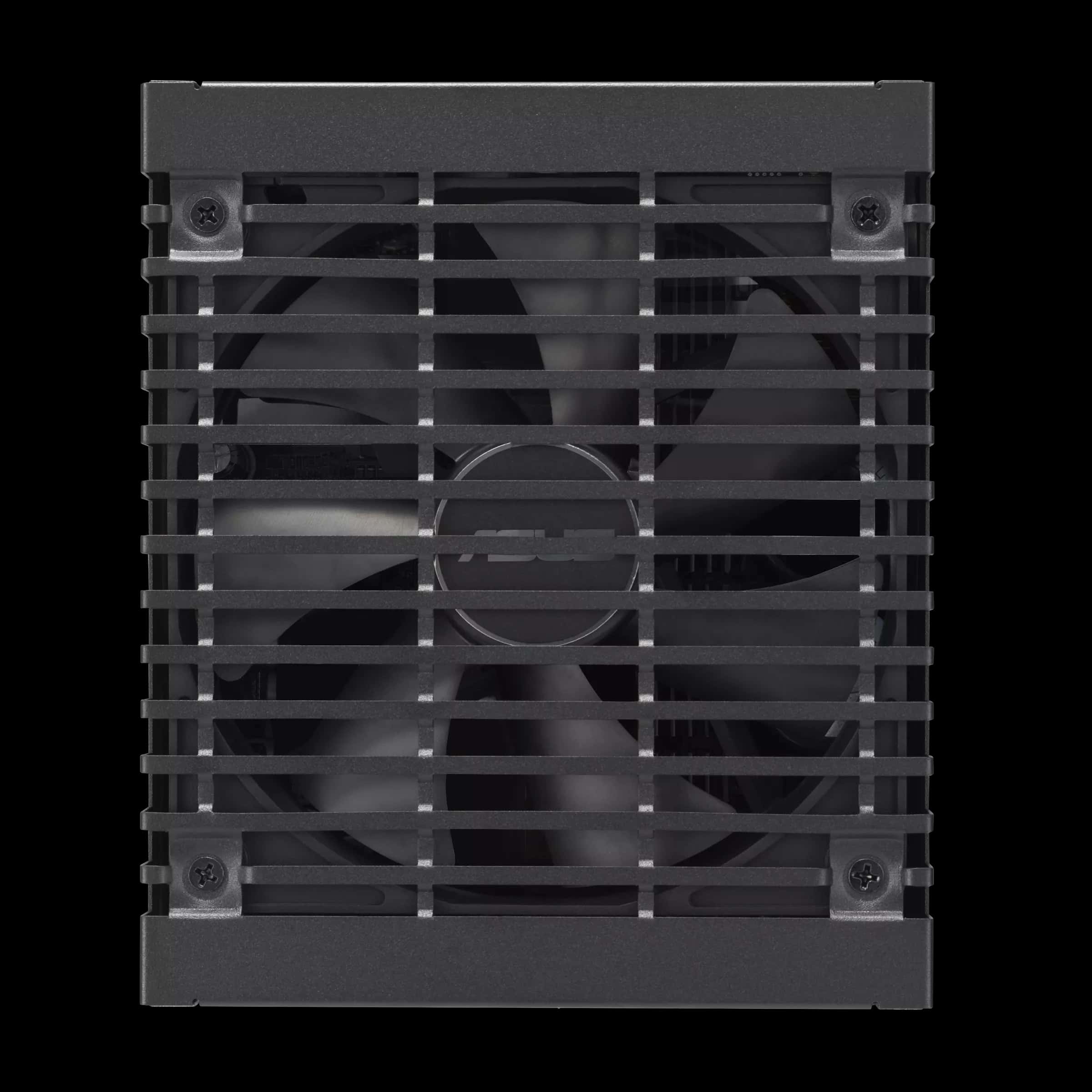

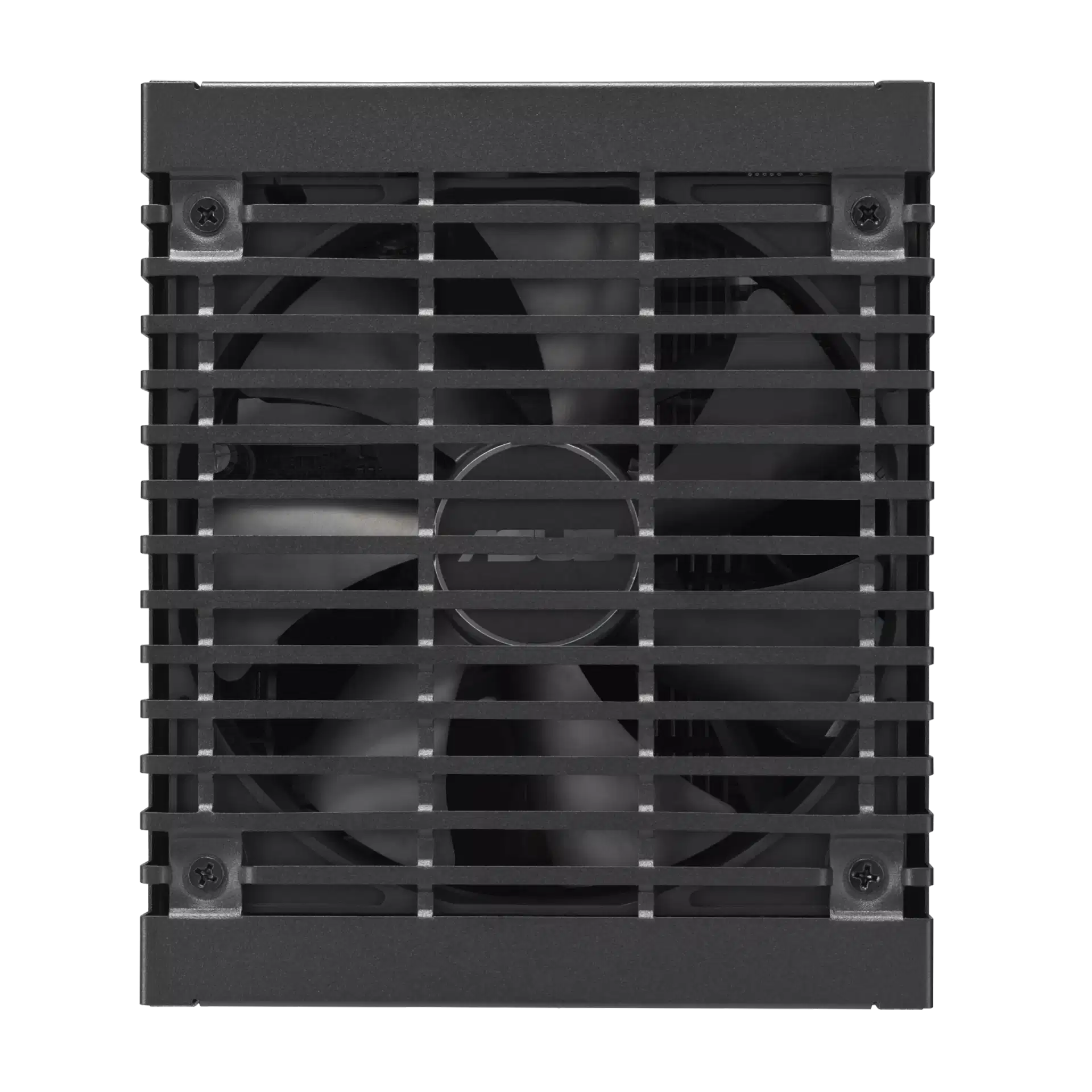

Dual-Ball Fan Bearings

Up to twice the lifespan

Dual-ball bearings boast a remarkable lifespan of up to 80,000 hours, lasting up to twice as long as sleeve bearings and exceeding even fluid dynamic bearings. This helps ensure long-lasting, reliable cooling with minimal noise.

Specification

ModelASUS-PRO-WS-2200P
Intel Form FactorATX12V
PFC TypeActive PFC
ATX StandardATX 3.1
Dimensions175 x 150 x 86 mm
Efficiency80Plus Platinum
Protection FeaturesOPP/OVP/UVP/SCP/OCP/OTP
Hazardous MaterialsROHS

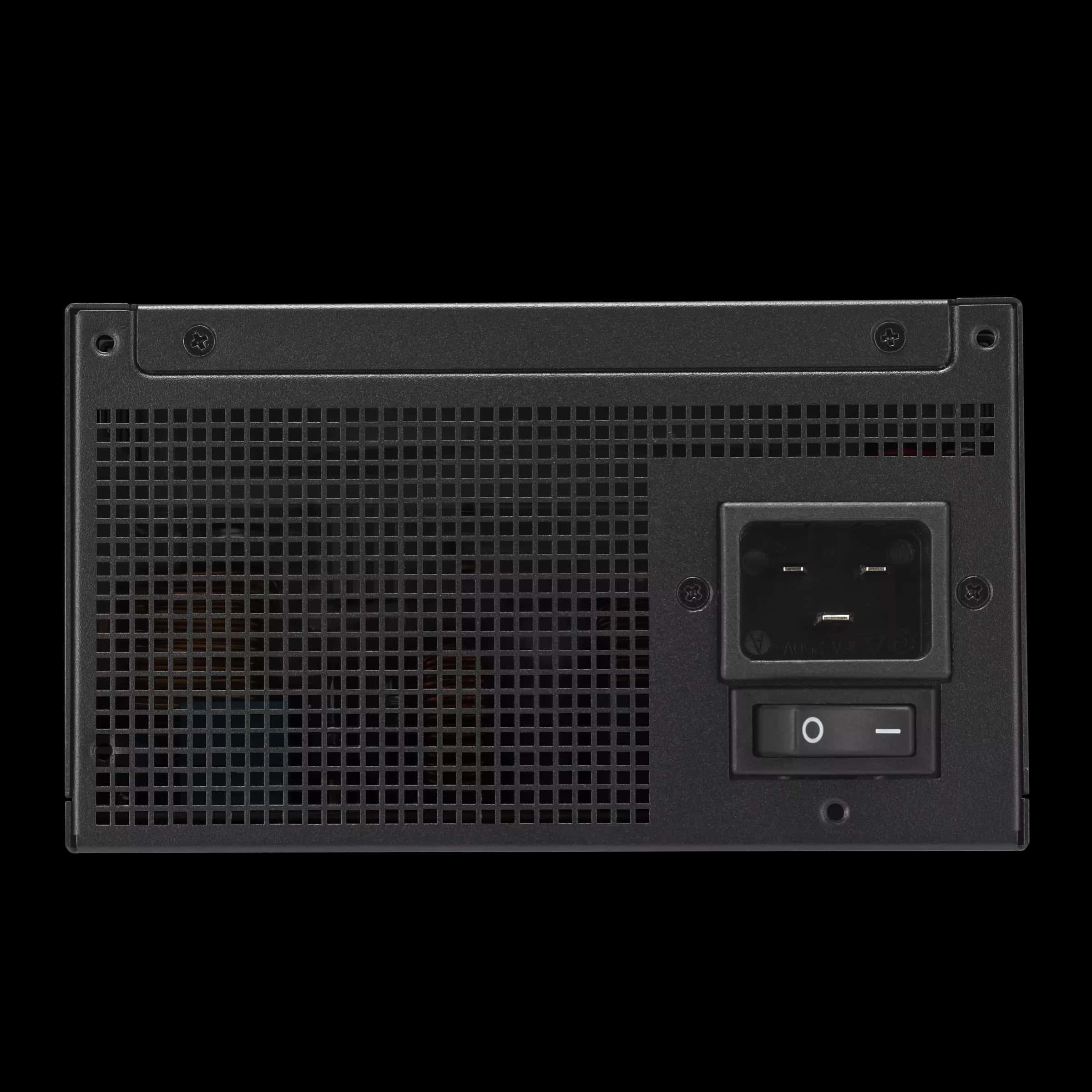

AC Input Range200-240Vac
DC Output Voltage+3.3V +5V +12V -12V +5Vsb
Maximum Load25A 25A 183.3A 0.8A 3A
Combined Load130W 130W 2200W 9.6W 15W
Total Output2200W

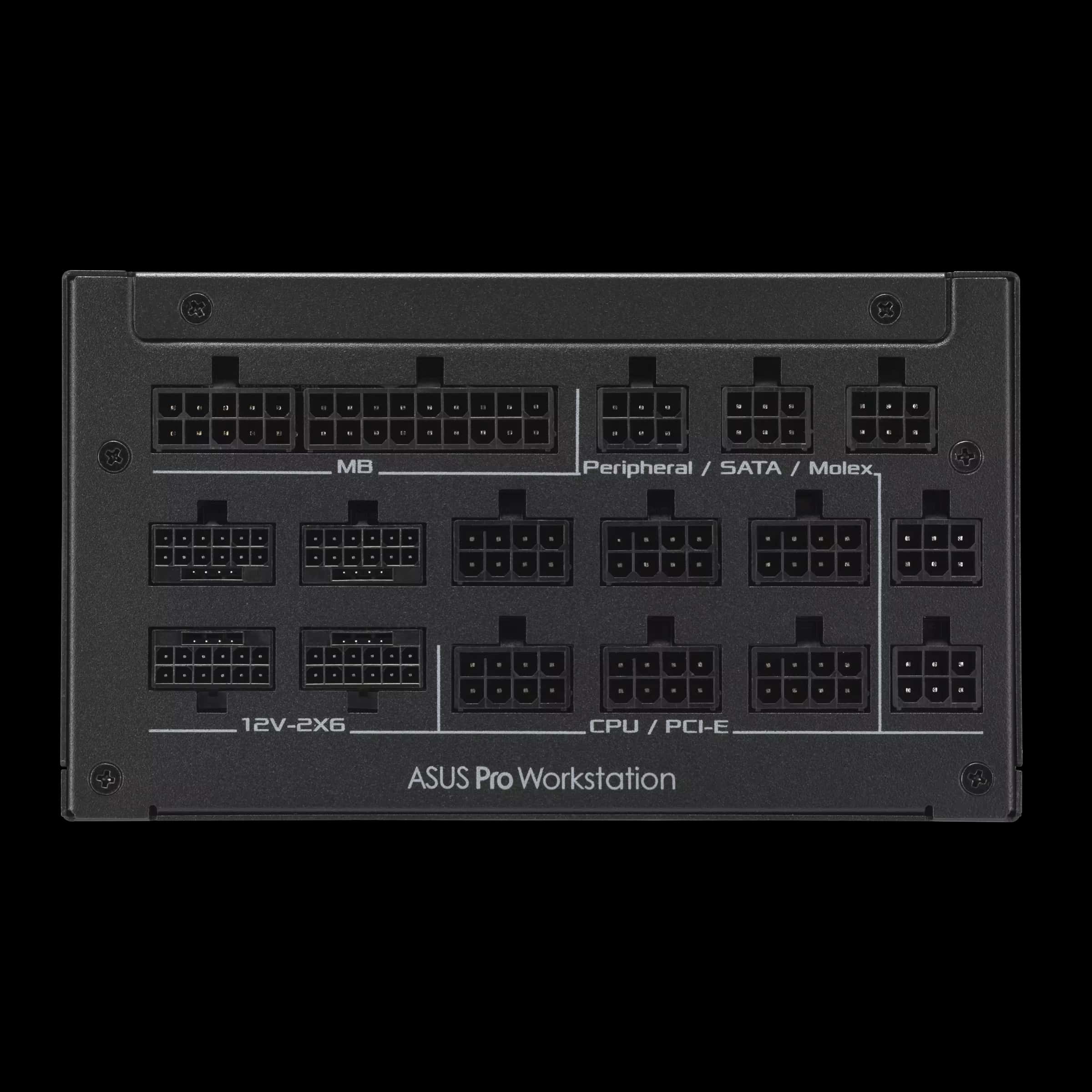

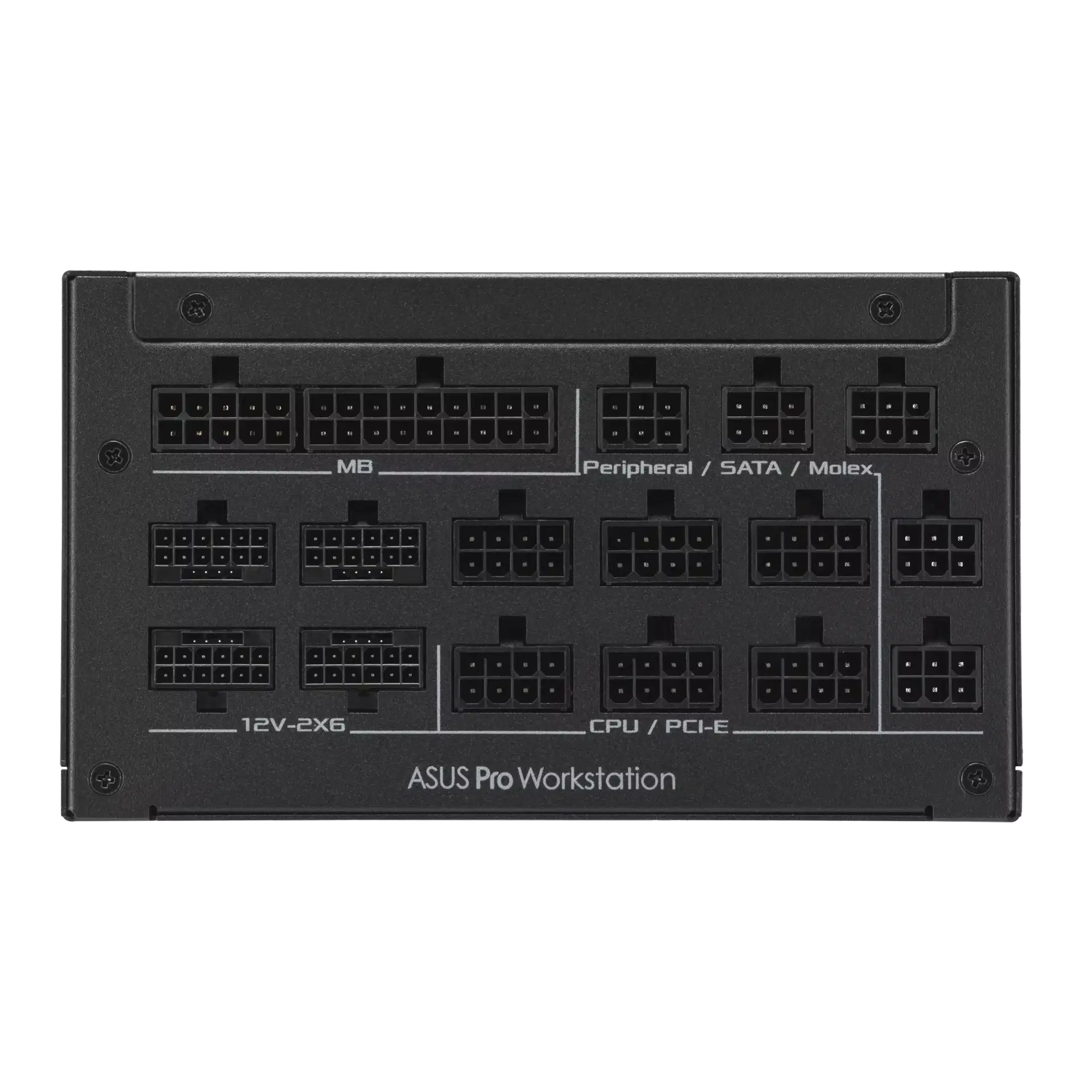

Cable ConnectorsMB 24/20-pin x 1
CPU 4+4-pin x 2
PCIE 5.1 16-pin x 4
PCIE 6+2-pin x 4
SATA x 12
PERIPHERAL x 3
Package ContentsPower Cord x 1
Motherboard Power Cable x 1 (610mm)
CPU Cable x 2 (1000mm)
PCI-E Gen 5.1 16-pin Cable x 4 (750mm)
PCI-E 1-to-1 Cable x 4 (750mm)
SATA 1-to-3 Cable x 4 (400+120+120mm)
Peripheral 1-to-3 Cable x 1 (400+150+150mm)
Chassis Screws Package x 1
Cable Tie x 6
User Manual x 1
Weight2.13 kg (single PSU)
0dB TechnologyNo
