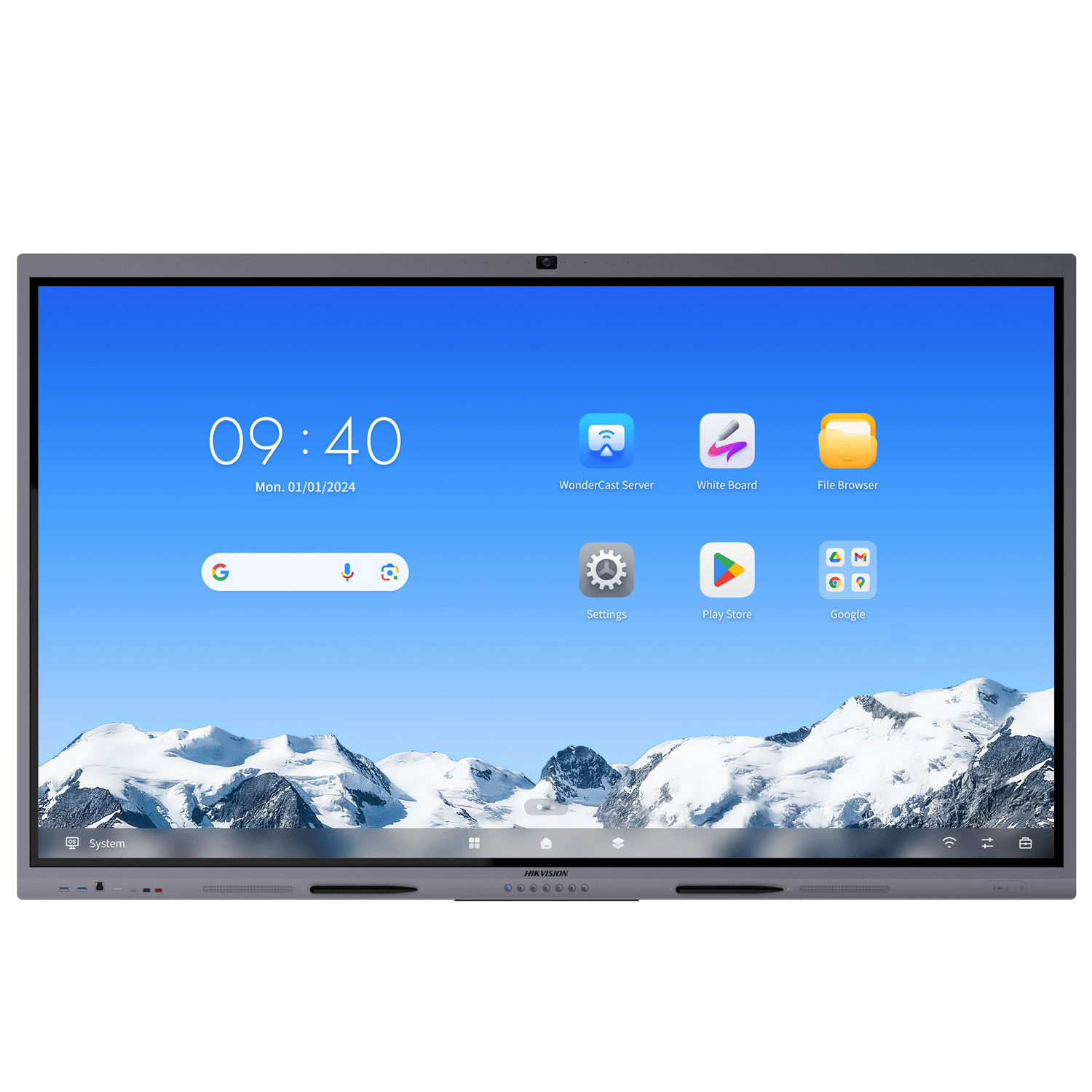

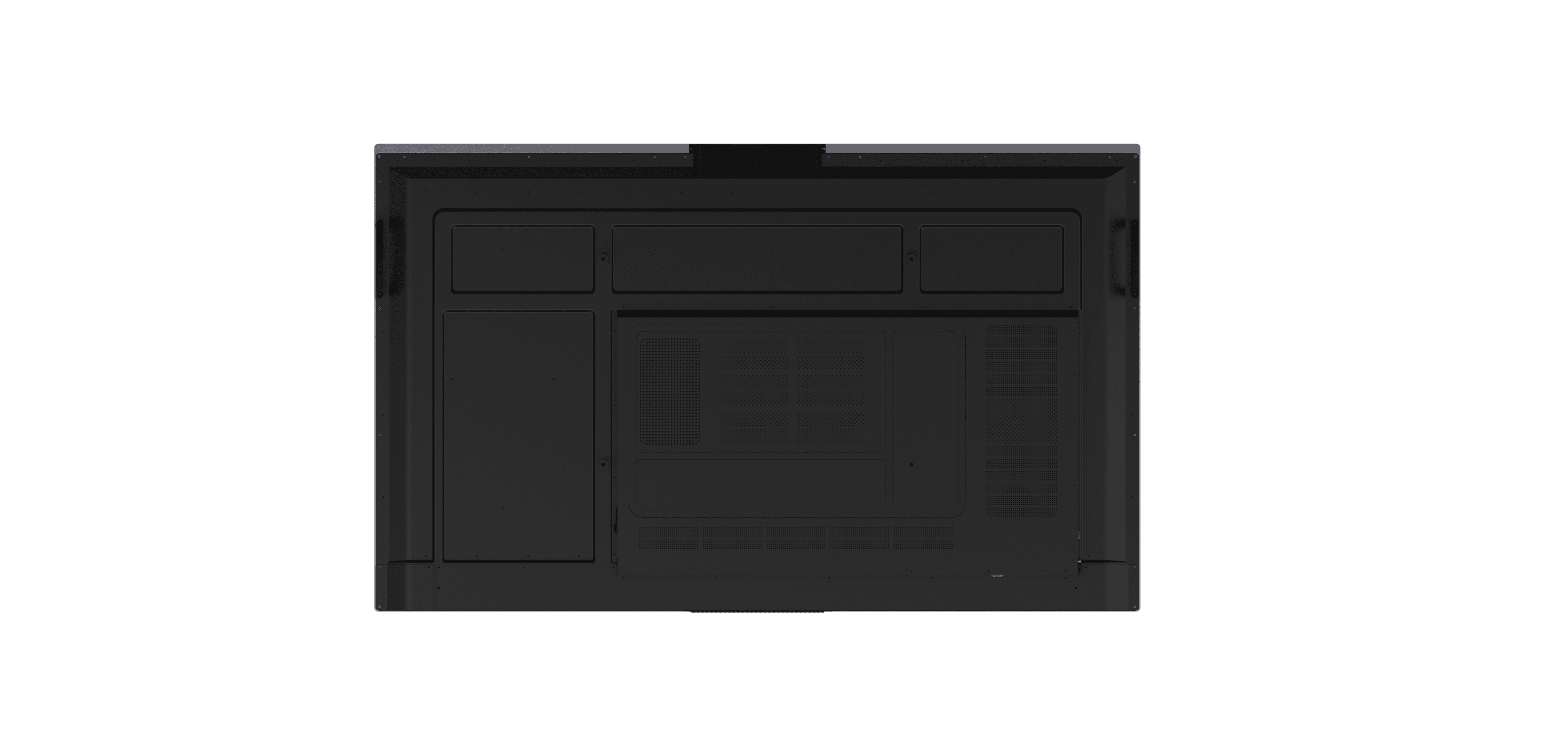

Hikvision DS-D5C75RB/B2L 75" 4K Interactive Display, 5ms, 60Hz, UHD (3840 × 2160), VA Panel, Android 14, EDLA Certified, 50-Point Touch, 48MP Camera, 100W Type-C, Pen Included
Model :
SKU : HIKVISION DS-D5C75RB/B2L
About this item
Description
Step into the future of interactive technology with the Hikvision DS-D5C75RB/B2L. This 75-inch UHD 4K display is much more than a screen; it is a comprehensive communication terminal. Utilizing a high-contrast VA panel and zero-lamination technology, it provides a crisp, paper-like writing experience. Whether it's for 2026 hybrid classrooms or executive boardrooms, the built-in Android 14 system ensures a fast, intuitive, and secure user interface right out of the box.
Key Features
- Native Google EDLA Certification: Experience the power of the Google ecosystem. With EDLA certification, you can download apps like Google Meet, Classroom, and Drive directly to the display, ensuring a familiar and efficient workflow without the need for an external laptop.
- Pro-Grade Visuals & Touch: The display features 480 nits of brightness and a 5000:1 static contrast ratio, protected by 7-Mohs hardened anti-glare glass. The infrared touch system supports up to 50 simultaneous touch points, making it perfect for group brainstorming and interactive lessons.
- Advanced 48MP AI Camera: Conduct high-definition video conferences with the integrated camera capable of 48MP photo capture and 4K video. Smart AI features include face detection and automatic defogging, ensuring clear visuals regardless of the room's conditions.
- Professional Audio Suite: An 8-array microphone layout with a 12-meter pickup range uses acoustic beamforming and echo cancellation to capture voices clearly. Audio is delivered through a powerful 2.1 channel speaker system (2x 20W + 25W), providing deep, room-filling sound.
- Ultra-Fast 100W Type-C Connectivity: Simplify your setup with dual full-function Type-C ports. A single cable can provide 100W of power delivery to charge your laptop while simultaneously transmitting 4K video (DP 1.2) and touch data.
Intelligent Environment Monitoring: This is a "Smart" display in every sense, featuring built-in sensors for light, humidity, and temperature. It monitors classroom conditions in real-time, allowing for a more comfortable and optimized learning environment.
Why This Product Stands Out The Hikvision DS-D5C75RB/B2L eliminates the need for extra hardware. With a built-in network switch chip, you can daisy-chain network connections without an external switch. Its dual-system support (Android and optional Windows OPS) and zero-lamination display bonding mean that writing feels natural, with no gap between the pen tip and the digital ink.
Specification
Hikvision DS-D5C75RB/B2L – 75" 4K Interactive Display Specifications
| Screen Size | 75 inch |
| Backlight | DLED |
| Resolution | 3840 × 2160 @ 60 Hz |
| Brightness | 480 cd/m² (Typical) |
| Panel Type | VA |
| Color Depth | 10-bit (8-bit + FRC) |
| Display Colors | 1.07 Billion |
| Contrast Ratio | 5000:1 (Static) / 30,000:1 (Dynamic) |
| Response Time | 5 ms |
| Refresh Rate | 60 Hz |
| Viewing Angle | 178° (H) / 178° (V) |
| Aspect Ratio | 16:9 |
| Color Gamut | 72% NTSC (CIE1931) |
| Surface Glass | Anti-Glare & Anti-Fingerprint |
| Surface Hardness | 9H (Pencil) / 7 (Mohs) |
| Surface Haze | 25% |
| Glass Bonding | Zero Lamination |
| Display Area | 1650.24 × 928.26 mm |
| Transmittance | 88% ± 3 |
| Lifespan | 50,000 Hours |
| Working Duration | 7 × 16 Hours |
| Touch Type | Infrared (IR) |
| Touch Points | Up to 50-Point Multi-Touch |
| Touch Response Time | ≤ 2 ms |
| Touch Precision | ± 0.5 mm |
| Touch Resolution | 32768 × 32768 |
| Operating System | Android 14.0 |
| Processor | Quad-core Cortex-A76 (2.4 GHz) + Quad-core Cortex-A55 (1.8 GHz) |
| GPU | Mali-G610 MC4 |
| Memory | 8 GB RAM |
| Storage | 128 GB |
| HDCP Support | 2.3 / 2.0 / 1.4 |
| Camera | 48 MP (Photo) / 8 MP (Video), Up to 4K |
| Field of View | 93.4° (D) / 84.5° (H) / 54.1° (V) |
| Microphone | 8-Array Omni-Directional |
| Voice Pickup Distance | Up to 12 m |
| Audio Processing | Echo Cancellation, Noise Reduction, Beamforming |
| Speakers | 2 × 20 W + 25 W Built-in Speakers |
| HDMI Input | 3 × HDMI 2.1 (1 Front, 2 Rear) |
| HDMI Output | 1 × HDMI 2.1 (Rear) |
| USB Ports | 4 × USB 3.0, 1 × USB 2.0 |
| Type-C | 2 × (100W Charging + DP 1.2) |
| LAN | 2 × 1000 Mbps |
| Wi-Fi | Wi-Fi 6 (802.11 a/b/g/n/ac/ax, 2×2 MIMO) |
| Bluetooth | Bluetooth 5.4 (BLE) |
| RS232 | 1 × Rear |
| SPDIF | 1 × Rear |
| Power Supply | 100–240V AC, 50/60 Hz |
| Average Consumption | < 237 W |
| Standby Consumption | ≤ 0.5 W |
| Operating Temperature | 0°C to 40°C |
| Operating Humidity | 10% – 90% RH |
| Product Dimensions (Without Wall Mount) | 1713.2 × 1034.5 × 82.5 mm |
| Product Dimensions (With Wall Mount) | 1713.2 × 1034.5 × 114.5 mm |
| Package Dimensions | 1907 × 1160 × 223 mm |
| Net Weight | 45.9 kg |
| Gross Weight | 63.5 kg |
| VESA Mount | 800 × 400 mm (4 × M8) |
