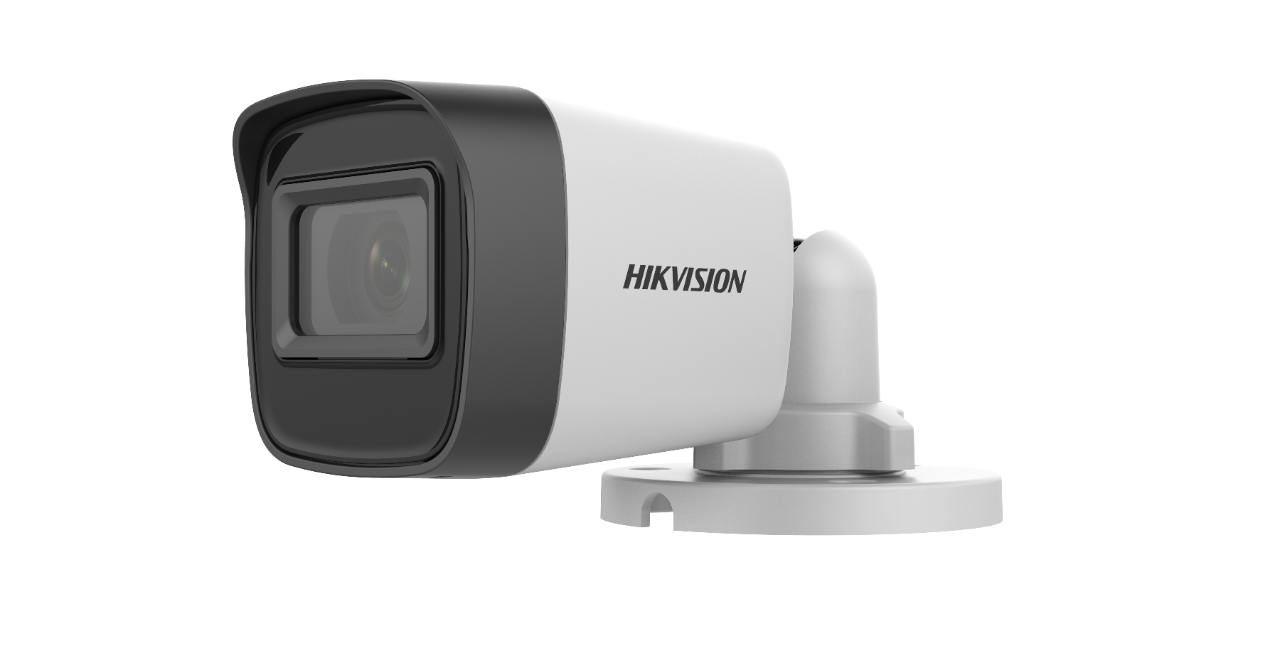

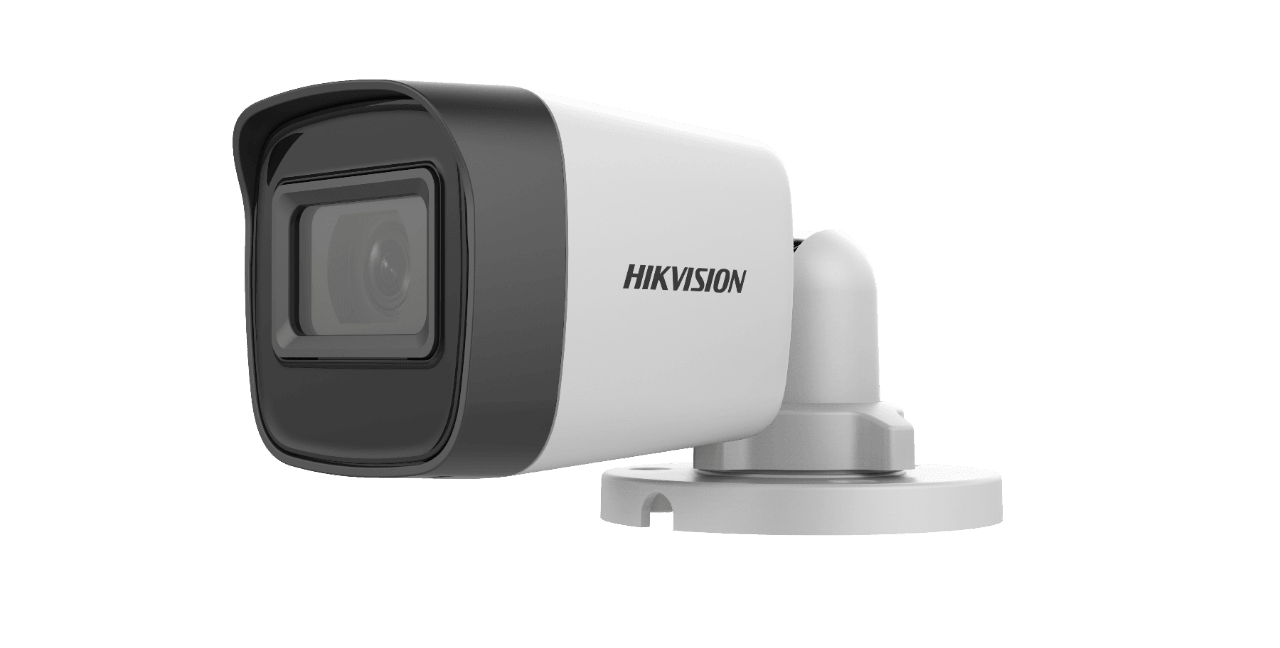

HIKVISION INDOOR/OUTDOOR EXIR BULLET CAMERA DS-2CE16HOT-ITPF

Camera
Image Sensor5 MP CMOS image sensor
Max. Resolution2560 (H) ?? 1944 (V)
Min. IlluminationColor: 0.01 Lux @ (F1.2, AGC ON), 0 Lux with IR
Shutter TimePAL: 1/25 s to 1/50, 000 s

NTSC: 1/30 s to 1/50, 000 s
Day & NightICR
Angle AdjustmentPan: 0 to 360??, Tilt: 0 to 90??, Rotation 0 to 360??
Signal SystemPAL/NTSC
Lens
Lens Type2.4 mm, 2.8 mm, 3.6 mm, 6 mm fixed lens
Focal Length & FOV2.4 mm, horizontal FOV: 110??, vertical FOV: 81??, diagonal FOV:137??

2.8 mm, horizontal FOV: 85??, vertical FOV: 63??, diagonal FOV:110??

3.6 mm, horizontal FOV: 80??, vertical FOV: 63??, diagonal FOV:105??

6 mm, horizontal FOV: 57??, vertical FOV: 43??, diagonal FOV:72??
Lens MountM12

Image Parameters SwitchSTD/HIGH-SAT
Image SettingsBrightness, Sharpness, Mirror, Smart IR
Frame RateTVI: 5M@20fps, 4M@30fps, 4M@25fps, 1080p@30fps, 1080p@25fps

AHD: 5M@20fps, 4M@30fps, 4M@25fps

CVI: 4M@30fps, 4M@25fps

CVBS: PAL/NTSC
Day/Night ModeAuto/Color/BW (Black and White)
Wide Dynamic Range (WDR)Digital WDR
Image EnhancementBLC, HLC
White BalanceATW/MANUAL
AGCSupport

Interface
Video OutputSwitchable TVI/AHD/CVI/CVBS

General
MaterialPlastic
Dimension60.9 mm ?? 57.9 mm ?? 138.8 mm (2.39" ?? 2.28" ?? 5.47")
WeightApprox. 147 g (0.32 lb.)
Operating Condition-40 ??C to 60 ??C (-40 ??F to 140 ??F), humidity: 90% or less (non-condensation)
CommunicationHIKVISION-C
LanguageEnglish
Power Supply12 VDC ??25%
ConsumptionMax. 4.3 W


IR RangeUp to 25 m

Approval
ProtectionIP67
