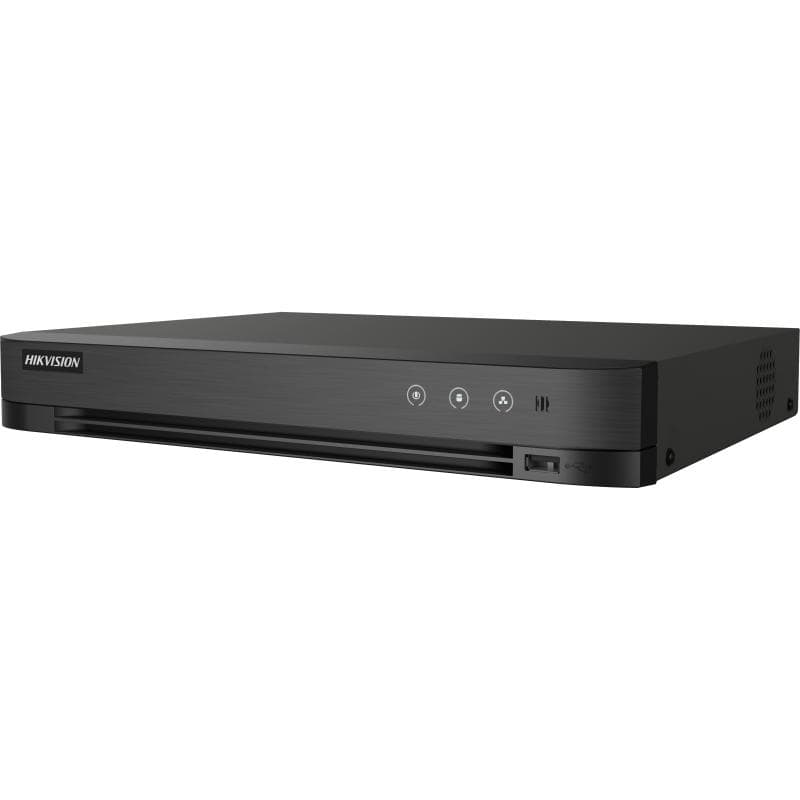

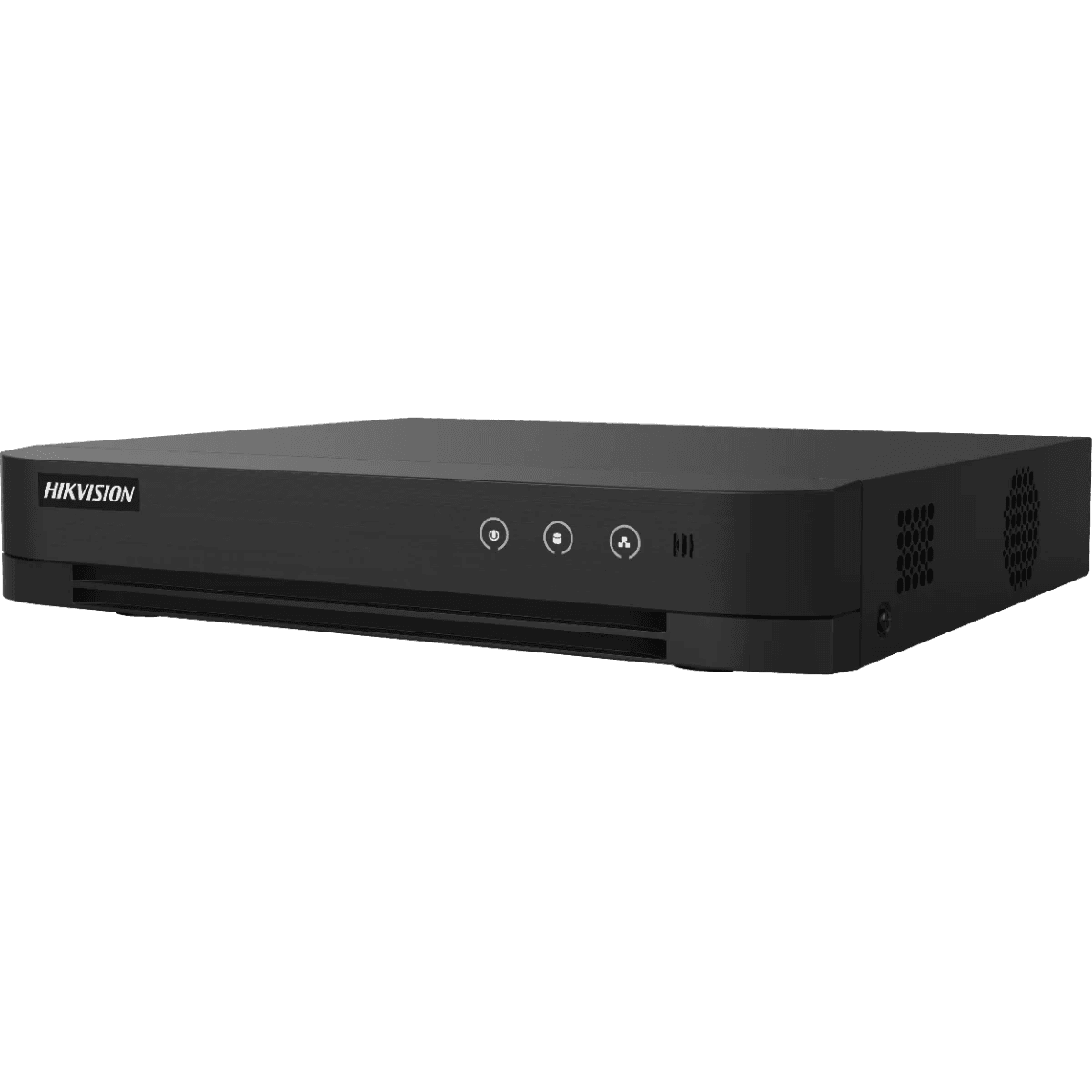

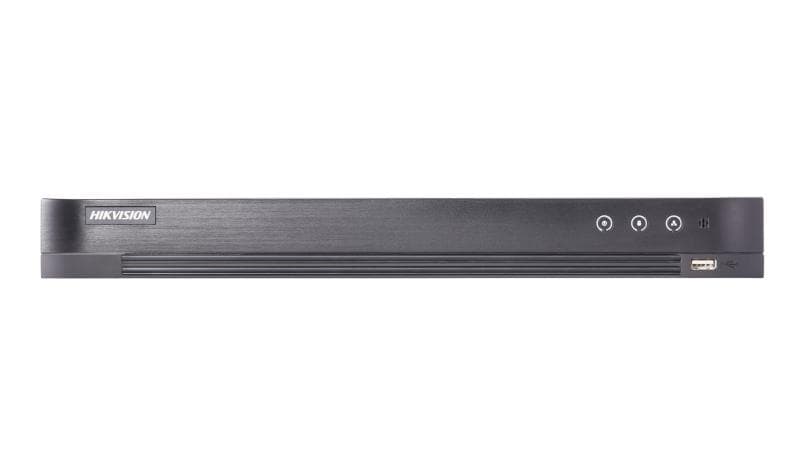

HikvisionIDS-7232HQHI-M2/S 32-ch 1080p 1U H.265 AcuSense DVR, Up to 40 network cameras, 2x SATA up to 10 TB Capacity, Deep learning-based Perimeter protection & Motion detection, Audio via coaxial cable

Model :

SKU : IDS-7232HQHI-M2/S

dirham-symbol0

Inclusive of VAT

Delivery to

FREE scheduled delivery as soon as Loading...

Sold and shipped by: Adarc computers

1

AED 0.00

stock : 1

About this item

Description

HikvisionIDS-7232HQHI-M2/S 32-ch 1080p 1U H.265 AcuSense DVR Specifications

Motion Detection 2.0 Human/Vehicle Analysis, Deep learning-based motion detection 2.0 is enabled by default for all analog channels, it can classify human and vehicle, and extremely reduce false alarms caused by objects like leaves and lights; Quick search by object or event type is supported;
Perimeter Protection Human/Vehicle Analysis, Up to 4-ch
Facial Detection Facial Detection and Capture, Face picture detection, face picture search
IP Video Input 2-ch (up to 34-ch), Enhanced IP mode on: 8-ch (up to 40-ch), each up to 4 Mbps, Up to 6 MP resolution, Support H.265+/H.265/H.264+/H.264 IP cameras
Analog Video Input 32-ch, BNC interface (1.0 Vp-p, 75 ??), supporting coaxitron connection
HDTVI Input 4 MP@30 fps, 4 MP@25 fps, 3 MP@18 fps, 1080p@30 fps, 1080p@25 fps, 720p@60 fps, 720p@50 fps, 720p@30 fps, 720p@25 fps *: The 3 MP signal input is only available for channel 1/2/3/4.
AHD Input 4 MP, 1080p@25 fps, 1080p@30 fps, 720p@25 fps, 720p@30 fps
HDCVI Input 4 MP, 1080p@25 fps, 1080p@30 fps, 720p@25 fps, 720p@30 fps
CVBS Input PAL/NTSC
CVBS Output 1-ch, BNC (1.0 Vp-p, 75 ??), resolution: PAL: 704 ?? 576, NTSC: 704 ?? 480
HDMI Output 1-ch, 4K (3840 ?? 2160)/30Hz, 2K (2560 ?? 1440)/60Hz, 1920 ?? 1080/60Hz, 1280 ?? 1024/60Hz, 1280 ?? 720/60Hz
VGA Output 1-ch, 1920 ?? 1080/60 Hz, 1280 ?? 1024/60 Hz, 1280 ?? 720/60 Hz, HDMI/VGA simultaneous output
Audio Input 1-ch, RCA (2.0 Vp-p, 1 K??)???32-ch via coaxial cable
Audio Output 1-ch, RCA (Linear, 1 K??)
Two-Way Audio 1-ch, RCA (2.0 Vp-p, 1 K??) (using the first audio input)
Synchronous playback 16-ch
Recording Video Compression: H.265 Pro+/H.265 Pro/H.265/H.264+/H.264
Encoding Resolution:
- When 1080p Lite mode is not enabled: 4 MP lite/3 MP/1080p/720p/VGA/WD1/4CIF/CIF;
- When 1080p Lite mode is enabled: 4 MP lite/3 MP/1080p lite/720p lite/VGA/WD1/4CIF/CIF
Frame Rate:
- Main stream: When 1080p Lite mode not enabled:
  For 4 MP stream access: 4 MP lite@15 fps; 1080p lite/720p/WD1/4CIF/VGA/CIF@25 fps (P)/30 fps (N)
  For 3 MP stream access: 3 MP/1080p/720p/VGA/WD1/4CIF/CIF@15 fps
  For 1080p stream access: 1080p/720p@15 fps; VGA/WD1/4CIF/CIF@25 fps (P)/30 fps (N)
  For 720p stream access: 720p/VGA/WD1/4CIF/CIF@25 fps (P)/30 fps (N)
  When 1080p Lite mode enabled:
  4 MP lite/3 MP@15 fps; 1080p lite/720p lite/VGA/WD1/4CIF/CIF@25 fps (P)/30 fps (N)
- Sub-stream: WD1/4CIF@12 fps; CIF@25 fps (P)/30 fps (N)
Video Bitrate 32 Kbps to 10 Mbps
Dual-stream Support
Stream Type Video, Video & Audio
Audio Compression G.711u
Audio Bitrate 64 Kbps
Network Remote Connection: 128
Network Protocol: TCP/IP, PPPoE, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, NFS, iSCSI, UPnP???, HTTPS, ONVIF
Total Bandwidth: 128 Mbps
Network Interface: 1, RJ45 10/100/1000 Mbps self-adaptive Ethernet interface
Wi-Fi: Connectable to Wi-Fi network by Wi-Fi dongle through USB interface
Auxiliary Interface SATA: 2 SATA interfaces
Capacity: Up to 10 TB capacity for each disk
Serial Interface: RS-485 (half-duplex)
USB Interface: Front panel: 1 ?? USB 2.0, Rear panel: 1 ?? USB 3.0
Alarm In/Out: N/A (optional to support)
General Power Supply: 12 VDC, 5 A
Consumption: ??? 40 W
Working Temperature: -10 ??C to +55 ??C (+14 ??F to +131 ??F)
Working Humidity: 10% to 90%
Dimension (W ?? D ?? H): 380 ?? 320 ?? 48 mm (15.0??? ?? 12.6??? ?? 1.9???)
Weight: ??? 2.1 kg (4.6 lb)

Introducing Hikvision IDS-7232HQHI-M2/S: The Ultimate 32-channel 1080p AcuSense DVR with Deep Learning-Based Perimeter Protection

Introducing the Hikvision IDS-7232HQHI-M2/S, the ultimate 32-channel 1080p AcuSense DVR with deep learning-based perimeter protection. This cutting-edge security system combines advanced surveillance technology with intelligent analytics to deliver maximum protection for your property. With its high-definition resolution and 32-channel capacity, the Hikvision IDS-7232HQHI-M2/S provides crystal-clear video footage across a wide range of locations. Whether you're monitoring a large office building, retail store, or residential property, this DVR system ensures that every detail is captured with exceptional clarity. What sets the Hikvision IDS-7232HQHI-M2/S apart is its deep learning-based perimeter protection feature. Leveraging the power of deep learning algorithms, this system can accurately detect human and vehicle targets, filtering out false alarms triggered by animals or other objects. Its intelligent analytics allow for real-time alerts and proactive threat prevention, ensuring that you're always one step ahead. When it comes to securing your property, trust the Hikvision IDS-7232HQHI-M2/S to deliver unparalleled performance and peace of mind. Upgrade your surveillance system today and experience the ultimate in security technology.
