| Installation Type | Wall, Ceiling, T-Rail |
| Dimensions without packaging (H x W x D) [mm(in.)] | 220 mm x 50 mm |
| Weight without packaging [kg(lb)] | 1.08 kg |
| Power supply mode | DC/ PoE |
| Input voltage range [V] | DC: 12 V ?? 10% PoE: 802.3at/af |
| Service port surge protection | PoE port: Common mode (8 wires to ground): 4 kV (1.2/50 ??s, 42 ohms), criterion B Differential mode (48 V-RTN): 0.5 kV (1.2/50 ??s, 42 ohms), criterion B |

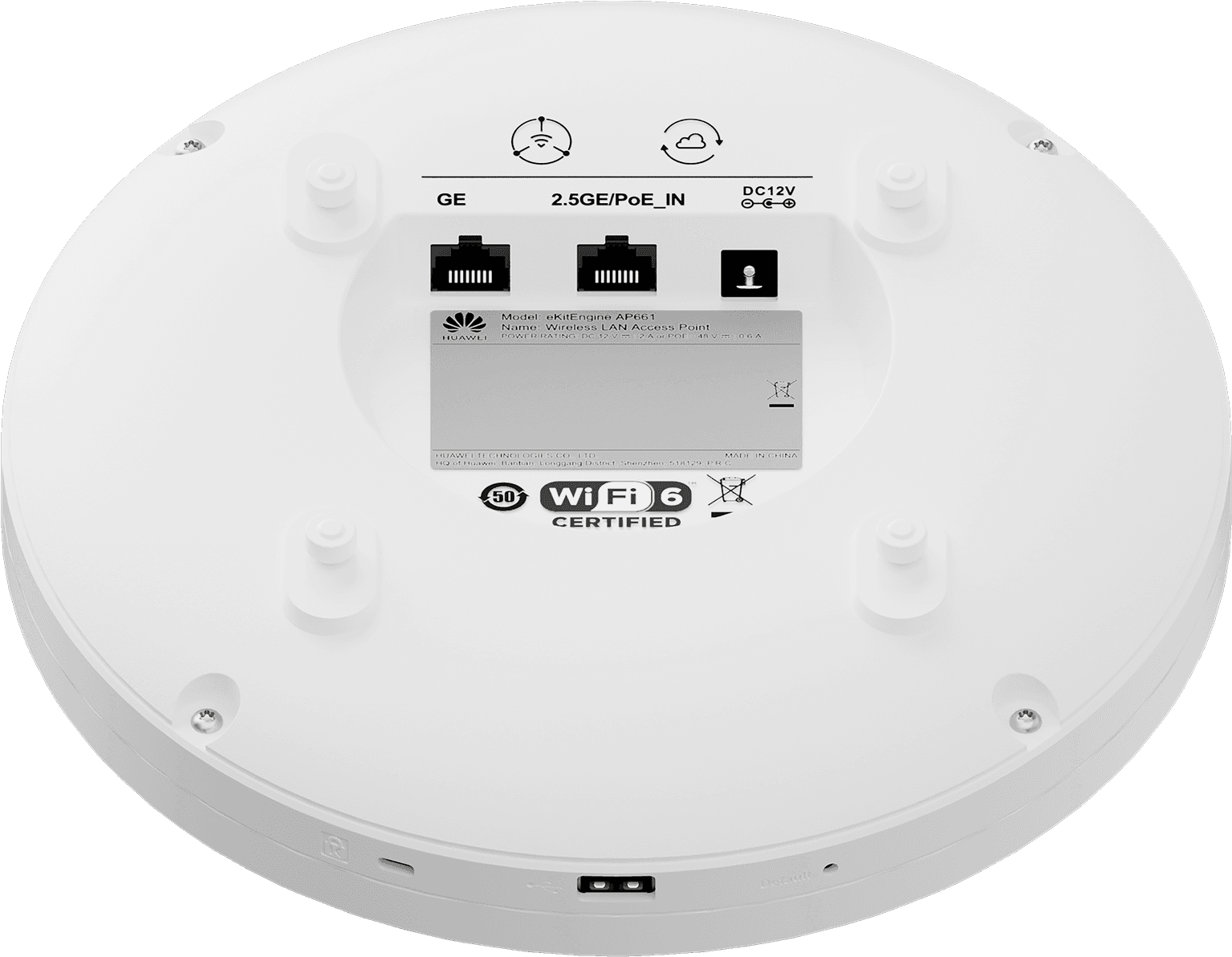

| Maximum number of physical ports on the entire device | GE (RJ45) x 1, 10M/100M/1000M auto-sensing GE (RJ45) x 1, 10M/100M/1000M auto-sensing |
| Long-term operating temperature [??C(??F)] | -10??C to 50??C (From 1800 m to 5000 m [5905.51 ft. to 16404.20 ft.], the maximum temperature of the device decreases by 1??C [1.8??F] for every 300 m [984.25 ft.] increase in altitude.) |
| Storage temperature [??C(??F)] | ???40??C to +70??C |
| Long-term operating relative humidity [RH] | 5% RH to 95% RH |
| Long-term operating altitude [m(ft.)] | ???60 m to +5000 m (???196.85 ft to +16404.20 ft) |
| Atmospheric pressure [kPa] | 53kPa - 106kPa ETSI 300 019-2-3 |
| Ground | Floating ground |
| Radio number | 3 |
| MIMO spatial streams | Radio 0 (2.4 GHz): 2x2 Radio 1 (5 GHz): 2x2 Radio 2 (5 GHz): 4x4 |
| Wi-Fi standard | 2.4G: 802.11b/g/n/ax 5G: 802.11a/n/ac/ac Wave 2/ax |
| Radio interface | Built-in smart antennas |
| Antenna gain | 2.4G: 4 dBi/chain (peak), 2 dBi (combined gain) 5G: 5 dBi/chain (peak value), 3 dBi (combined gain) BLE: 4 dBi |
| Maximum transmit power | 2.4G: 22 dBm/chain, 25 dBm (combined power) 5G: 20 dBm/chain, 23 dBm (combined power) 5G: 20 dBm/chain, 26 dBm (combined power) BLE: <10 dBm |
| Installation Type | Wall, Ceiling, T-Rail |
| Dimensions without packaging (H x W x D) [mm(in.)] | 220 mm x 50 mm |
| Weight without packaging [kg(lb)] | 1.08 kg |
| Power supply mode | DC/ PoE |
| Input voltage range [V] | DC: 12 V ?? 10% PoE: 802.3at/af |
| Service port surge protection | PoE port: Common mode (8 wires to ground): 4 kV (1.2/50 ??s, 42 ohms), criterion B Differential mode (48 V-RTN): 0.5 kV (1.2/50 ??s, 42 ohms), criterion B |
| Maximum number of physical ports on the entire device | GE (RJ45) x 1, 10M/100M/1000M auto-sensing GE (RJ45) x 1, 10M/100M/1000M auto-sensing |
| Long-term operating temperature [??C(??F)] | -10??C to 50??C (From 1800 m to 5000 m [5905.51 ft. to 16404.20 ft.], the maximum temperature of the device decreases by 1??C [1.8??F] for every 300 m [984.25 ft.] increase in altitude.) |
| Storage temperature [??C(??F)] | ???40??C to +70??C |
| Long-term operating relative humidity [RH] | 5% RH to 95% RH |
| Long-term operating altitude [m(ft.)] | ???60 m to +5000 m (???196.85 ft to +16404.20 ft) |
| Atmospheric pressure [kPa] | 53kPa - 106kPa ETSI 300 019-2-3 |
| Ground | Floating ground |
| Radio number | 3 |
| MIMO spatial streams | Radio 0 (2.4 GHz): 2x2 Radio 1 (5 GHz): 2x2 Radio 2 (5 GHz): 4x4 |
| Wi-Fi standard | 2.4G: 802.11b/g/n/ax 5G: 802.11a/n/ac/ac Wave 2/ax |
| Radio interface | Built-in smart antennas |
| Antenna gain | 2.4G: 4 dBi/chain (peak), 2 dBi (combined gain) 5G: 5 dBi/chain (peak value), 3 dBi (combined gain) BLE: 4 dBi |
| Maximum transmit power | 2.4G: 22 dBm/chain, 25 dBm (combined power) 5G: 20 dBm/chain, 23 dBm (combined power) 5G: 20 dBm/chain, 26 dBm (combined power) BLE: <10 dBm |
