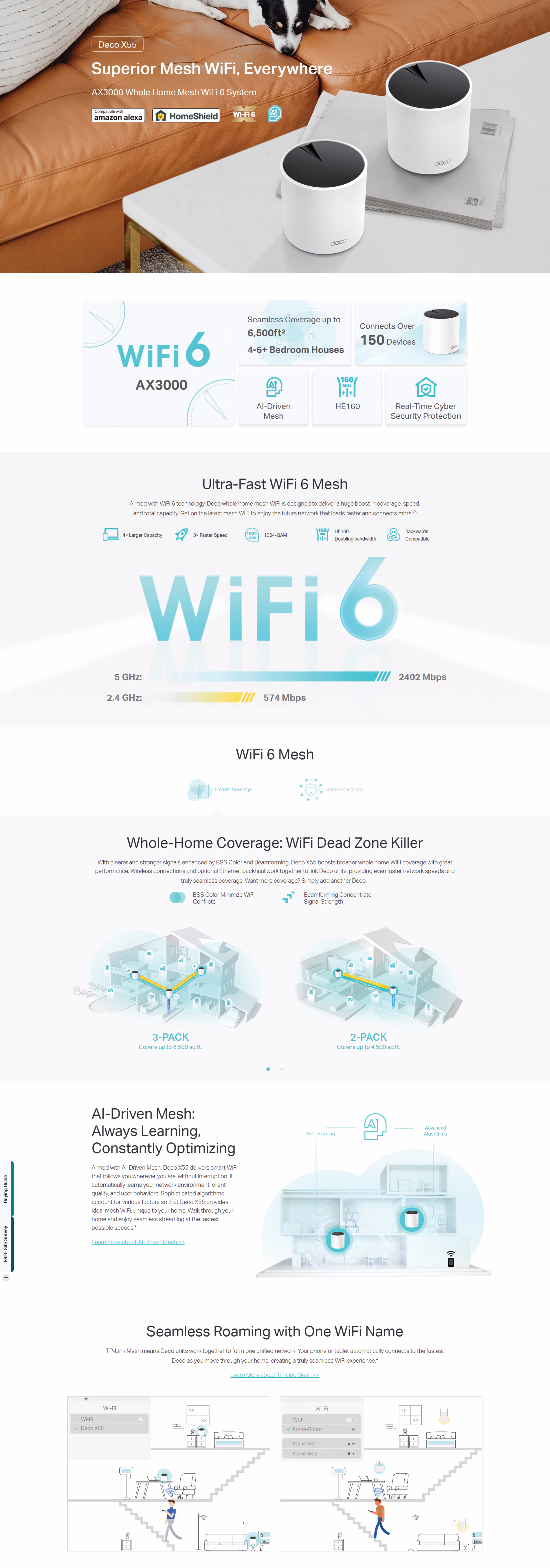

Model & Classification | TP-Link Deco X55 (3-Pack) | Whole Home Mesh Wi-Fi 6 System System Scalability: Designed for 4–6+ Bedroom Homes |
Wi-Fi 6 Speeds & Throughput | Aggregate Wireless Class: AX3000 (Up to 2,976 Mbps total bandwidth) 5 GHz Band: Up to 2,402 Mbps (802.11ax, HE160) 2.4 GHz Band: Up to 574 Mbps (802.11ax) Operating Modes: Wireless Router Mode & Access Point (AP) Mode |
Wireless Architecture & Mesh RF | Mesh Technology: TP-Link AI-Driven Mesh (Intelligent self-learning roaming algorithms) Backhaul Flexibility: Wireless Mesh Backhaul & Ethernet Backhaul supported Antenna Array: 2× Internal High-Gain Antennas per unit with Beamforming Streams & Optimization: 4 Spatial Streams, 2×2 MU-MIMO, OFDMA, Node/Band Connection Preference |
Hardware Interfaces (Per Unit) | Ethernet Ports: 3× Gigabit (10/100/1000 Mbps) RJ45 Ports per unit (9× Gigabit ports total across 3-pack) Port Sensing: Automatic WAN/LAN Auto-Sensing (No dedicated WAN port required) Controls: Integrated Hardware Reset Button |
Network Security & VPN Ecosystem | Wireless Encryption: WPA-Personal, WPA2-Personal, WPA3-Personal Built-in VPN Server: OpenVPN Server, PPTP VPN Server, L2TP VPN Server Built-in VPN Client: OpenVPN Client, PPTP VPN Client, L2TP VPN Client TP-Link HomeShield Security: Real-Time IoT Protection, Malicious Site Blocker, Intrusion Prevention System (IPS), DDoS Attack Defense, Home Network Scanner Network Isolation: Dedicated IoT Network with Device Isolation, SPI Firewall, Access Control, and Guest Networks (1× 2.4 GHz, 1× 5 GHz) |
Software, Smart Home & QoS | Smart Device Integration: Native Tapo & Kasa smart home onboarding Parental Controls: HomeShield custom profiles, content filter library, family time, bedtime/off-time schedules, time rewards, internet pause, and usage reports Traffic & Routing: IPv4 / IPv6, HomeShield QoS (QoS by Device), Static Routing, Port Forwarding, UPnP, IGMP Proxy/Snooping IPTV bridge with Tag VLAN Setup & Maintenance: TP-Link Deco App (iOS/Android), OTA Firmware Upgrades, Reboot Schedule support, DDNS (TP-Link ID) |
RF Output Power (Test Data) | Transmit Power (CE): < 20 dBm (2.4 GHz) | < 23 dBm (5 GHz) Transmit Power (FCC): < 30 dBm (2.4 GHz) | < 30 dBm (5 GHz) |
Physical Dimensions & Environmental | Dimensions per Unit (W × D × H): 110 × 110 × 114 mm (4.33 × 4.33 × 4.49 in) Operating Temperature: 0 °C to 40 °C (32 °F to 104 °F) Storage Temperature: -40 °C to 70 °C (-40 °F to 158 °F) Operating Humidity: 10% to 90% RH (non-condensing) |
Certifications, Compatibility & Contents | Certifications: CE, FCC, RoHS, RCM Deco App Compatibility: Android 5.0 or later, iOS 9.0 or later Package Contents (3-Pack): 3× Deco X55 Units, 3× AC Power Adapters, 1× RJ-45 Ethernet Cable, 1× Quick Installation Guide |
