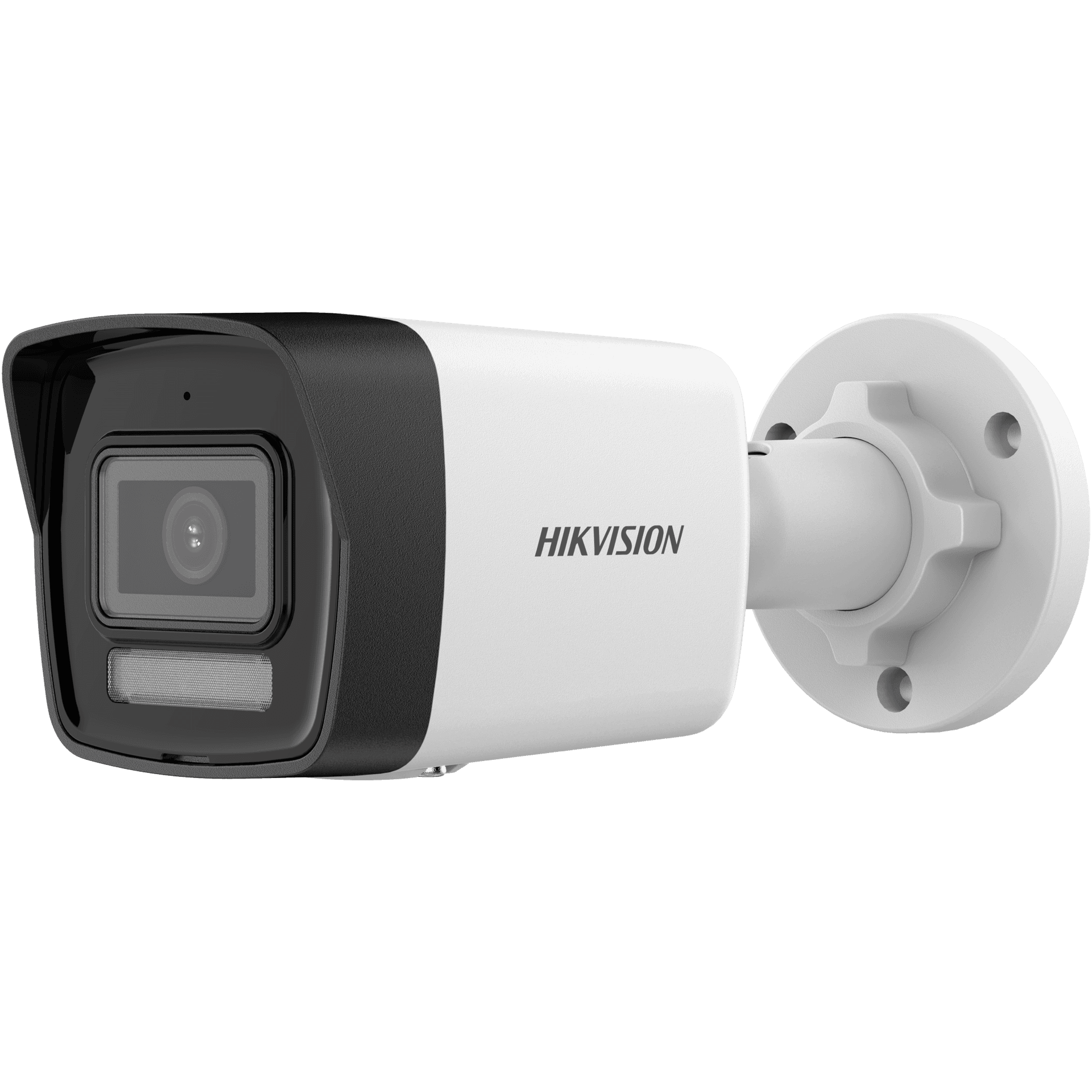

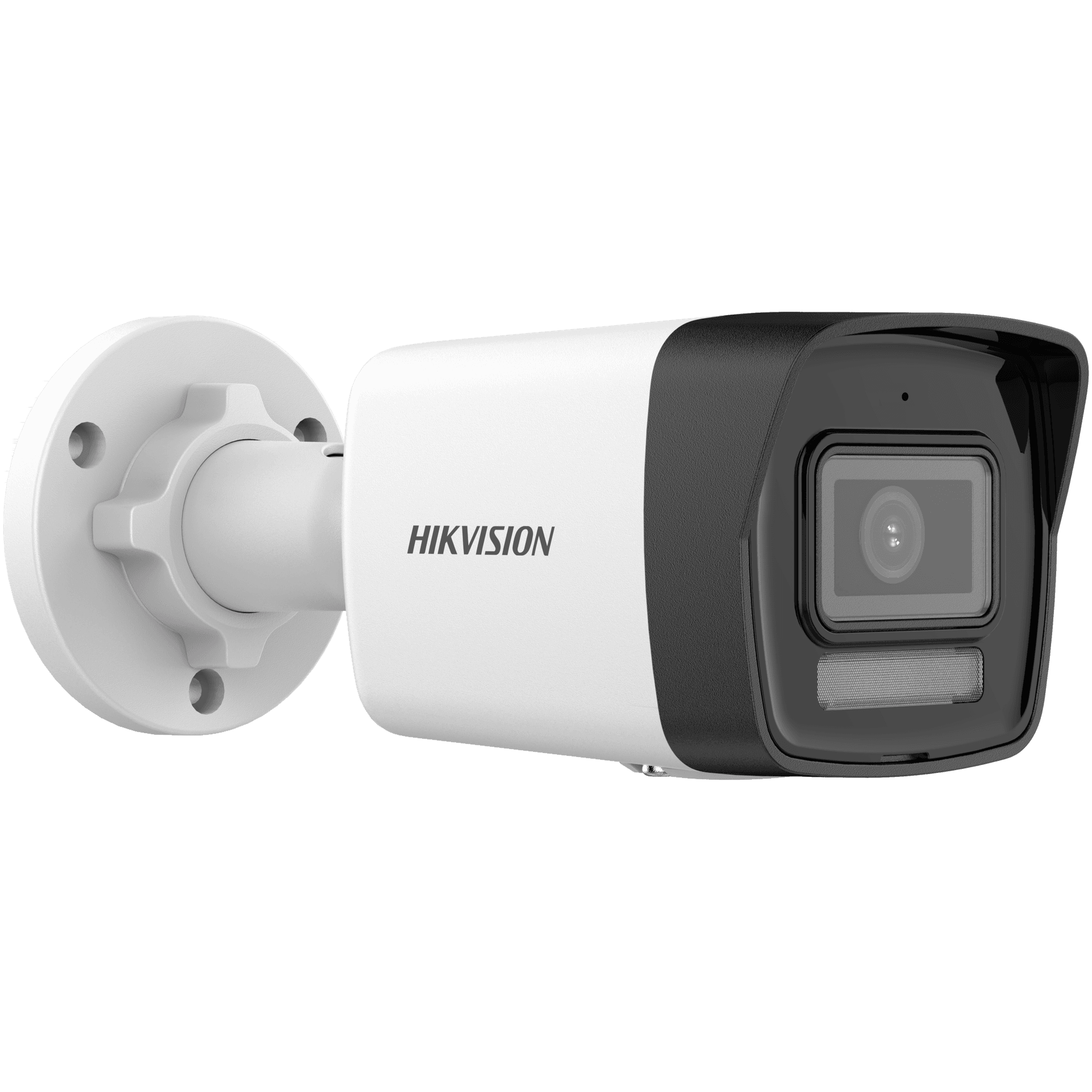

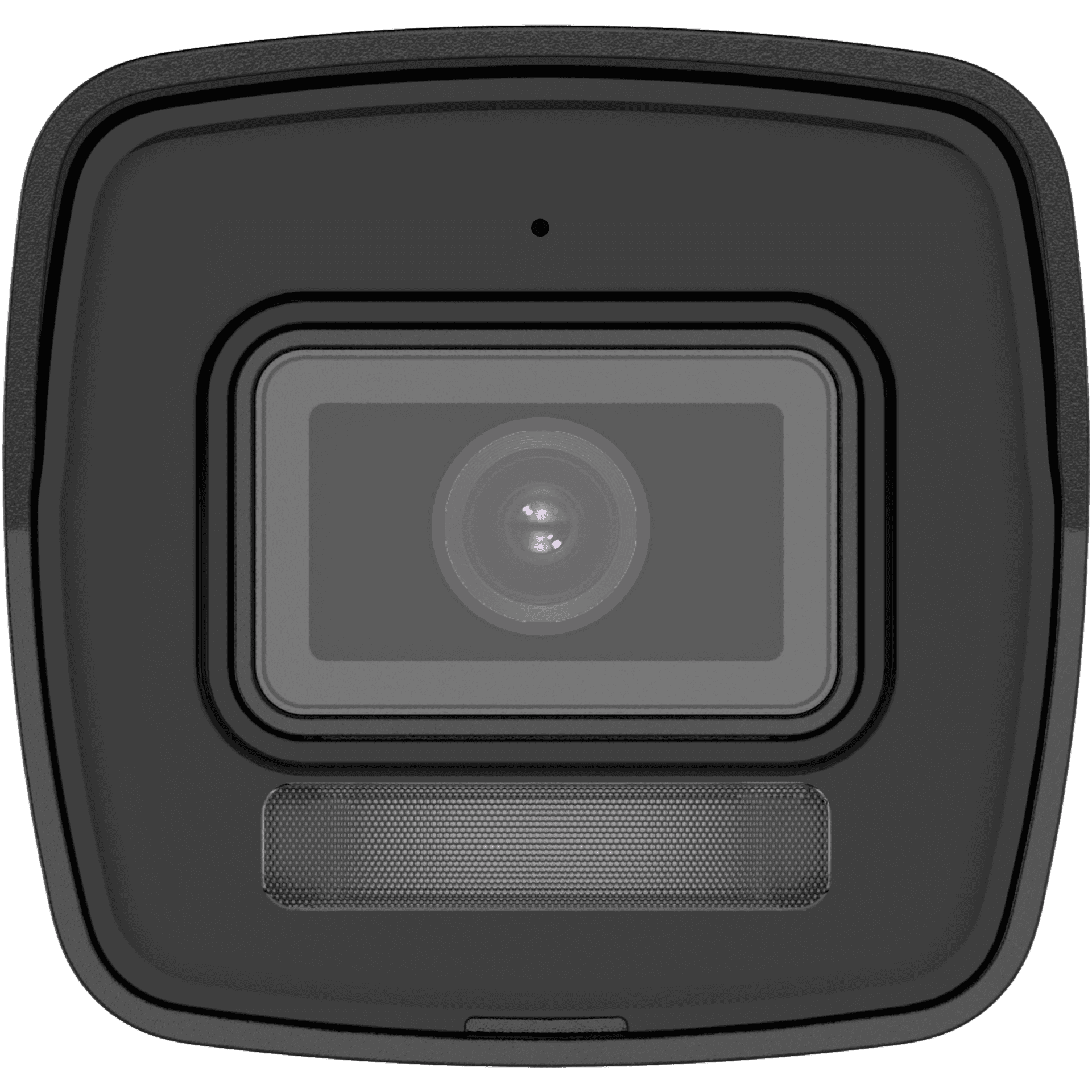

Hikvision DS-2CD1063G2-LIU 6MP Smart Hybrid Light Fixed Bullet IP Camera, Human/Vehicle Detection, Built-in Mic, IP67
Model :
SKU : HIKVIS DS-2CD1063G2-LIU 6
About this item
Description
Intelligent Night Surveillance: Hikvision DS-2CD1063G2-LIU(F) Hybrid Light Camera
The Hikvision DS-2CD1063G2-LIU(F) delivers superior clarity and smart functionality, making it an ideal choice for residential, small business, and commercial security applications. Its innovative lighting and AI capabilities ensure highly effective 24/7 monitoring.
Smart Hybrid Light Technology:
- Adaptive Illumination: The camera intelligently switches between three modes:
- IR Mode: Discreet black and white night vision up to 30m when no event is detected.
- White Light Mode: Full-color imaging (up to 20m) for 24/7 color video (optional constant mode).
Smart Mode: Automatically activates the white light for full-color video capture only when a Human or Vehicle is detected, deterring intruders and reducing light pollution.
- High Resolution Imaging: Captures high-quality video with a maximum resolution of 6 MP (3200 x 1800) at 20 fps, ensuring clear and detailed evidence.
Deep Learning AI for Accurate Detection:
- Human and Vehicle Detection: Utilizes advanced deep learning algorithms to distinguish between people, vehicles, and irrelevant movements (like rain, leaves, or animals), dramatically improving alert accuracy and event search efficiency.
Motion Detection 2.0: Enhanced motion detection triggers alarms only for categorized targets, improving the reliability of the security system.
Audio, Storage, and Durability:
- Built-in Microphone: The "-U" designation indicates a built-in microphone, allowing for high-quality audio recording and real-time audio monitoring (Mono sound with Environment Noise Filtering).
- Efficient Compression: H.265+ video compression technology reduces required bandwidth and storage consumption by up to 75% compared to H.264, without sacrificing image quality.
- On-Board Storage: The "-F" designation includes a microSD/SDHC/SDXC card slot supporting up to 256 GB (card optional) for local recording and data redundancy.
- All-Weather Resilience: Features an IP67 rating, providing excellent protection against water and dust, suitable for extreme outdoor temperatures (Operating Conditions: -30°C to 60°C).
Specification
| Image Sensor | 1/2.4" Progressive Scan CMOS |
| Max. Resolution | 3200 × 1800 |
| Min. Illumination | Color: 0.005 Lux @ (F1.6, AGC ON), B/W: 0 Lux with IR |
| Shutter Time | 1/3 s to 1/100,000 s |
| Day & Night | IR cut filter |
| Angle Adjustment | Pan: 0° to 360°, Tilt: 0° to 90°, Rotate: 0° to 360° |
| Lens Type | Fixed focal lens, 2.8 mm / 4 mm optional |
| Focal Length & FOV | 2.8 mm: H 105°, V 55°, D 127° 4 mm: H 78°, V 38°, D 96° |
| Lens Mount | M12 |
| Aperture | F1.6 |
| DORI | 2.8 mm: D 76 m, O 30 m, R 15 m, I 7 m 4 mm: D 115 m, O 45 m, R 23 m, I 11 m |
| Supplement Light | IR & White Light, up to 30 m, Smart Supplement Light supported |
| IR Wavelength | 850 nm |
| Video Compression | Main stream: H.265+/H.265/H.264+/H.264 Sub-stream: H.265/H.264/MJPEG |
| Frame Rate | Up to 20 fps (3200 × 1800 and below) |
| Video Bit Rate | 32 Kbps to 16 Mbps |
| Audio | Mono, built-in microphone, G.711/G.722.1/G.726/MP2L2/PCM/AAC-LC |
| Network Interface | 1 × RJ45 10/100 Mbps Ethernet |
| On-Board Storage | MicroSD/SDHC/SDXC up to 256 GB (-F model) |
| Power Supply | 12 VDC ±25%, PoE IEEE 802.3af, Class 3 |
| Power Consumption | Max. 6.5 W (PoE) |
| Material | Metal & Plastic |
| Protection | IP67 |
| Dimensions | 170.8 mm × 66 mm × 69.1 mm |
| Weight | Approx. 285 g |
