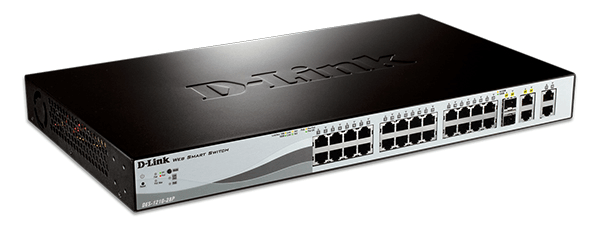

D-Link DES-1210-28P, 24-Port 10/100 PoE Switch, with (2) 10/100/1000BASE-T Ports and 2 Combo SFP Slots
Model :
SKU : D-Link DES-1210-28P
0
Inclusive of VAT
Delivery to
FREE scheduled delivery as soon as Loading...
Sold and shipped by: Adarc computers
1
About this item
Description
D-Link DES-1210 Specifications
| Number of Ports | 24 PoE 10/100Mbps 2 10/100/1000BASE-T 2 combo 10/100/1000BASE-T/SFP |
| Port Standards & Functions |
IEEE 802.3 10BASE-T Ethernet (twisted-pair copper) IEEE 802.3u 100BASE-TX Fast Ethernet (twisted-pair copper) IEEE 802.3ab 1000BASE-T Gigabit Ethernet IEEE 802.3z Gigabit Ethernet (fiber) ANSI/IEEE 802.3 (twisted-pair copper) Auto-negotiation IEEE 802.3x Flow Control |
| Network Cables | UTP Cat.5, Cat.5e (100m max.) EIA/TIA-568 100-ohm STP (100m max.) |
| Full/Half Duplex | Full/half duplex for 10/100Mbps speeds Full duplex for Gigabit speed |
| Media Interface Exchange | Auto MDI/MDI-X adjustment for all twisted pair ports |
| Transmission Method | Store-and-forward |
| MAC Address Table | - |
| MAC Address Update | Up to 256 static MAC entries Enable/disable auto-learning of MAC addresses |
| Maximum 64 bytes packet forwarding rate | 9.5Mpps |
| RAM Buffer | 512KB per device |
| AC Input | 100 to 240 VAC 50/60 internal universal power supply |
| PoE Standard | 802.3af 802.3at |
| PoE Capable Ports | Port 1 to 4: 15.4W or 30W per port Port 5 to 24: 15.4W per port |
| Maximum Power Consumption | 254 N (Power On) 26.4 W (Power Off) |
| Fan Quantity | 3 Smart Fans |
| Acoustics | 53.9 dB |
| Heat Dissipation | 866.65 BTU/hr |
| Temperature | Operating: 32?? to 104??F (0?? to 40??C) Storage: 14?? to 158?? F (-10?? to 70?? C) |
| Humidity | Operating: 10% to 95% Non-condensing Storage: 5% to 95% Non-condensing |
| Dimensions | 17.4in x 9.8in x 1.7in (440mm x 250mm x 44mm) 19-inch standard rack mounting width, 1U height |
| Weight | 7.27 lbs (3.3kg) |
| MTBF | 197.343 hours |
| Diagnostic LEDs | Power (per device) Link/Activity/Speed (per 10/100/1000Mbps port, per 10/100Mbps port, per SFP port) |
| Emission (EMI) | FCC Class A, CE Class A, VCCI Class A, C-Tick |
| Safety | cUL, LVD |
Specification
D-Link DES-1210 Specifications
| Number of Ports | 24 PoE 10/100Mbps 2 10/100/1000BASE-T 2 combo 10/100/1000BASE-T/SFP |
| Port Standards & Functions |
IEEE 802.3 10BASE-T Ethernet (twisted-pair copper) IEEE 802.3u 100BASE-TX Fast Ethernet (twisted-pair copper) IEEE 802.3ab 1000BASE-T Gigabit Ethernet IEEE 802.3z Gigabit Ethernet (fiber) ANSI/IEEE 802.3 (twisted-pair copper) Auto-negotiation IEEE 802.3x Flow Control |
| Network Cables | UTP Cat.5, Cat.5e (100m max.) EIA/TIA-568 100-ohm STP (100m max.) |
| Full/Half Duplex | Full/half duplex for 10/100Mbps speeds Full duplex for Gigabit speed |
| Media Interface Exchange | Auto MDI/MDI-X adjustment for all twisted pair ports |
| Transmission Method | Store-and-forward |
| MAC Address Table | - |
| MAC Address Update | Up to 256 static MAC entries Enable/disable auto-learning of MAC addresses |
| Maximum 64 bytes packet forwarding rate | 9.5Mpps |
| RAM Buffer | 512KB per device |
| AC Input | 100 to 240 VAC 50/60 internal universal power supply |
| PoE Standard | 802.3af 802.3at |
| PoE Capable Ports | Port 1 to 4: 15.4W or 30W per port Port 5 to 24: 15.4W per port |
| Maximum Power Consumption | 254 N (Power On) 26.4 W (Power Off) |
| Fan Quantity | 3 Smart Fans |
| Acoustics | 53.9 dB |
| Heat Dissipation | 866.65 BTU/hr |
| Temperature | Operating: 32?? to 104??F (0?? to 40??C) Storage: 14?? to 158?? F (-10?? to 70?? C) |
| Humidity | Operating: 10% to 95% Non-condensing Storage: 5% to 95% Non-condensing |
| Dimensions | 17.4in x 9.8in x 1.7in (440mm x 250mm x 44mm) 19-inch standard rack mounting width, 1U height |
| Weight | 7.27 lbs (3.3kg) |
| MTBF | 197.343 hours |
| Diagnostic LEDs | Power (per device) Link/Activity/Speed (per 10/100/1000Mbps port, per 10/100Mbps port, per SFP port) |
| Emission (EMI) | FCC Class A, CE Class A, VCCI Class A, C-Tick |
| Safety | cUL, LVD |
