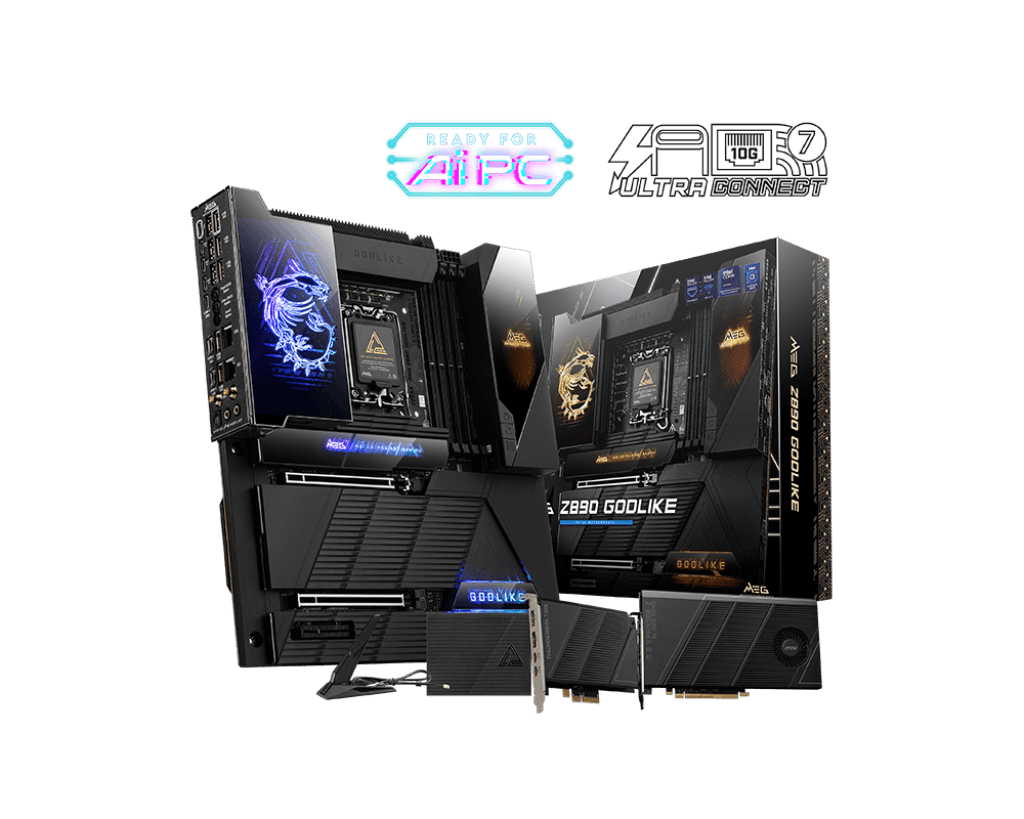

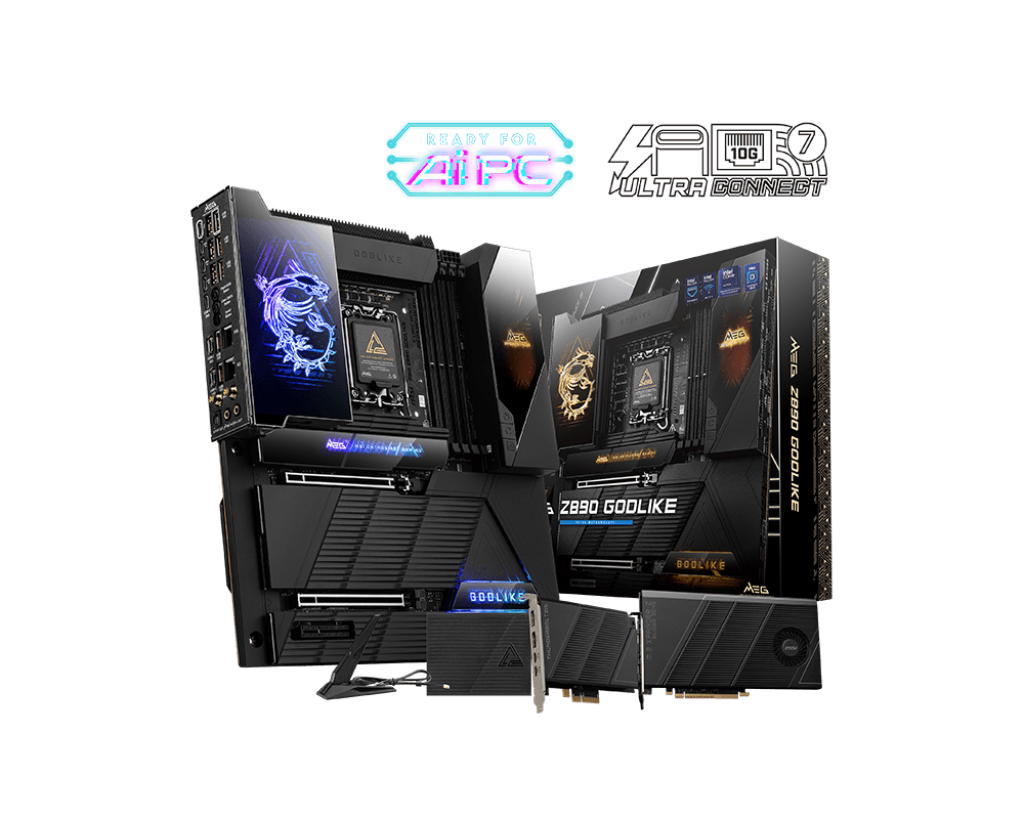

MSI MEG Z890 GODLIKE LGA 1851 E-ATX Motherboard, Intel Z890 Chipset, 4x DDR5 UDIMM Slots, Up to 256GB Max Memory, 2x PCI-E x16, 8x M.2 Slots, Wi-Fi & BT Connectivity | 911-7E21-002

Chipset & CPU

Chipset: INTEL Z890

CPU Support: Intel?? Core??? Ultra Processors (Series 2)

Socket: LGA 1851

Memory

Slots: 4x DDR5 UDIMM

Maximum Capacity: 256GB

Memory Speed: 9200 - 6400 (OC) MT/s / 6400 - 4800 (JEDEC) MT/s

Max Overclocking Frequency:

• 1DPC 1R: Up to 9200+ MT/s
• 1DPC 2R: Up to 7200+ MT/s
• 2DPC 1R: Up to 6400+ MT/s
• 2DPC 2R: Up to 5600+ MT/s

Supported Features:

• Intel?? POR Speed and JEDEC Speed
• Memory Overclocking and Intel?? XMP 3.0
• Dual-Controller Dual-Channel mode
• Non-ECC, Un-buffered memory
• CUDIMM

Onboard Graphics

Ports: 2x Type-C DisplayPort

Thunderbolt??? 4: Supports DisplayPort 2.1 with UHBR20 over USB Type-C

Max Resolution: 4K@120Hz / 8K@60Hz*

* Available only on processors featuring integrated graphics.

Expansion Slots

PCIe Slots:

• 2x PCI-E x16
• 1x PCI-E x4

Lane Configurations:

• PCI_E1 Gen PCIe 5.0: Up to x16 (From CPU)
• PCI_E2 Gen PCIe 5.0: Up to x8 (From CPU)
• PCI_E3 Gen PCIe 4.0: Up to x4 (From Chipset)

Audio

Codec: Realtek?? ALC4082 + ESS9219Q Combo DAC/HPA

Channels: 7.1-Channel USB High-Performance Audio

Features:

• Supports S/PDIF output
• 32-Bit/384 kHz playback on front panel

Storage

M.2 Slots: 8x M.2

• M.2_1: PCIe 5.0 x4 (From CPU)
• M.2_2: PCIe 4.0 x4 (From CPU)
• M.2_3: PCIe 4.0 x4 (From Chipset)
• M.2_4: PCIe 4.0 x4 (From Chipset, 22110/2280)
• M.2_5: PCIe 4.0 x4 / SATA (From Chipset)
• M.2_6: PCIe 5.0 x4 + PCIe 4.0 x4 (From CPU+Chipset)

SATA: 4x SATA 6G

Additional M.2 via Expander:

• M.2_1: PCIe 5.0 x4 (via M.2 XPANDER-Z SLIDER GEN5)
• M.2_2: PCIe 5.0 x4 (via M.2 XPANDER-Z SLIDER GEN5)

RAID Support

• RAID 0, 1, 5, 10 for SATA storage
• RAID 0, 1, 5, 10 for M.2 NVMe storage

Thunderbolt & USB

Thunderbolt:

• 1x Thunderbolt 4 (Rear)
• 1x Thunderbolt 4 (Front)
• Up to 40Gbps (Thunderbolt devices)
• Up to 20Gbps (USB4 devices)
• Up to 10Gbps (USB 3.2 devices)
• Supports up to 8K display

USB Ports:

• 4x USB 2.0 (Front)
• 4x USB 5Gbps Type A (Front)
• 8x USB 10Gbps Type A (Rear)
• 5x USB 10Gbps Type C (Rear)
• 1x USB 20Gbps Type C (Rear)
• 1x USB 20Gbps Type C (Front)

LAN

• 1x Marvell?? AQC113CS 10Gbps LAN
• 1x Intel?? Killer??? E5000B 5G LAN

Internal I/O

• 1x Thunderbolt5 card connector (JTBT5)
• 1x Power Connector (ATX_PWR)
• 2x Power Connector (CPU_PWR)
• 1x Power Connector (PCIE_PWR 8pin)
• 1x Front Type-C Quick Charge Connector (PD_PWR1)
• 1x CPU Fan
• 2x Combo Fan (Pump_Sys Fan)
• 7x System Fan
• 1x EZ Conn-header (JAF_2)
• 2x Front Panel (JFP)
• 1x Chassis Intrusion (JCI)
• 1x Water Flow Connector
• 1x Slow Mode Booting Jumper (JSLOW)
• 1x Front Audio (JAUD)
• 2x Thermal Sensor Connectors (T_SEN)
• 1x Tuning Controller Connector (JDASH)
• 3x Addressable V2 RGB LED Connectors (JARGB_V2)
• 1x RGB LED Connector (JRGB)
• 1x TPM Pin Header (Supports TPM 2.0)

Wireless LAN & Bluetooth

Wi-Fi: Intel?? Killer??? BE1750x Wi-Fi 7

Features:

• MU-MIMO TX/RX, 2.4GHz / 5GHz / 6GHz (320MHz) up to 5.8Gbps
• Supports 802.11 a/b/g/n/ac/ax/be

Bluetooth: 5.4, MLO, 4KQAM

LED Features

• 1x Dynamic Dashboard III
• 1x EZ Digit Debug LED
• 1x EZ LED Control Switch
