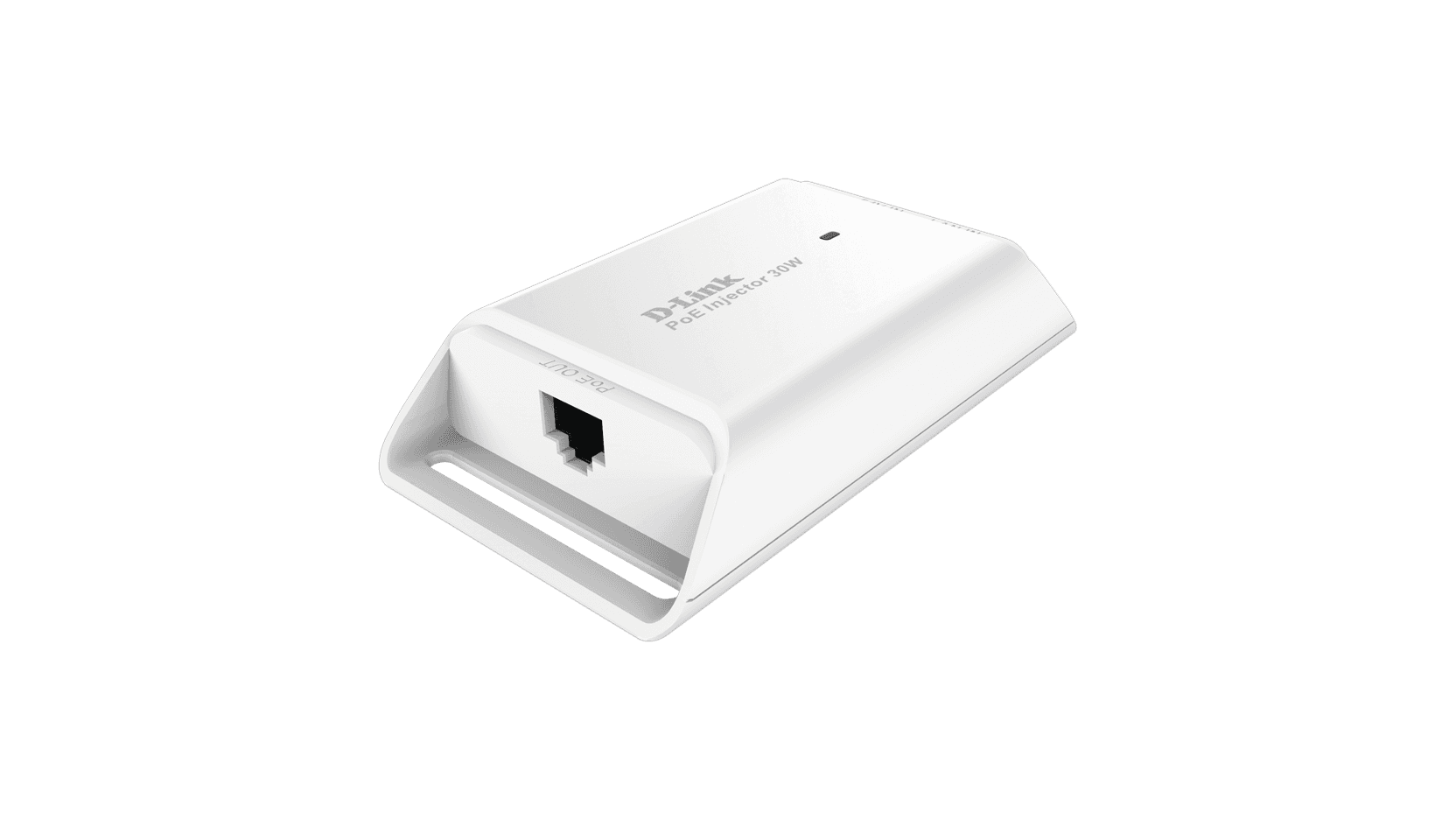

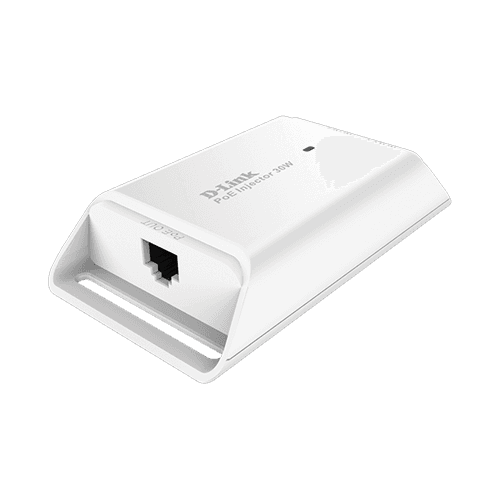

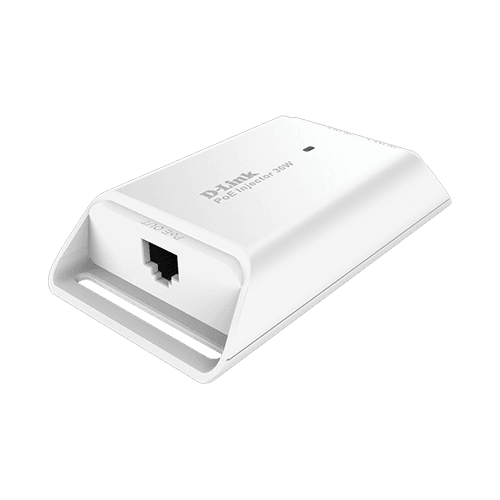

D-link Gigabit PoE+ Injector DPE-301GI, 802.3at PoE, Fanless, up to 30 watts
Model :
SKU : PI-DLINK DPE-301GI
Description
D-link Gigabit PoE+ Injector DPE-301GI, 802.3at PoE, Fanless, up to 30 watts
| Ports |

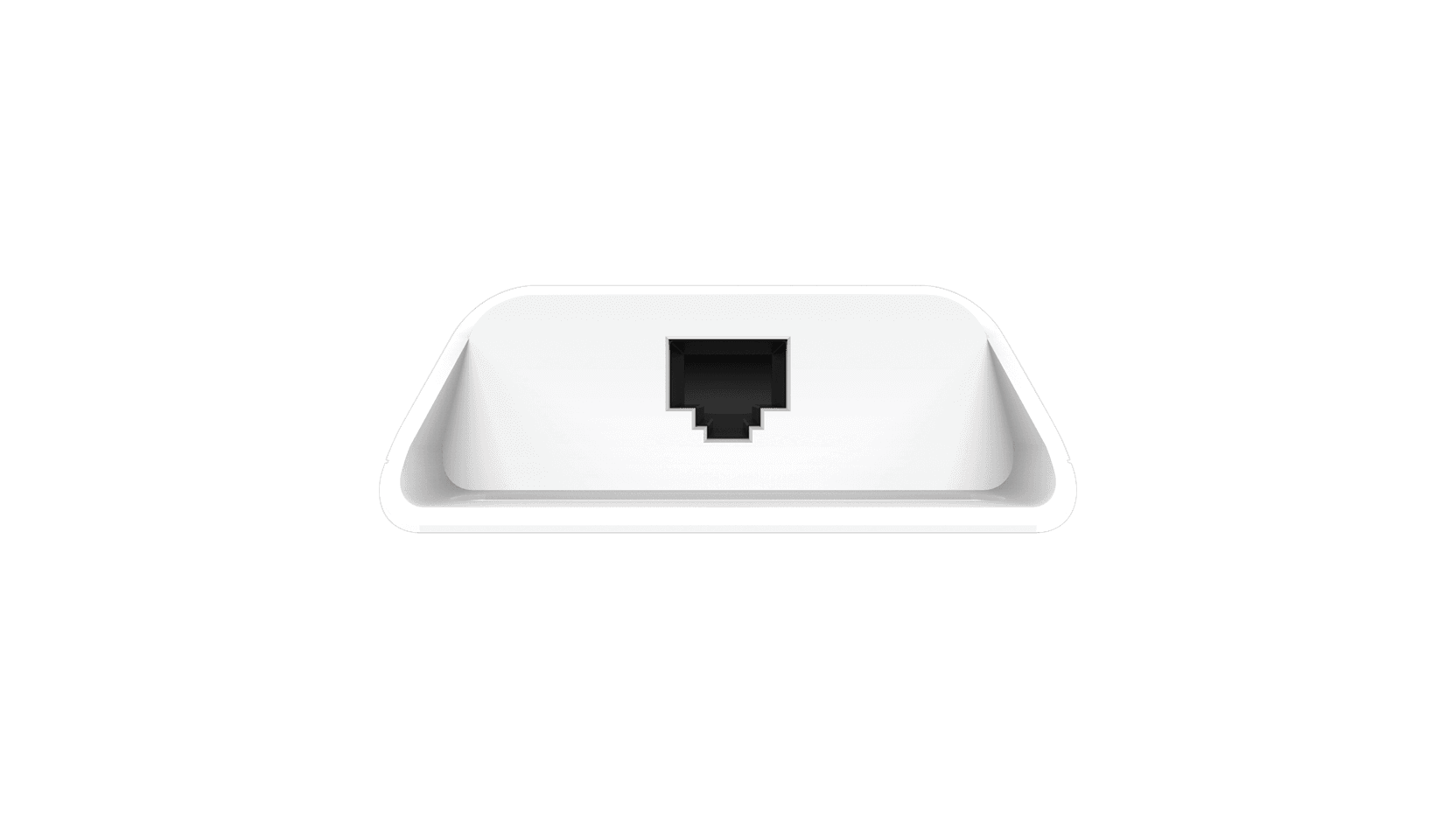

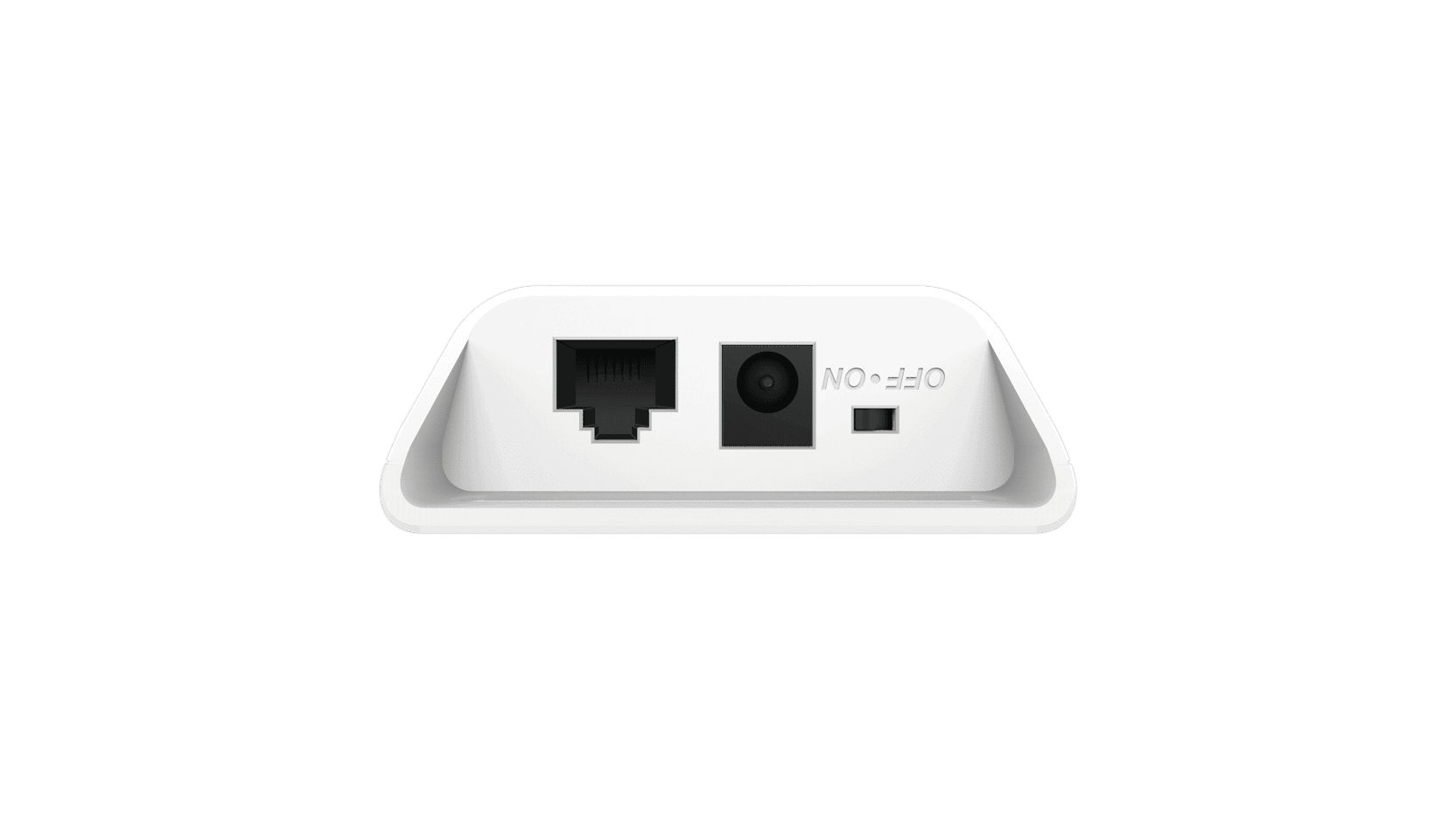

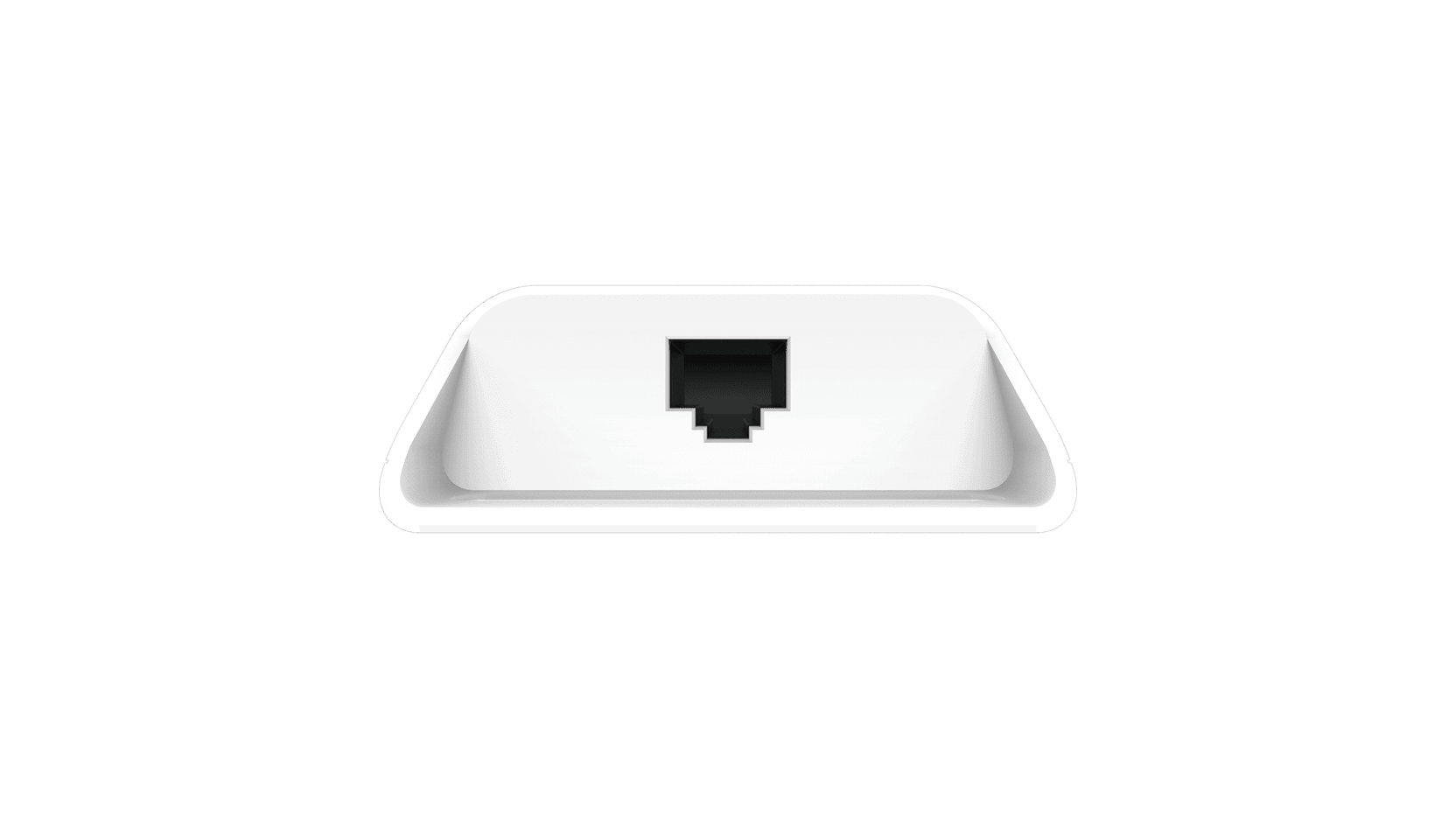

PoE + Data Port (out) ??? Supports half/full-duplex operation ??? 10/100/1000BASE-T port ??? IEEE 802.3 compliant ??? IEEE 802.3u compliant ??? IEEE 802.3at compliant ??? IEEE 802.3af compliant ??? IEEE 802.3ab compliant Data Port (in) ??? Supports half/full-duplex operation ??? IEEE 802.3 compliant ??? IEEE 802.3u compliant ??? IEEE 802.3ab compliant ??? 10/100/1000BASE-T port |
| LED Indicators |

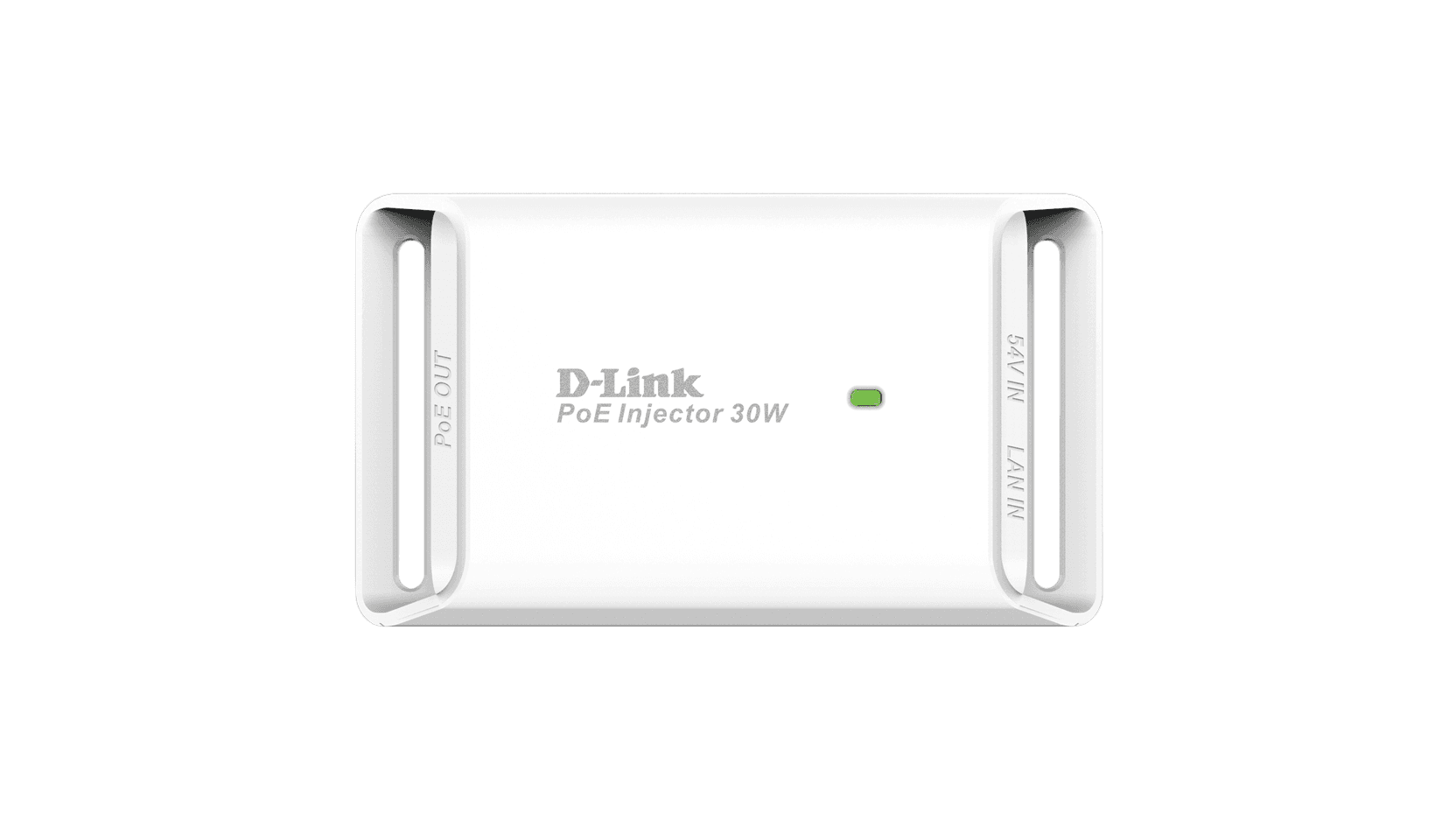

??? Blue: Power On ??? Green: Link On |
| Physical |
Dimensions (L x W x H) ??? 109.8 x 62.2 x 24.5 mm Weight ??? 65 grams |
| Power |
Power Adapter: 55 V / 0.6 A Max Consumption: 32.4 watts Output: 0.6 A at 55 V |
| Temperature |
Operating: -10 to 50 ??C Storage: -30 to 70 ??C |
| Humidity |
Operating: 5% to 95% non-condensing Storage: 5% to 95% non-condensing |
| Certifications |
??? CE ??? FCC ??? VCCI ??? RCM ??? RoHS ??? BSM |
