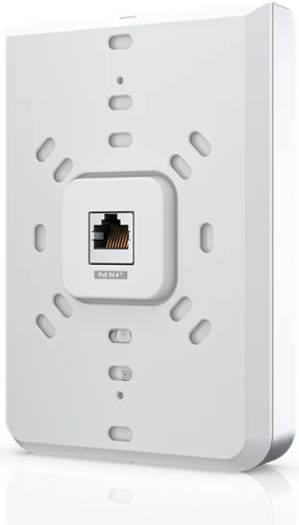

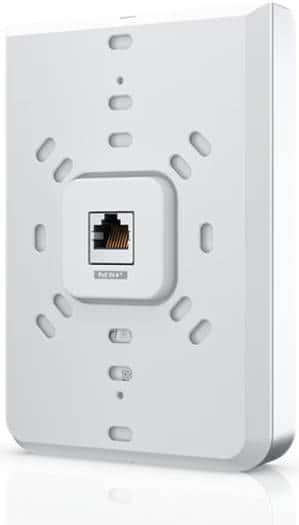

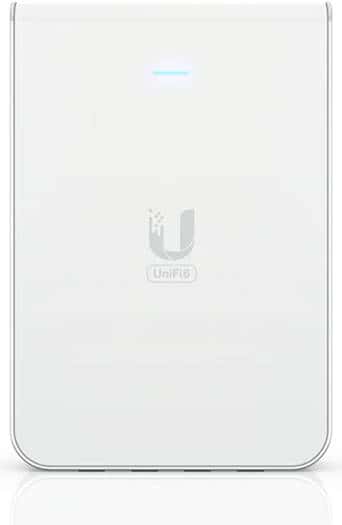

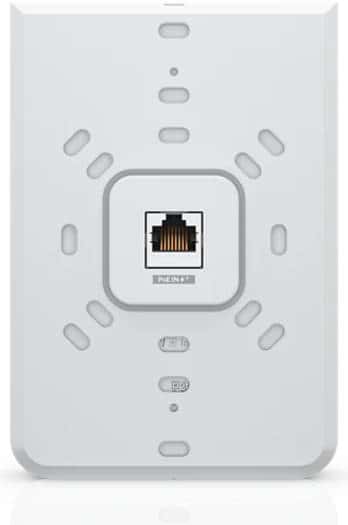

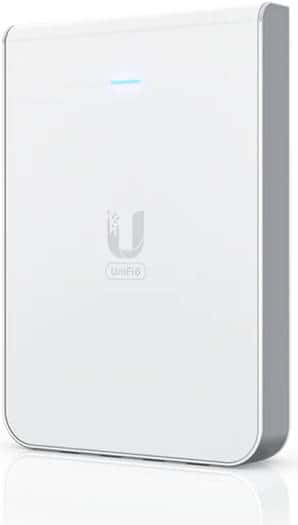

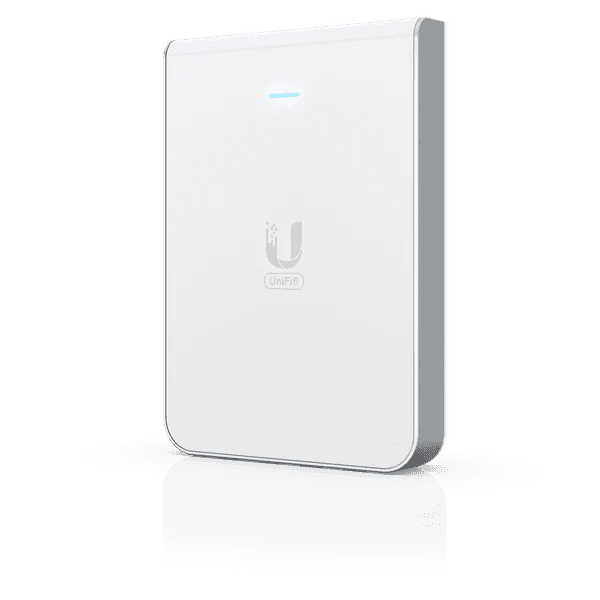

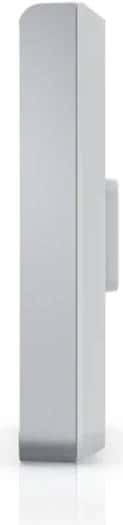

Ubiquiti Networks UniFi U6 In-Wall AP & 4-Port PoE Gigabit Switch: 5.3 Gb/s Throughput, 1 x Gigabit PoE Uplink, In-Wall Mount, White | U6-IW
Model :
SKU : WAP-UNIFI U6-IW IN-WALL
About this item
0
Inclusive of VAT
Delivery to
FREE scheduled delivery as soon as Loading...
Sold and shipped by: Adarc computers
1
About this item
Description
table { border-collapse: collapse; width: 100%; } tr { border-bottom: 1px solid rgb(222, 226, 230); } td { padding: 8px; margin: 0; } td:first-child { font-weight: bold; color: #333; }
Ubiquiti Networks UniFi U6 In-Wall AP & 4-Port PoE Gigabit Switch: 5.3 Gb/s Throughput, 1 x Gigabit PoE Uplink, In-Wall Mount, White | U6-IW
| Dimensions | 139.7 x 96 x 31.2 mm (5.5 x 3.8 x 1.3") |
| Weight | 460 g (1 lb) |
| Enclosure material | Plastic, aluminum |
| Mount material | Aluminum |

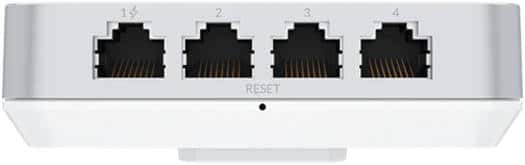

| Networking interface | (1) Data-in: GbE RJ45 port (4) Data-out: GbE RJ45 ports |
| Management interface | Ethernet Bluetooth |
| PoE interface | (1) PoE in (PoE output not used) (1) PoE out (Requires a PoE+ switch) |
| Power method | PoE PoE+ (Required for PoE output) |
| Power supply | UniFi PoE switch 48V, 0.5A PoE adapter (Optional) |
| Max. power consumption | 13.5W (Excluding PoE output) |
| Max PoE wattage per port by PSE | 15.4W* *Requires a PoE+ switch |
| Voltage range PoE mode | 44???57V DC |
| Max. TX power | 2.4 GHz: 22 dBm 5 GHz: 26 dBm 6 GHz: - |
| MIMO | 2.4 GHz: 2 x 2 (UL MU-MIMO) 5 GHz: 4 x 4 (DL/UL MU-MIMO) 6 GHz: - |
| Throughput rate | 2.4 GHz: 573.5 Mbps 5 GHz: 4.8 Gbps 6 GHz: - |
| Antenna gain | 2.4 GHz: 5 dBi 5 GHz: 5.9 dBi 6 GHz: - |
| LED | White/blue |
| Button | Factory reset |
| Mounting | Wall (Included) |
| Operating temperature | -30 to 60?? C (-22 to 140?? F) |
| Operating humidity | 5 to 95% noncondensing |
| Certifications | CE, FCC, IC |
| WiFi standards | 802.11a/b/g/n/ac/ax |
| Wireless security | WPA-PSK, WPA-Enterprise (WPA/WPA2/WPA3) |
| BSSID | 8 per radio |
| VLAN | 802.1Q |
| Advanced QoS | Per-user rate limiting |
| Guest traffic isolation | Supported |
| Concurrent clients | 300+ |
| Zero-wait DFS | Yes* *Supported with upcoming firmware versions. |
| Supported Data Rates | 802.11a: 6, 9, 12, 18, 24, 36, 48, 54 Mbps 802.11b: 1, 2, 5.5, 11 Mbps 802.11g: 6, 9, 12, 18, 24, 36, 48, 54 Mbps 802.11n (WiFi 4): 6.5 Mbps to 600 Mbps (MCS0 - MCS31, HT 20/40) 802.11ac (WiFi 5): 6.5 Mbps to 3.4 Gbps (MCS0 - MCS9 NSS1/2/3/4, VHT 20/40/80/160) 802.11ax (WiFi 6): 7.3 Mbps to 4.8 Gbps (MCS0 - MCS11 NSS1/2/3/4, HE 20/40/80/160) |
| Application Requirements | UniFi Network Version 6.4.52 and later |
Specification
table { border-collapse: collapse; width: 100%; } tr { border-bottom: 1px solid rgb(222, 226, 230); } td { padding: 8px; margin: 0; } td:first-child { font-weight: bold; color: #333; }
Ubiquiti Networks UniFi U6 In-Wall AP & 4-Port PoE Gigabit Switch: 5.3 Gb/s Throughput, 1 x Gigabit PoE Uplink, In-Wall Mount, White | U6-IW
| Dimensions | 139.7 x 96 x 31.2 mm (5.5 x 3.8 x 1.3") |
| Weight | 460 g (1 lb) |
| Enclosure material | Plastic, aluminum |
| Mount material | Aluminum |
| Networking interface | (1) Data-in: GbE RJ45 port (4) Data-out: GbE RJ45 ports |
| Management interface | Ethernet Bluetooth |
| PoE interface | (1) PoE in (PoE output not used) (1) PoE out (Requires a PoE+ switch) |
| Power method | PoE PoE+ (Required for PoE output) |
| Power supply | UniFi PoE switch 48V, 0.5A PoE adapter (Optional) |
| Max. power consumption | 13.5W (Excluding PoE output) |
| Max PoE wattage per port by PSE | 15.4W* *Requires a PoE+ switch |
| Voltage range PoE mode | 44???57V DC |
| Max. TX power | 2.4 GHz: 22 dBm 5 GHz: 26 dBm 6 GHz: - |
| MIMO | 2.4 GHz: 2 x 2 (UL MU-MIMO) 5 GHz: 4 x 4 (DL/UL MU-MIMO) 6 GHz: - |
| Throughput rate | 2.4 GHz: 573.5 Mbps 5 GHz: 4.8 Gbps 6 GHz: - |
| Antenna gain | 2.4 GHz: 5 dBi 5 GHz: 5.9 dBi 6 GHz: - |
| LED | White/blue |
| Button | Factory reset |
| Mounting | Wall (Included) |
| Operating temperature | -30 to 60?? C (-22 to 140?? F) |
| Operating humidity | 5 to 95% noncondensing |
| Certifications | CE, FCC, IC |
| WiFi standards | 802.11a/b/g/n/ac/ax |
| Wireless security | WPA-PSK, WPA-Enterprise (WPA/WPA2/WPA3) |
| BSSID | 8 per radio |
| VLAN | 802.1Q |
| Advanced QoS | Per-user rate limiting |
| Guest traffic isolation | Supported |
| Concurrent clients | 300+ |
| Zero-wait DFS | Yes* *Supported with upcoming firmware versions. |
| Supported Data Rates | 802.11a: 6, 9, 12, 18, 24, 36, 48, 54 Mbps 802.11b: 1, 2, 5.5, 11 Mbps 802.11g: 6, 9, 12, 18, 24, 36, 48, 54 Mbps 802.11n (WiFi 4): 6.5 Mbps to 600 Mbps (MCS0 - MCS31, HT 20/40) 802.11ac (WiFi 5): 6.5 Mbps to 3.4 Gbps (MCS0 - MCS9 NSS1/2/3/4, VHT 20/40/80/160) 802.11ax (WiFi 6): 7.3 Mbps to 4.8 Gbps (MCS0 - MCS11 NSS1/2/3/4, HE 20/40/80/160) |
| Application Requirements | UniFi Network Version 6.4.52 and later |
